PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRS0050FF2DPTC RESET FUSE 32V 500MA RADIAL |
8,673 | - |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 500 mA | 1 A | 100 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
|
0ZRS0070FF2DPTC RESET FUSE 32V 700MA RADIAL |
9,947 | - |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 700 mA | 1.4 A | 100 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.201" (5.10mm) |
|

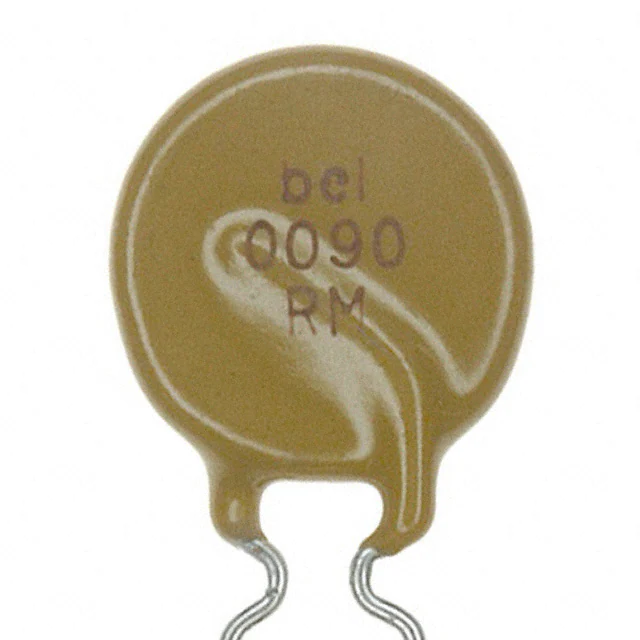

0ZRM0090FF2BPTC RESET FUSE 120V 900MA RADIAL |
4,535 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 900 mA | 1.8 A | 5 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.469" Dia x 0.150" T (11.90mm x 3.80mm) | 0.626" (15.90mm) | - | 0.201" (5.10mm) |
|
0ZRC0375FF2AFUSE RESETTABLE TH |
5,169 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
0ZCB0175FF2EPTC RESET FUSE 6V 1.75A 1210 |
2,863 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.75 A | 3.5 A | 100 A | 600 ms | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
0ZRP0375FF2APTC RESET FUSE 60V 3.75A RADIAL |
4,532 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.992" (25.20mm) | - | 0.402" (10.20mm) |
|
|
0ZRS0100FF2BPTC RESET FUSE 32V 1A RADIAL |
2,388 | - |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 1 A | 1.9 A | 100 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.201" (5.10mm) |
|
0ZRN0450FF1EPTC RESET FUSE 16V 4.5A RADIAL |
3,552 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.201" (5.10mm) |
|
0ZCC0160BF2CPTC RESET FUSE 16V 1.6A 1812 |
5,930 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
|
0ZCC0200FF2CPTC RESET FUSE 8V 2A 1812 |
5,907 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.047" (1.20mm) | - |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
