PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRS0300FF2BPTC RESET FUSE 32V 3A RADIAL |
6,877 | - |
|
Datasheet | Radial, Disc | 0ZRS | Tape & Reel (TR) | Active | Ceramic | 32V | 3 A | 6 A | 100 A | 5 s | 35 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.80mm) | 0.610" (15.50mm) | - | 0.201" (5.10mm) |
|
0ZRN0550FF2BPTC RESET FUSE 16V 5.5A RADIAL |
8,063 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|

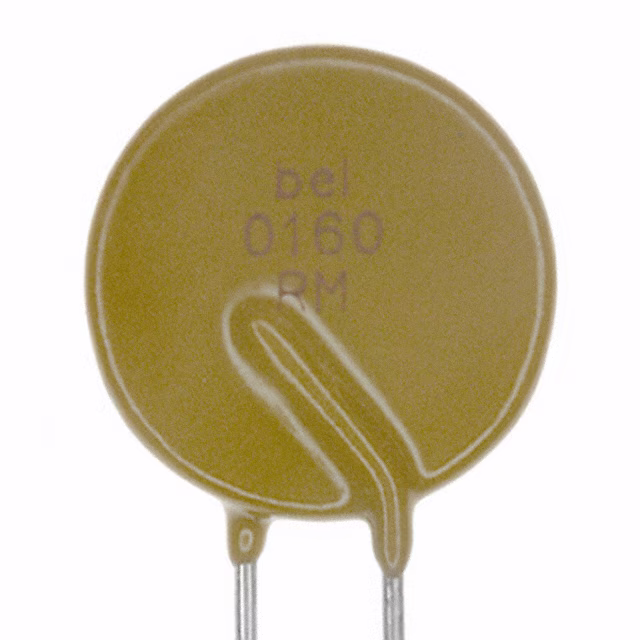

0ZRM0160FF1APTC RESET FUSE 120V 1.6A RADIAL |
3,845 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.6 A | 3.2 A | 12 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.161" T (17.50mm x 4.10mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
0ZRN0650FF1APTC RESET FUSE 16V 6.5A RADIAL |
2,463 | - |
|
Datasheet | Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
|
0ZCD0030FF2CPTC RESET FUSE 60V 300MA 2920 |
8,233 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCD0200FF2CPTC RESET FUSE 16V 2A 2920 |
9,942 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2 A | 4 A | 40 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|

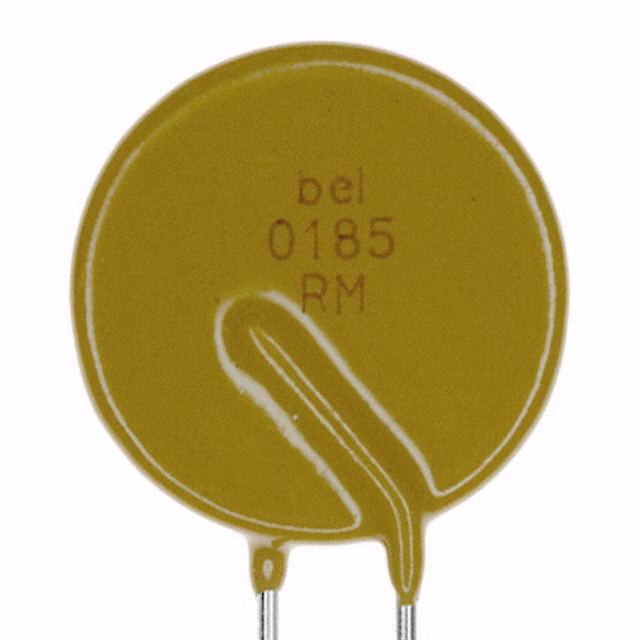

0ZRM0185FF1APTC RESET FUSE 120V 1.85A RADIAL |
7,818 | - |
|
Datasheet | Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.85 A | 3.7 A | 12 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.783" Dia x 0.161" T (19.90mm x 4.10mm) | 0.980" (24.90mm) | - | 0.201" (5.10mm) |
|
0ZCB0200FF2EPTC RESET FUSE 6V 2A 1210 |
5,420 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
|
0ZRN0600FF2BPTC RESET FUSE 16V 6A RADIAL |
9,450 | - |
|
Datasheet | Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
0ZRP0110FF2BPTC RESET FUSE 60V 1.1A RADIAL |
9,822 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.161" W (7.60mm x 4.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
