Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA102MCDIGITAL AUDIO TX 1:1 3MH SMD |
1,303 | - |
|
Datasheet | DA100 | Box | Not For New Designs | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/3CPULSE XFMR 1:1 200UH |
2,138 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 200µH | 6VµS | 1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78613/16JCPULSE XFMR 1CT:1 3.2MH |
1,782 | - |
|
Datasheet | 786J | Tube | Active | General Purpose | 3.2mH | 28VµS | 1CT:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
782482/33VCXFRMR CONV ADM2482 3.3V IN |
1,495 | - |
|
Datasheet | 782482 | Tube | Active | Isolation and Data Interface (Encapsulated) | 310µH | - | 1CT:1.33CT | Through Hole | 0.360" L x 0.385" W (9.14mm x 9.77mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
PA2002NLPULSE XFMR 1:1:1 1.8MH |
1,129 | - |
|
Datasheet | - | Tube | Active | - | 1.8mH | 60VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|

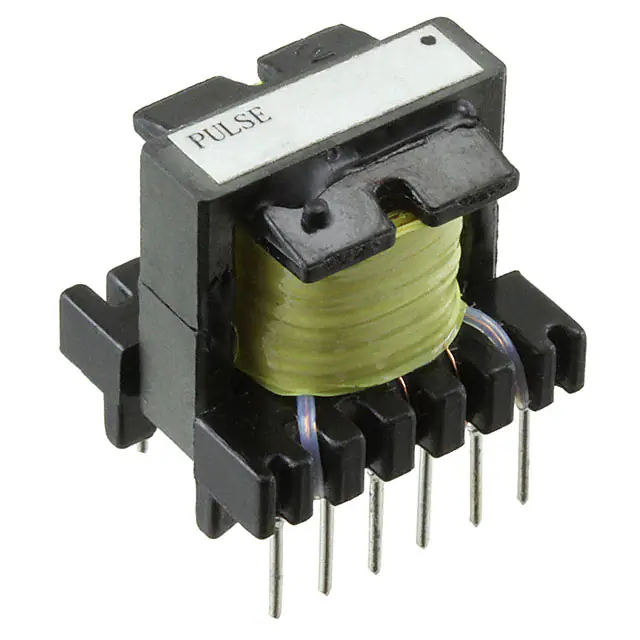

PA2517NLPULSE XFMR 1.2MH |
2,824 | - |
|
Datasheet | - | Tray | Active | - | 1.2mH | - | - | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.709" (18.00mm) | -40°C ~ 130°C | - | - |
|
ITNA-0249-D104ITNA PULSE TRANSFORMER THT 0.1A |
4,162 | - |
|
Datasheet | IT | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3.5mH | 300VµS | 1:1 | Through Hole | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.512" (13.00mm) | -25°C ~ 100°C | - | - |
|
ISRB-0249-D101ISRB PULSE TRANSFORMER SMD 0.1A |
1,475 | - |
|
Datasheet | IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 1.4mH | 250VµS | 2:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
ILR-11-0002ILR2 PULSE TRANSFORMER THT 1A |
3,427 | - |
|
Datasheet | ILR | Bulk | Active | Isolation and Data Interface (Encapsulated) | 2.5mH | - | 2:1 | Through Hole | 0.689" L x 0.728" W (17.50mm x 18.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C | - | - |
|
77208CPULSE XFMR 1:1:1 16.3MH |
2,532 | - |
|
Datasheet | - | Tube | Active | SCR and Triac Trigger (Encapsulated) | 16.3mH | 482VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77202CPULSE XFMR 1:1:1 1MH |
4,424 | - |
|
Datasheet | - | Tube | Active | SCR and Triac Trigger (Encapsulated) | 1mH | 120VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
|
77205CPULSE XFMR 1:1:1 4MH |
4,632 | - |
|
Datasheet | - | Tube | Active | SCR and Triac Trigger (Encapsulated) | 4mH | 240VµS | 1:1:1 | Through Hole | 1.000" L x 0.799" W (25.40mm x 20.30mm) | 0.484" (12.30mm) | 0°C ~ 70°C | - | - |
|
H5007ENLPULSE XFMR 1CT:1CT TX 1CT:1CT RX |
4,890 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.689" L x 0.480" W (17.50mm x 12.20mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|
H2006ANLMODULE MAGNETICS POE DUAL VOIP |
3,157 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|
ALAN-2301PULSE XFMR 1CT:1CT 350UH |
2,372 | - |
|
Datasheet | ALAN-2301 | Strip | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 0.689" L x 0.559" W (17.50mm x 14.20mm) | 0.219" (5.55mm) | -40°C ~ 85°C | - | - |
|
X-1569XFMR GATE DRIVE 1500VDC ISO |
3,797 | - |
|
Datasheet | - | Tube | Active | Gate Drive | 3.3mH | 45.1VµS | 1:1:1 | Surface Mount | 0.355" L x 0.340" W (9.01mm x 8.63mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
|
HX6080NLPULSE XFMR 1 CT:1CT TX/RX 350UH |
3,505 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|
X-1584NLTRANSFORMER SINGLE 1553 |
1,555 | - |
|
Datasheet | - | Tube | Active | Interface, MIL-STD-1553 | - | - | 1CT:1.79CT | Through Hole | 0.350" L x 0.500" W (8.89mm x 12.70mm) | 0.172" (4.37mm) | -55°C ~ 130°C | - | - |
|
78602/2MC-RPULSE XFMR 1:1:1 500UH |
4,104 | - |
|
Datasheet | 786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 500µH | 10VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/4MC-RPULSE XFMR 2:1 67UH |
2,855 | - |
|
Datasheet | 786 | Tape & Reel (TR) | Not For New Designs | General Purpose | 67µH | 4VµS | 2:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
