RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2195846-2FPC ANT, MHF, 100MM, 698-7125 MH |
2,017 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | Wide Band | 829MHz, 1.595GHz, 2.205GHz, 3.5GHz, 4.7GHz, 5.5125GHz, 6.525GHz | 698MHz ~ 960MHz, 1.56GHz ~ 1.63GHz, 1.71GHz ~ 2.7GHz, 3.2GHz ~ 3.8GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 7 | 4 | - | 4.99dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive, Chassis Mount | - | 4G, LTE, GNSS |
|
ANT-418-SPRF ANT 418MHZ CHIP SOLDER SMD |
4,256 | - |
|
Datasheet | Splatch® | Tube | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 414MHz ~ 422MHz | Chip | 1 | 1.9 | - | -8dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-JJB-STRF ANT 916MHZ DOME SLD TH 7MM |
610 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Straight | 1 | 2 | - | -10.2dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
2440AT62A0085001ERF ANT 2.4425GHZ CER PATCH SLD |
1,800 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4425GHz | 2.4GHz ~ 2.485GHz | Ceramic Patch | 1 | - | 6dB | 3.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
|
W3921B0100RF ANT 2.4GHZ FLAT PATCH CAB ADH |
1,232 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Flat Patch | 1 | 2 | - | 1dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
1461531100RF ANT 2.4/5GHZ FLAT PATCH 100MM |
428 | - |
|
Datasheet | 146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2042811200RF ANT 2.4/5GHZ PCB TRACE 200MM |
6,567 | - |
|
Datasheet | 204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -10dB | - | 2 W | Cable - 200mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
FXP70.07.0053ARF ANT 2.4GHZ FLAT PATCH IPEX |
4,526 | - |
|
Datasheet | Freedom | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Flat Patch | 1 | 1.5 | - | 1.1dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.003" (0.08mm) | Bluetooth, WLAN, Zigbee™ |
|
SRFI065-100LAMA ISM ANTENNA+100MM CABLE |
1,064 | - |
|
Datasheet | flexiiANT® | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | 1.5 | -15dB | 0.82dBi, 1.33dBi | - | Cable - 100mm | I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | LoRa |
|
2125700100824~2170MHZ FLEXIBLE ANT SIDE-FE |
5,284 | - |
|
Datasheet | 212570 | Tray | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -3dB, -4dB | -0.45dBi, 1.76dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | LTE |
|
001-0022RF ANT 2.4GHZ FLEXPIFA MHF4L ADH |
1,331 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | FlexPIFA | 1 | 2 | - | 2dBi | - | Cable - 100mm | MHF4L | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|
ANT-2.4-LCW-RPS2.4GHZ DIPOLE ANTENNA RP-SMA |
752 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
|
ANT-2.4-LCW-SMA2.4GHZ DIPOLE ANTENNA SMA |
400 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.272" (83.10mm) | ISM, U-NII, WiFi, WLAN |
|
ANT-868-JJB-RARF ANT 868MHZ DOME SLD TH |
297 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Right Angle | 1 | 2 | - | -1dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
.jpg "ANT-433-PW-RA")
|
ANT-433-PW-RARF ANT 433MHZ WHIP TILT SCREW-MT |
1,108 | - |
|
Datasheet | RA | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 443MHz | Whip, Tilt | 1 | 2 | - | -0.7dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 5.180" (131.57mm) | Alarms, ISM, Remote Control, Security Systems |
|
ANT-916-JJB-RARF ANT 916MHZ DOME SLD TH 7MM |
3,017 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 901MHz ~ 931MHz | Whip, Right Angle | 1 | 2 | - | -0.5dBi | - | - | Solder | - | - | - | Through Hole | 0.571" (14.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|

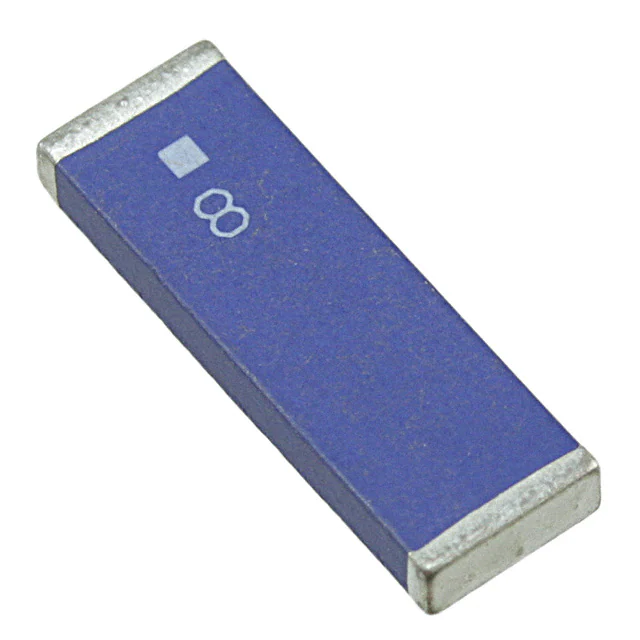

ANT1204LL05R0915ARF ANT 915MHZ CHIP SOLDER SMD |
25,860 | - |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 915MHz | 905MHz ~ 925MHz | Chip | 1 | 2 | -13.35dB | 3.32dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | ZigBee™ |
|
ANT-868-JJB-STRF ANT 868MHZ DOME SLD TH |
1,970 | - |
|
Datasheet | JJB | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 855MHz ~ 880MHz | Whip, Straight | 1 | 2 | - | -8.9dBi | - | - | Solder | - | - | - | Through Hole | 0.693" (17.60mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-ELE-S01-005RF ANT 892MHZ WHIP STR M5 CONN |
1,086 | - |
|
Datasheet | MAG | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz, 900MHz | 824MHz ~ 960MHz | Whip, Straight | 1 | 1.5 | - | 3.8dBi | - | - | M5 | - | - | - | Magnetic | 11.630" (295.40mm) | - |
|
ANT-LPL-FPC-100RF ANT LTE LPWA FLEX ADHES UFL |
2,094 | - |
|
Datasheet | FPC | Bag | Active | Cellular, General ISM | Wide Band | 750MHz, 876MHz, 1.96GHz, 2.35GHz, 2.44GHz, 2.59GHz, 3.55GHz | 696MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.4GHz ~ 2.485GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz | Flat Patch | 7 | 2.3, 2.4, 4.6, 1.4, 1.8, 3.5 | -8.1dB, -7.7dB, -3.8dB, -15.6dB, -10.9dB, -5.1dB | 5.6dBi, 6.5dBi, 4.9dBi, 5.2dBi, 5dBi, 5.3dBi, 2.9dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.010" (0.20mm) | 4G, 5G, LTE |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
