Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHUA6630-076B-00-000SPEAKER 2.2OHM 5W TOP PORT |
122 | - |
|
Datasheet | PiezoListen™ | Tray | Active | Piezo | General Purpose | 100 Hz ~ 20 kHz | - | 2.2 Ohms|Ohms | - | 100mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Rectangular | - | - | - | - | Flex Contacts | - |
|

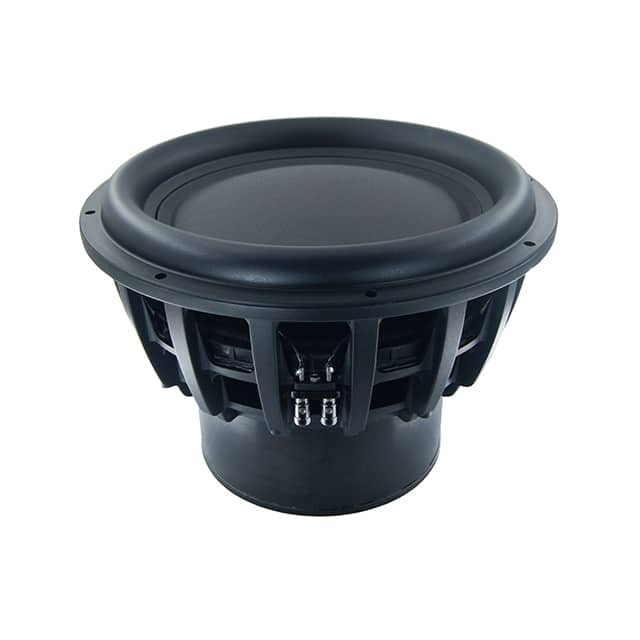

STW-350F188PR01-04SPEAKER 4.86OHM 3500W TOP 81.4DB |
121 | - |
|
Datasheet | STW | Bulk | Active | Magnetic | Subwoofer | 20 Hz ~ 200 Hz | 26.55Hz | 4.86 Ohms | 81.40 | 1W/1M | Half Space Sensitivity | 2500 W | - | Top | Round | Paper | Ferrite | - | - | - | 15.000" Dia (381.00mm) |
|

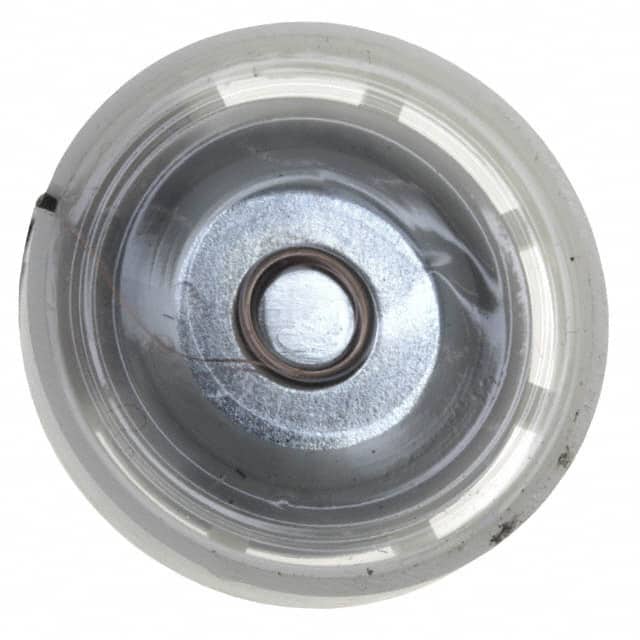

PSR-29F08S02-JQSPEAKER 8OHM 250MW TOP PORT 84DB |
246 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 800 Hz ~ 4.5 kHz | 800Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.142" Dia (29.00mm) |
|
AR01032MR-2-RSPEAKR 32OHM 10MW TOP PORT 110DB |
1,350 | - |
|
Datasheet | - | Tray | Active | - | Receiver | 300 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.394" Dia (10.00mm) |
|
RSP-500.000-2805-NS128mm OD x 5mm Speaker |
919 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 6 kHz | 500Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Metal | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|
AS02832MR-2-RSPEAKR 32OHM 250MW TOP PORT 91DB |
1,015 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 6.5 kHz | 600Hz | 32 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
AS01508MS-SP11-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
12,736 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1605SPEAKER 8OHM 800MW TOP PORT 88DB |
77,322 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.630" Dia (16.00mm) |
|
|
CMS-30204-18L25030X20MM OVAL, 1W, 8, 700HZ |
901 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 10 kHz | 700Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval, Rectangular Frame | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|

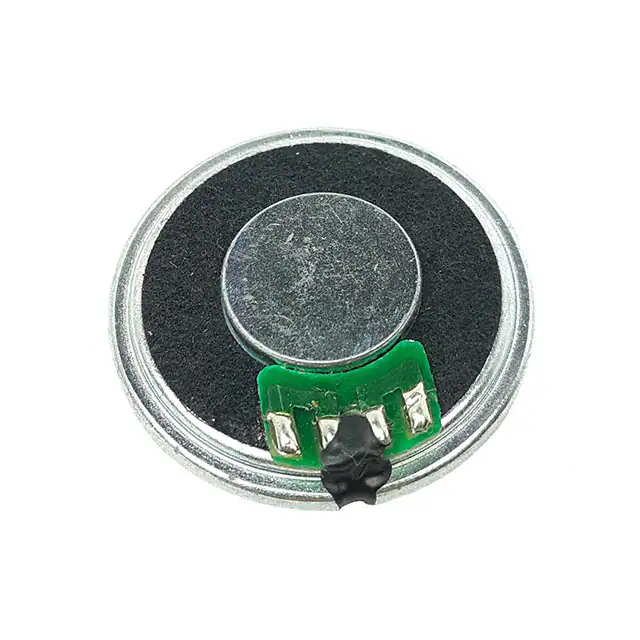

SP-2804YSPEAKER 8OHM 500MW TOP PORT 85DB |
4,680 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 8 kHz | 600Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
|
CMS-151125-078SPSPEAKER 8OHM 700MW TOP PORT 91DB |
1,675 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDM-10008SPEAKER 8OHM 300MW TOP PORT 86DB |
1,399 | - |
|
Datasheet | CDM | Tray | Active | Magnetic | General Purpose | 960 Hz ~ 20 kHz | 1200Hz | 8 Ohms | 86.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.394" Dia (10.00mm) |
|

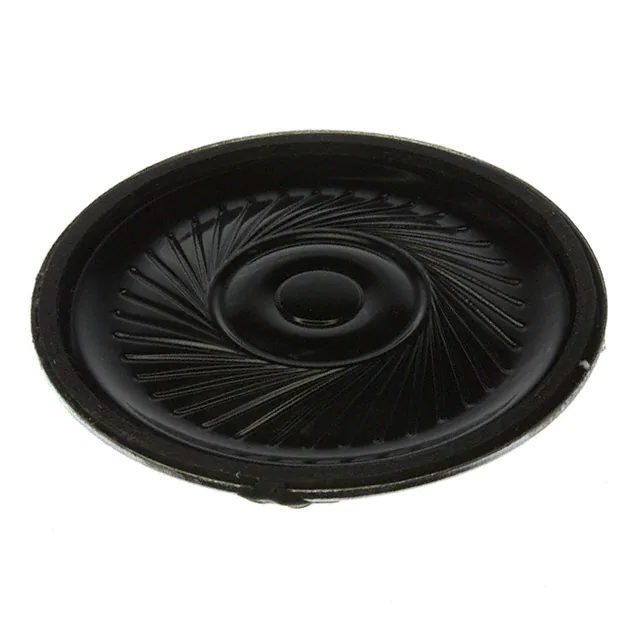

PSR-40N08A05-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
3,715 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575" Dia (40.00mm) |
.jpg "CDMG16008-03")
|
CDMG16008-03SPEAKER 8OHM 300MW TOP PORT 69DB |
3,443 | - |
|
Datasheet | CDMG | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 69.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" Dia (16.00mm) |
|

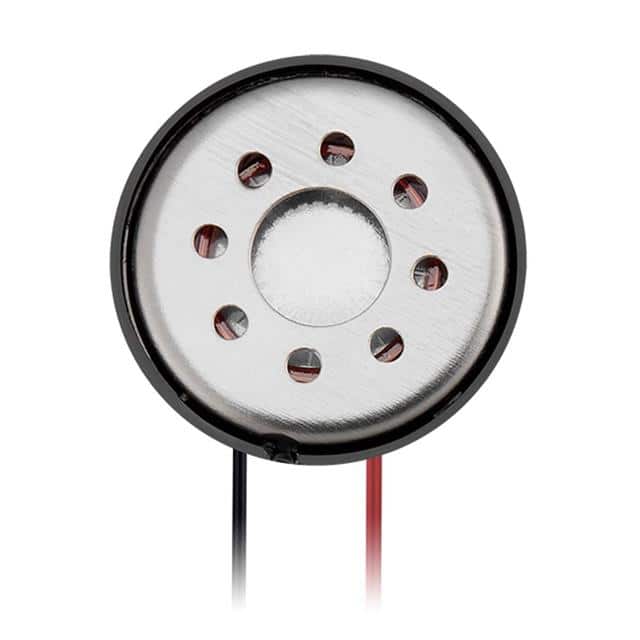

SPKM.10.8.ASPEAKER 8OHM 5MW TOP PORT 119DB |
671 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 119.00 | 100mW/50mm | Sound Pressure Level (SPL) | 5 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.394" Dia (10.00mm) |
|
SPKM.15.8.ASPEAKER 8OHM 500MW TOP PORT 87DB |
428 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 950Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.591" Dia (15.00mm) |
|
|
SP-2305LSPEAKER, 8 OHM, 0.5/0.8W, 89DB, |
995 | - |
|
Datasheet | SP | Bulk | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
|
CMS-151135-18SP-X8SPEAKER, 15 X 11 MM, 3.5 MM DEEP |
608 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
CMS-160903-18SP-X8SPEAKER, 16 X 9 MM, 3 MM DEEP, P |
893 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 95.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
|
CMS-160925-18SP-X8SPEAKER, 16 X 9 MM, 2.5 MM DEEP, |
610 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
