Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-151135-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
2,647 | - |
|
Datasheet | CMS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

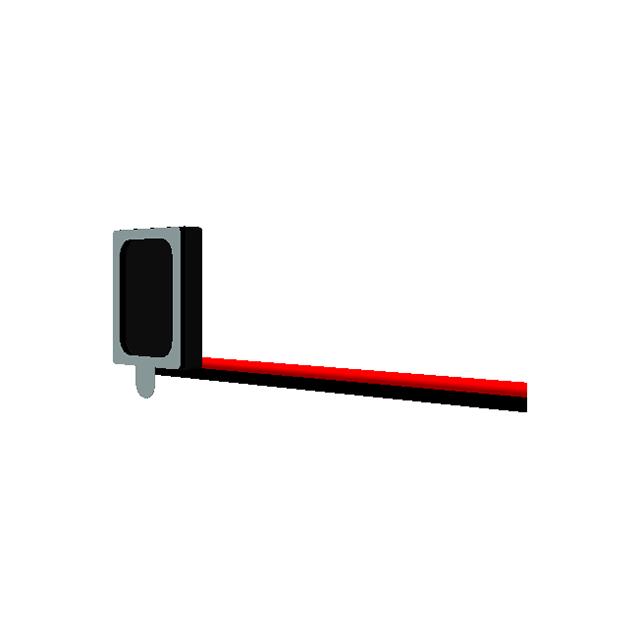

AS01506MS-WP-LW100-RSPEAKER 6OHM 1W TOP PORT 93DB |
582 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 550 Hz ~ 20 kHz | 550Hz | 6 Ohms | 93.00 | 100mm | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-15113-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,381 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-181345-18SP-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
394 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-15113-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,832 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-151135-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,153 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-160925-078SP-67SPEAKER 8OHM 700MW TOP PORT 90DB |
142 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CDM-16008SPEAKER 8OHM 400MW TOP PORT 93DB |
1,027 | - |
|
Datasheet | CDM | Tray | Active | Magnetic | General Purpose | 640 Hz ~ 20 kHz | 800Hz | 8 Ohms | 93.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" Dia (16.00mm) |
|
|
CMS-181345-18S-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
200 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-160925-078S-67SPEAKER 8OHM 700MW TOP PORT 90DB |
1,517 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-151125-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,019 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1609SPEAKER 8OHM 500MW TOP PORT 82DB |
236 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS01508MO-SP11-LW25-RSPEAKER 8OHM 700MW TOP PORT 89DB |
2,383 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01508MR-6-LW100-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
957 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|

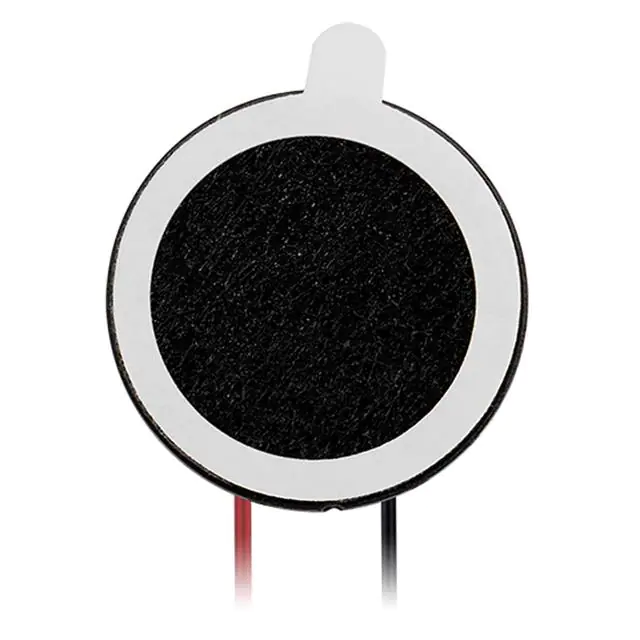

SPKM.17.8.ASPEAKER 8OHM 500MW TOP PORT 96DB |
863 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 96.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.669" Dia (17.00mm) |
|
|
CMS-2278-34SPSPEAKER, 22 MM, 7.8 MM DEEP, PU+ |
999 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 304 Hz ~ 20 kHz | 380Hz | 4 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round | Polyethylene Naphthalate (PEN), Polyurethane (PU) | Nd-Fe-B | - | - | Solder Tabs | 0.866" Dia (22.00mm) |
|

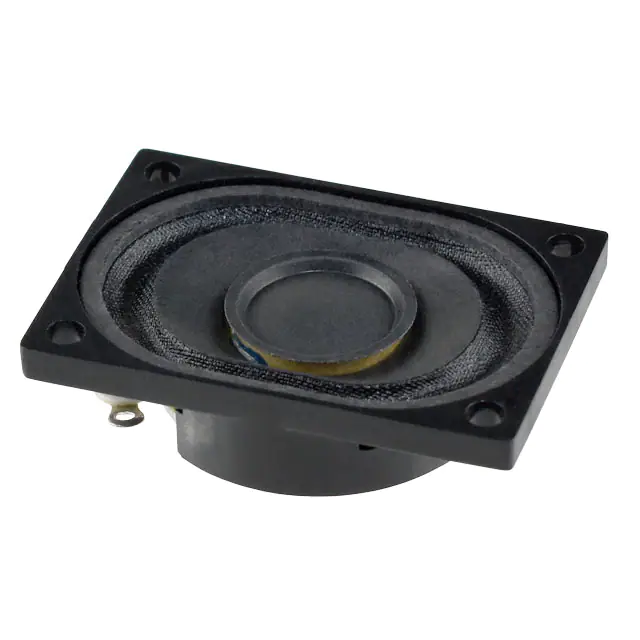

CMS-402811-28SPSPEAKER 8OHM 2W TOP PORT 84DB |
4,596 | - |
|
Datasheet | CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|
PSR-45N08A-JQSPEAKER 8OHM 250MW TOP PORT 88DB |
362 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
|
CMS-150803-088S-X8SPEAKER, 15 X 8 MM, 3 MM DEEP, P |
493 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 980 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|
CDS-5085-32-SPSPEAKR 32OHM 500MW TOP PORT 92DB |
387 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 32 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
