Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP570408-1SPEAKR 8OHM 500MW TOP PORT 101DB |
192 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 420 Hz ~ 5 kHz | 420Hz | 8 Ohms | 101.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
SW151008-1SPEAKER 8OHM 500MW TOP PORT 87DB |
678 | - |
|
Datasheet | SW | Bulk | Active | Magnetic | General Purpose | 1 kHz ~ 10 kHz | 1kHz | 8 Ohms | 87.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
CMR-12062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
943 | - |
|
Datasheet | CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
AS01808MR-RSPEAKER 8OHM 1W TOP PORT 80DB |
9,393 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 0.709" Dia (18.00mm) |
|
CMS-15118C-SPSPEAKER 8OHM 800MW TOP PORT 88DB |
596 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 400 Hz ~ 10 kHz | 500Hz | 8 Ohms | 88.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AR027300MR-RSPEAKER 300OHM 10MW TOP PT 110DB |
236 | - |
|
Datasheet | AR | Tray | Active | Magnetic | Receiver | 100 Hz ~ 10 kHz | 650Hz | 300 Ohms | 110.00 | 1mW/10mm | Sound Pressure Level (SPL) | 10 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.126" Dia (28.60mm) |
|
AR03032MR-RSPEAKR 32OHM 20MW TOP PORT 115DB |
126 | - |
|
Datasheet | - | Tray | Active | Magnetic | Receiver | 60 Hz ~ 10 kHz | - | 32 Ohms | 115.00 | 1mW/10mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.142" Dia (29.00mm) |
|
SP-2027NWSPEAKER 4OHM 1W TOP PORT 83DB |
134 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 4 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
SC250708-1SPEAKER 8OHM 1W TOP PORT 96DB |
3,005 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 750Hz | 8 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Cloth | - | - | - | Wire Leads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
CMS-3060-128SP-67SPEAKER 8OHM 1.2W TOP PORT 100DB |
799 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 10 kHz | 850Hz | 8 Ohms | 100.00 | 1.2W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.181" Dia (30.00mm) |
|
CMS-231137-158SP-X8SPEAKER, 23 X 11 MM, 3.7 MM DEEP |
619 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.906" L x 0.433" W (23.00mm x 11.00mm) |
|
|
CMS-211337-24SP-X8SPEAKER, 21 X 13 MM, 3.7 MM DEEP |
597 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.827" L x 0.512" W (21.00mm x 13.00mm) |
|

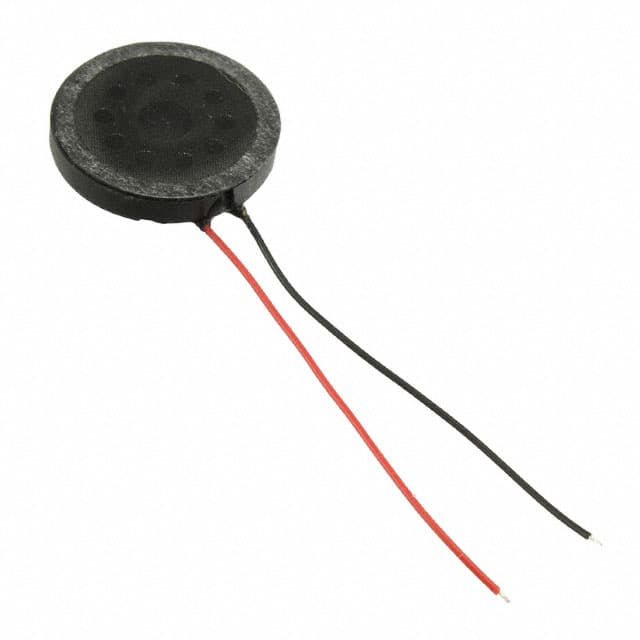

SP-1704SPEAKER 8OHM 800MW TOP PORT 90DB |
662 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyethylene Naphthalate (PEN) | - | - | - | Wire Leads | 0.669" Dia (17.00mm) |
|
CLF0381MP-1SPEAKER 8OHM 250MW TOP PORT 93DB |
2,704 | - |
|
Datasheet | CLF | Tray | Active | Magnetic | Low Profile | 380 Hz ~ 10 kHz | 380Hz | 8 Ohms | 93.00 | 100mW/500mm | Sound Pressure Level (SPL) | 250 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.496" Dia (38.00mm) |
|
PSR-36N08A-JQSPEAKER 8OHM 250MW TOP PORT 89DB |
6,371 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 550 Hz ~ 7 kHz | 550Hz | 8 Ohms | 89.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
CMS-402008-18SPSPEAKER 8OHM 1.5W TOP PORT 84DB |
321 | - |
|
Datasheet | CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
SP-3020SPEAKER 8OHM 1.5W TOP PORT 85DB |
1,178 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 500Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Oval | Paper | Nd-Fe-B N40 | - | - | Wire Leads | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
SP-3605SPEAKER 8OHM 1W TOP PORT 90DB |
2,041 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads with Connector | 1.417" Dia (36.00mm) |
|
SPKM.50.8.ASPEAKER 8OHM 500MW TOP PORT 93DB |
1,053 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 450Hz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969" Dia (50.00mm) |
|
PSR-57N08A01-AQSPEAKER 8OHM 500MW TOP PORT 92DB |
135 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 600 Hz ~ 4 kHz | 600Hz | 8 Ohms | 92.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 2.244" Dia (57.00mm) |
