Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN202-0.6-02-4M4CMC 4.4MH 600MA 2LN TH |
1,997 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

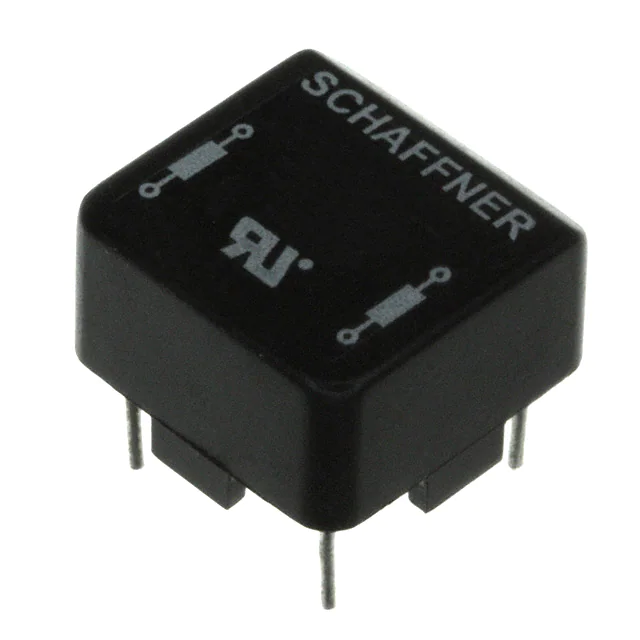

RN102-0.6-02-4M4CMC 4.4MH 600MA 2LN TH |
1,458 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82721A2122N020CMC 6.8MH 1.2A 2LN TH |
12,554 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ACT1210G-800-2P-TL10CMC 80UH 70MA 2LN 3.8KOHM SMD |
5,541 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.8 kOhms @ 10 MHz | 80 µH @ 100 kHz | 70mA | 2.6Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM0805C221R-10CMC 300MA 2LN 220 OHM SMD |
132,182 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 220 Ohms @ 100 MHz | - | 300mA | 400mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN102-2-02-1M1CMC 1.1MH 2A 2LN TH |
6,053 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 70mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN112-0.8-02-10MCMC 10MH 800MA 2LN TH |
5,222 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-0.6-02-15MCMC 15MH 600MA 2LN TH |
3,595 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 600mA | 490mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN212-0.8-02-10MCMC 10MH 800MA 2LN TH |
1,521 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 800mA | 380mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-1.2-02-6M8CMC 6.8MH 1.2A 2LN TH |
3,530 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.2A | 250mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
744253200CMC 20UH 500MA 3LN SMD |
2,281 | - |
|
Datasheet | - | Signal Line | 3 | - | 20 µH @ 100 kHz | 500mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN112-1.5-02-3M3CMC 3.3MH 1.5A 2LN TH |
966 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 102mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PLT5BPH5013R1SNLCMC 1.8A 2LN 500OHM SMD AEC-Q200 |
21,715 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 1.8A | 22.1mOhm | 80V | - | -55°C ~ 150°C | - | - | - | - | - |
|
|
PLT5BPH3013R7SNLCMC 2.2A 2LN 300OHM SMD AEC-Q200 |
3,976 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 300 Ohms @ 10 MHz | - | 2.2A | 11mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
PLT5BPH1015R6SNLCMC 2.9A 2LN 100OHM SMD AEC-Q200 |
2,459 | - |
|
Datasheet | Vertical, 4 PC Pad | - | 2 | 100 Ohms @ 10 MHz | - | 2.9A | 5mOhm (Typ) | 80V | - | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
ACT1210E-241-2P-TL00CMC 240UH 70MA 2LN SMD AEC-Q200 |
17,101 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | 240 µH @ 100 kHz | 70mA | 4.1Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82731M2132A030CMC 6.8MH 1.3A 2LN TH |
3,127 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.3A | 280mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
CPFC805NP-100M05CMC 4.5A 2LN 500 OHM SMD |
8,308 | - |
|
Datasheet | - | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4.5A | 15mOhm | - | - | - | - | - | - | - | - |
|
|
RN112-4-02-0M7CMC 700UH 4A 2LN TH |
1,449 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 24mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
7427521CMC 19A 2LN 52 OHM SMD |
6,213 | - |
|
Datasheet | 0302 (0805 Metric) | Power, Signal Line | 2 | 52 Ohms @ 100 MHz | - | 19A | 3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
