Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN114-0.8-02-27MCMC 27MH 800MA 2LN TH |
18,831 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN214-0.8-02-27MCMC 27MH 800MA 2LN TH |
5,011 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 800mA | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PA2756NLCMC 8A 2LN SMD |
3,020 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 484 µH @ 100 MHz | 8A | 7.7mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

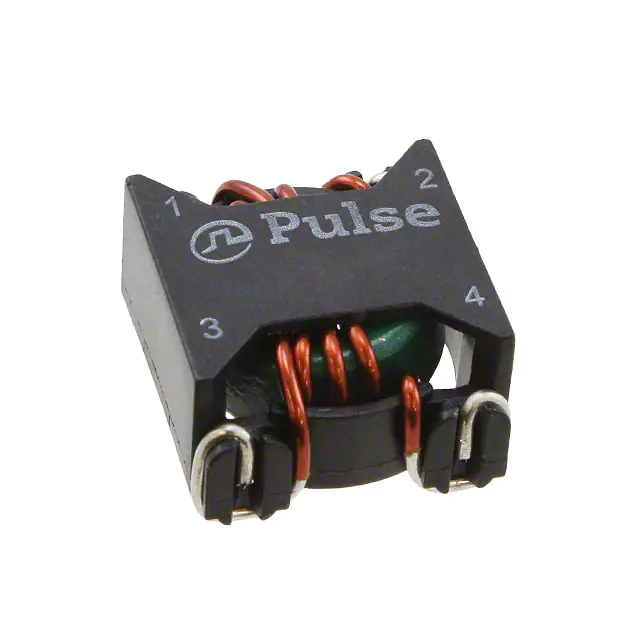

PA2753NLCMC 12.5A 2LN SMD |
1,548 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 12.5A | 3mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
744237701CMC 9UH 8A 2LN 700OHM SMD |
1,436 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | 1000V (1kV) | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
RN214-1-02-15MCMC 15MH 1A 2LN TH |
5,672 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
744253101CMC 100UH 450MA 3LN SMD |
3,515 | - |
|
Datasheet | - | Signal Line | 3 | - | 100 µH @ 100 kHz | 450mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN114-1-02-15MCMC 15MH 1A 2LN TH |
1,529 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1A | 370mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82720S2202N040CMC 1.1MH 2A 2LN SMD |
907 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Power Line | 2 | - | 1.1 mH @ 10 kHz | 2A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744223CMC 500UH 1A 2LN 3.3K OHM SMD |
5,196 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.3 kOhms @ 6 MHz | 500 µH @ 100 kHz | 1A | 150mOhm | 80V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
|
744222CMC 1MH 800MA 2LN 6KOHM SMD |
4,597 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 6 kOhms @ 4 MHz | 1 mH @ 100 kHz | 800mA | 310mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744226CMC 10UH 1.6A 2LN 920 OHM SMD |
4,539 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 920 Ohms @ 100 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744227CMC 51UH 1A 2LN 5.5K OHM SMD |
3,695 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 5.5 kOhms @ 10 MHz | 51 µH @ 1 kHz | 1A | 160mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744221CMC 2MH 600MA 2LN 9.2K OHM SMD |
1,673 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 9.2 kOhms @ 2 MHz | 2 mH @ 100 kHz | 600mA | 420mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744225SCMC 40UH 900MA 2LN 3.1K OHM SMD |
1,109 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.1 kOhms @ 50 MHz | 40 µH @ 1 kHz | 900mA | 250mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744220CMC 4.7MH 500MA 2LN 20K OHM SMD |
858 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 20 kOhms @ 1 MHz | 4.7 mH @ 100 kHz | 500mA | 750mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RN214-4-02-1M5CMC 1.5MH 4A 2LN TH |
22,170 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 10 kHz | 4A | 34mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN214-2-02-4M2CMC 4.2MH 2A 2LN TH |
1,051 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 10 kHz | 2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82732F2451B001CMC 100MH 450MA 2LN TH |
1,248 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 450mA | 2.93Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

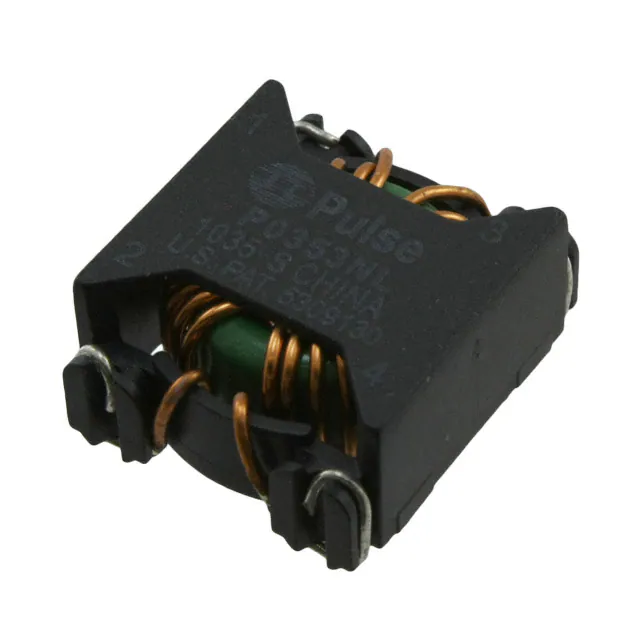

P0353NLCMC 5.6A 2LN SMD |
969 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
