Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM2722R800R-10CMC 5A 4LN 80 OHM SMD |
6,001 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 80 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM7060M132R-10CMC 2.5A 2LN 1.3KOHM SMD |
10,059 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.3 kOhms @ 100 MHz | - | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

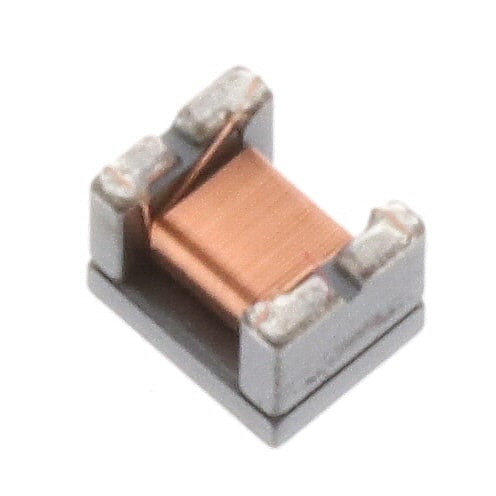

DLW32MH101XT2LCMC 100UH 100MA 2LN SMD AEC-Q200 |
4,514 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 3.12Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
CM7060N102R-10CMC 3A 2LN 1.02KOHM SMD |
3,185 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM5022R151R-10CMC 5A 8LN 150 OHM SMD |
6,930 | - |
|
Datasheet | Vertical, 18 Flat Lead | Power Line | 8 | 150 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82790C0105N240CMC 1MH 500MA 2LN SMD AEC-Q200 |
3,522 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 1 mH @ 100 kHz | 500mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

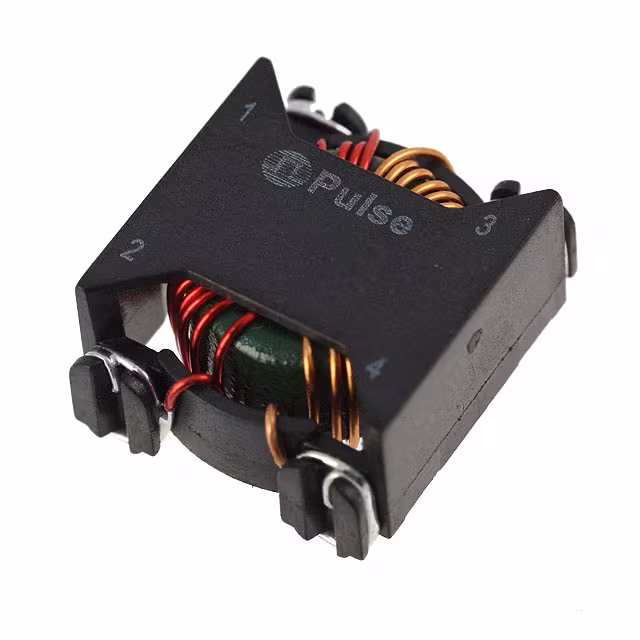

P0421NLTCMC 3.3A 2LN SMD |
136 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CM3440Z171R-10CMC 20A 2LN 170 OHM SMD |
6,456 | - |
|
Datasheet | Vertical, 4 Flat Lead | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | 100V | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN122-3-02-4M5CMC 4.5MH 3A 2LN TH |
723 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 3A | 80mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

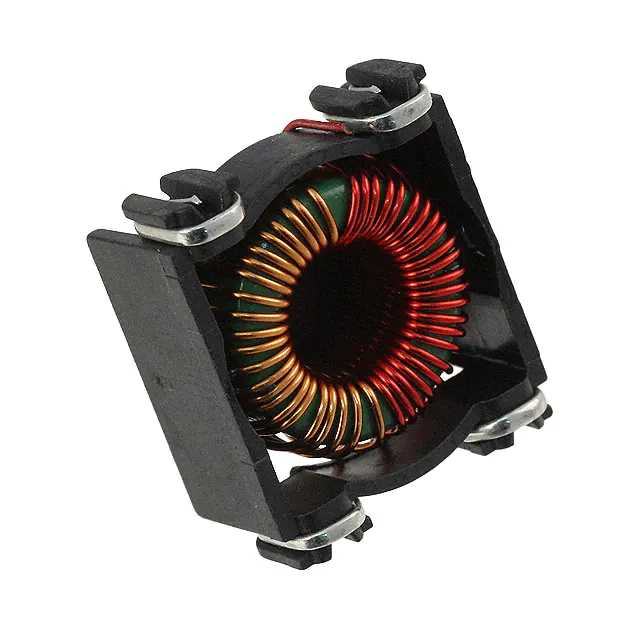

P0351NLCMC 2.8A 2LN SMD |
1,878 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
744272102CMC 1MH 950MA 2LN 3.6K OHM SMD |
4,820 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.6 kOhms @ 6 MHz | 1 mH @ 100 kHz | 950mA | 180mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272251CMC 250UH 2A 2LN 970 OHM SMD |
4,076 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 970 Ohms @ 15 MHz | 250 µH @ 100 kHz | 2A | 35mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272121CMC 120UH 2.5A 2LN 460 OHM SMD |
3,451 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 460 Ohms @ 30 MHz | 120 µH @ 100 kHz | 2.5A | 25mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272471CMC 470UH 1.6A 2LN 1.75K OHM SMD |
2,392 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.75 kOhms @ 10 MHz | 470 µH @ 100 kHz | 1.6A | 65mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272332CMC 3.3MH 650MA 2LN 8.9K OHM SMD |
1,546 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 8.9 kOhms @ 100 kHz | 3.3 mH @ 100 kHz | 650mA | 360mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744272221CMC 220UH 2.2A 2LN 780 OHM SMD |
549 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 780 Ohms @ 15 MHz | 220 µH @ 100 kHz | 2.2A | 32mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
P0351NLTCMC 2.8A 2LN SMD |
1,049 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
744841414CMC 14UH 4A 2LN TH |
896 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 14 µH @ 10 kHz | 4A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

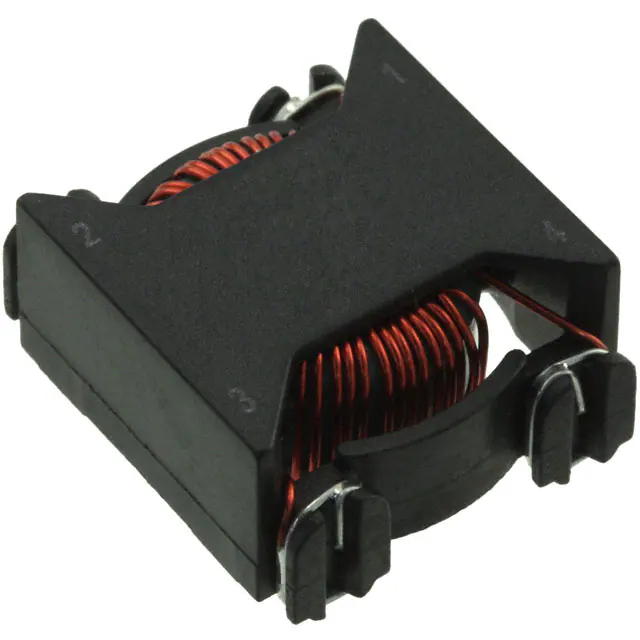

PE-53913NLTCMC 1A 2LN SMD |
843 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 1A | 450mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
|
RN122-4-02-3M3CMC 3.3MH 4A 2LN TH |
2,988 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
