Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82721A2202N001CMC 1MH 2A 2LN TH |
3,197 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720H0015A035CMC 68MH 200MA 2LN TH |
800 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 3.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
P0353NLTCMC 5.6A 2LN SMD |
363 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5.6A | 21mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CM7060W101R-10CMC 9A 2LN 140 OHM SMD |
2,534 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 140 Ohms @ 100 MHz | - | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
P0354NLTCMC 1.22A 2LN SMD |
2,139 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.22A | 200mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

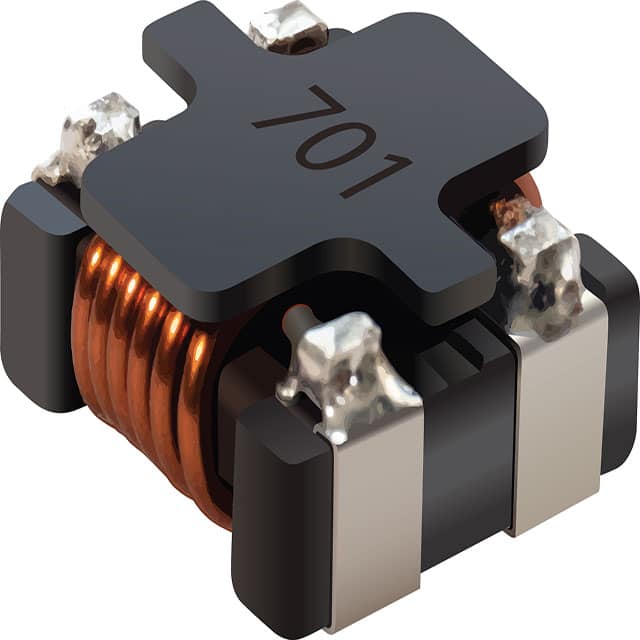

SRF1206A-701YCMC 9UH 8A 2LN 700OHM SMD |
704 | - |
|
Datasheet | 4-SMD | Power Line | 2 | 700 Ohms @ 100 MHz | 9 µH @ 100 kHz | 8A | 6mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
RN218-2.2-02-3M3CMC 3.3MH 2.2A 2LN TH |
441 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.2A | 100mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
B82790S0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
6,017 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82790C0113N201CMC 11UH 500MA 2LN SMD AEC-Q200 |
3,737 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 11 µH @ 100 kHz | 500mA | 80mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM3440Z171B-10CMC 20A 2LN 170 OHM TH |
8,378 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

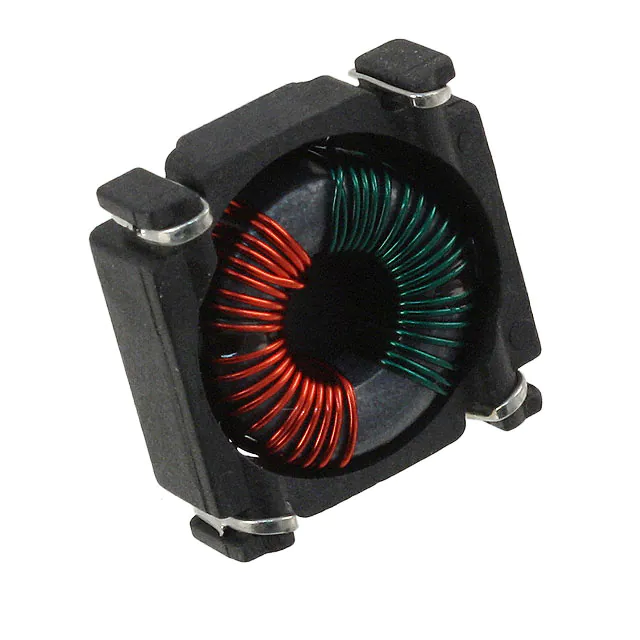

P0473NLTCMC 1.63A 2LN SMD |
4,326 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CM4545Z131R-10CMC 10A 4LN 130 OHM SMD |
4,266 | - |
|
Datasheet | Vertical, 8 Flat Lead | Power Line | 4 | 130 Ohms @ 100 MHz | - | 10A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82790C0475N265CMC 4.7MH 200MA 2LN SMD AEC-Q200 |
1,125 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 200mA | 510mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

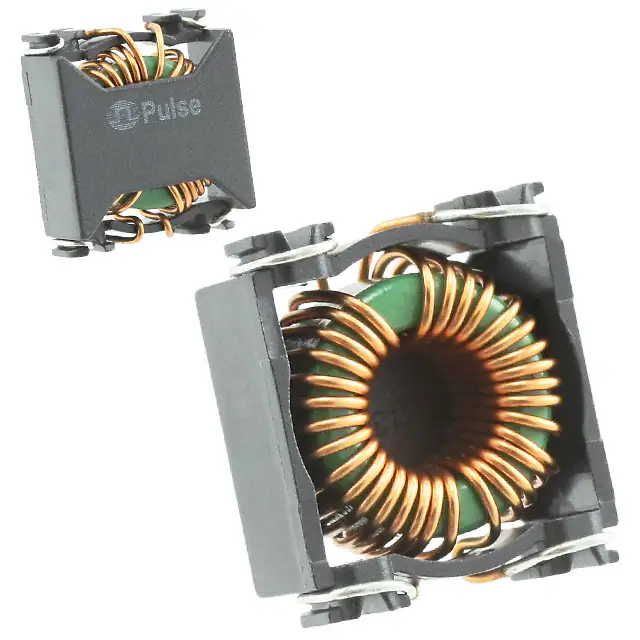

P0422NLTCMC 4.7A 2LN SMD |
784 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
51105CCMC 3.3A 2LN TH |
870 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 3.3A | 38mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMS1-10-RCMC 73.7UH 1.65A 2LN SMD |
2,315 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 73.7 µH @ 100 kHz | 1.65A | 48mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
M-521CTCMC 1A 2LN 700 OHM SMD |
2,287 | - |
|
Datasheet | Vertical, 4 Gull Wing | Signal Line | 2 | 700 Ohms @ 10 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
B82720S2301N040CMC 12MH 300MA 2LN SMD |
1,940 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82720A2601N040CMC 4.4MH 600MA 2LN TH |
176 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 10 kHz | 600mA | 400mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82790C0513N201CMC 51UH 500MA 2LN SMD AEC-Q200 |
8,445 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
