Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744242510CMC 51UH 400MA 2LN 2.5K OHM SMD |
34,636 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 2.5 kOhms @ 25 MHz | 51 µH @ 100 kHz | 400mA | 320mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744273501CMC 5UH 5A 2LN 500 OHM SMD |
11,753 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 130 MHz | 5 µH @ 100 kHz | 5A | 5.5mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744273801CMC 9UH 3.5A 2LN 800 OHM SMD |
4,009 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 800 Ohms @ 120 MHz | 9 µH @ 100 kHz | 3.5A | 11mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744273102CMC 11UH 2.5A 2LN 1K OHM SMD |
2,204 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | 11 µH @ 100 kHz | 2.5A | 30mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744242471CMC 470UH 400MA 2LN 2.2K OHM SMD |
1,516 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 2.2 kOhms @ 15 MHz | 470 µH @ 100 kHz | 400mA | 350mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744242101CMC 100UH 300MA 2LN 4K OHM SMD |
848 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | 4 kOhms @ 9 MHz | 100 µH @ 100 kHz | 300mA | 580mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
M-523CTCMC 1.5A 2LN 200 OHM SMD |
3,874 | - |
|
Datasheet | Vertical, 4 Gull Wing | Signal Line | 2 | 200 Ohms @ 20 MHz | - | 1.5A | 65mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
AE2002CMC 160UH 100MA 2LN SMD AEC-Q200 |
5,463 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 160 µH @ 100 kHz | 100mA | 5Ohm | 60V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
CM5441Z161B-10CMC 75A 2LN 160 OHM TH |
36,951 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | 160 Ohms @ 100 MHz | - | 70A | 0.3mOhm | 340V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DLW5AHN402SQ2LCMC 200MA 2LN 4K OHM SMD |
775 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 4 kOhms @ 100 MHz | - | 200mA | 3Ohm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
CMS1-11-RCMC 100UH 1.35A 2LN SMD |
6,529 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 100 µH @ 100 kHz | 1.35A | 70mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

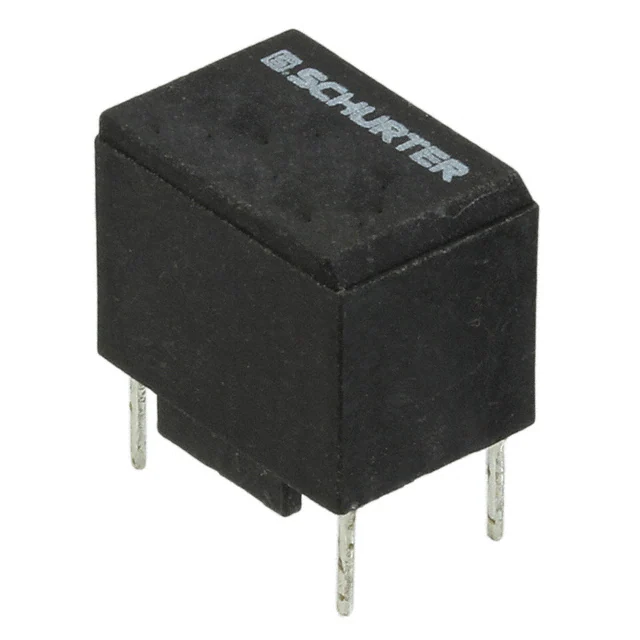

DFKH-14-0001CMC 600MA 2LN TH |
3,226 | - |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 600mA | 600mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
CMS1-4-RCMC 18UH 3.8A 2LN SMD |
2,918 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 18 µH @ 100 kHz | 3.8A | 8.9mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
RN222-4-02-3M3CMC 3.3MH 4A 2LN TH |
2,392 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 46mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
CMS1-7-RCMC 41.5UH 2.6A 2LN SMD |
3,583 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 41.5 µH @ 100 kHz | 2.6A | 19mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
CPFC6D36NP-100M06CMC 2.5A 2LN 600 OHM SMD |
76,486 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 600 Ohms @ 100 MHz | - | 2.5A | 20mOhm | - | - | -20°C ~ 100°C | - | - | - | - | - |
|
CM5441Z101B-10CMC 75A 2LN 100 OHM TH |
12,785 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | 100 Ohms @ 100 MHz | - | 75A | 0.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

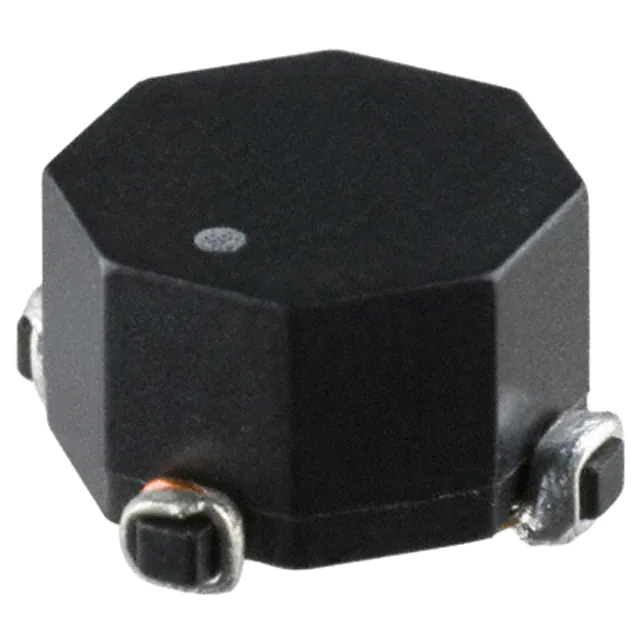

CMS2-4-RCMC 102UH 2.8A 2LN SMD |
3,912 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 102 µH @ 100 kHz | 2.8A | 19mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

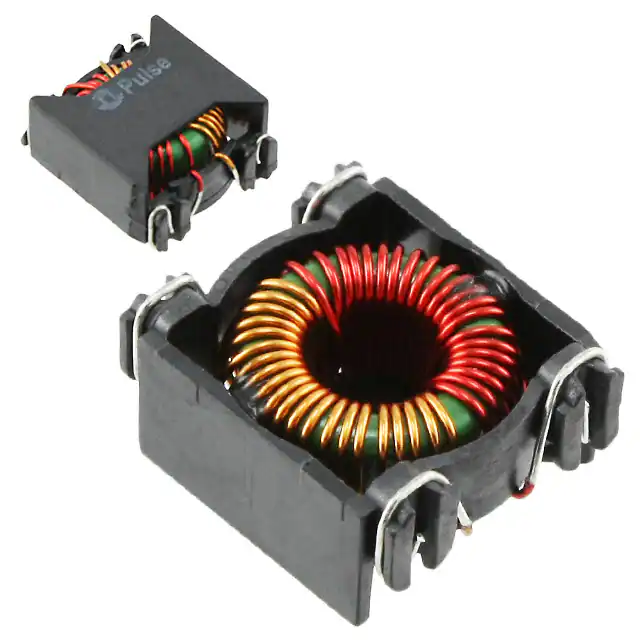

P0420NLCMC 3.3A 2LN SMD |
3,673 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
PA2755NLCMC 14A 2LN SMD |
662 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 14A | 1.95mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
