Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM5022R201R-10CMC 5A 8LN 200 OHM SMD |
4,495 | - |
|
Datasheet | Vertical, 16 Flat Lead | Power Line | 8 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82622S0173L030CMC 2.1UH 30A 2LN TH |
4,027 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 µH @ 100 kHz | 30A | 2.8mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82792C0106N365CMC 10MH 500MA 2LN SMD |
2,988 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
74466240007CMC 700UH 4A 2LN TH |
483 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

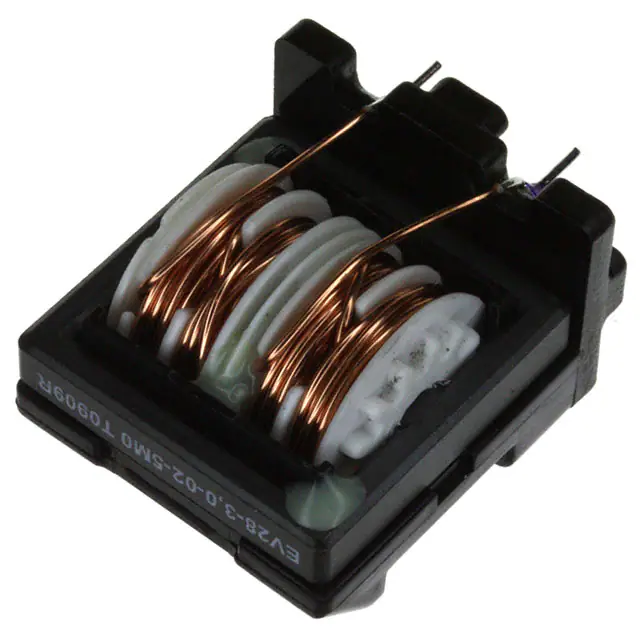

EV28-3.0-02-5M0CMC 5MH 3A 2LN TH |
14,298 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
B82792C2474N315CMC 470UH 600MA 4LN SMD |
875 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 4 | - | 470 µH @ 100 kHz | 600mA | 220mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82792C0336N365CMC 33MH 100MA 2LN SMD |
930 | - |
|
Datasheet | Horizontal, 8 Gull Wing | Signal Line | 2 | - | 33 mH @ 10 kHz | 100mA | 2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J8432N040CMC 6.8MH 4.3A 2LN TH |
230 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4.3A | 40mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J2502U040CMC 5.3MH 5A TH |
282 | - |
|
Datasheet | Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

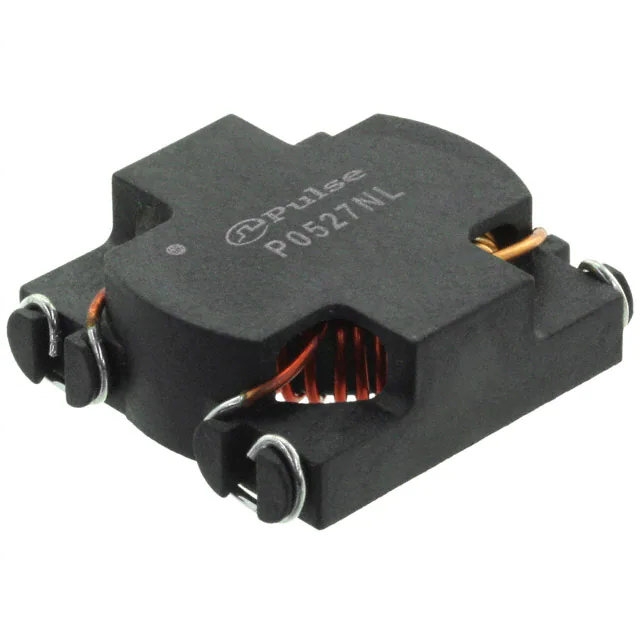

P0527NLTCMC 7.2A 2LN SMD |
284 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
RN242-6-02-1M8CMC 1.8MH 6A 2LN TH |
3,307 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
P0429NLCMC 9.7A 2LN SMD |
1,388 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
744823220CMC 20MH 1.5A 2LN TH |
745 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.5A | 270mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744823422CMC 2.2MH 4A 2LN TH |
701 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744823601CMC 1MH 6A 2LN TH |
388 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 6A | 13mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
RN142-6-02-1M8CMC 1.8MH 6A 2LN TH |
482 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
PLT10HH401100PNLCMC 10A 2LN 400 OHM SMD AEC-Q200 |
5,329 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | 400 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744824622CMC 2.2MH 6A 2LN TH |
113 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PH9407.104NLTCMC 20A 2LN 730 OHM SMD |
685 | - |
|
Datasheet | Nonstandard | - | 2 | 730 Ohms @ 1.6 MHz | - | 20A | 2.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SCF-05-060CMC 600UH 5A 2LN TH |
861 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 5A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
