Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744821120CMC 20MH 500MA 2LN TH |
6,403 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82723A2602N001CMC 1MH 6A 2LN TH |
3,522 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 6A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744821110CMC 10MH 700MA 2LN TH |
2,050 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 700mA | 350mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744821240CMC 4MH 1.5A 2LN TH |
1,186 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 1.5A | 140mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744821201CMC 1MH 2A 2LN TH |
1,110 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 2A | 45mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
23Z104SMNLTCMC 4LN SMD |
192 | - |
|
Datasheet | 8-SOIC (0.265", 6.73mm Width) | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
B82724J2602N041CMC 3.3MH 6A 2LN TH |
1,471 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 6A | 25mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82724J8162N040CMC 47MH 1.6A 2LN TH |
518 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.6A | - | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724A2142N001CMC 27MH 1.4A 2LN TH |
2,079 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 460mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744821039CMC 39MH 300MA 2LN TH |
4,973 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 300mA | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744821150CMC 5MH 1A 2LN TH |
2,429 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 1A | - | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744862250CMC 25MH 250MA 2LN TH |
690 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 250mA | 3.6Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
PMC9539.903NLCMC 25A 2LN 250 OHM TH |
1,202 | - |
|
Datasheet | Radial - 4 Leads | - | 2 | 250 Ohms @ 2.1 MHz | - | 25A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-10GSCMC 1MH 2A 2LN TH |
1,512 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

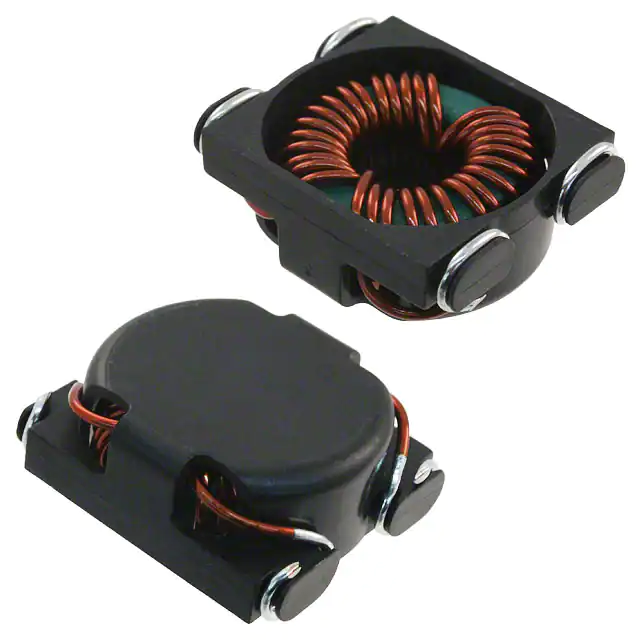

P0469NLCMC 11.6A 2LN SMD |
328 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 11.6A | 10mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
CMS2-2-RCMC 40UH 4.4A 2LN SMD |
1,388 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 40 µH @ 100 kHz | 4.4A | 8mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
PG1265NLCMC 20A 2LN SMD |
312 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 20A | 4.1mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B4003NLCMC 2LN SMD |
788 | - |
|
Datasheet | Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
B82733V2142B001CMC 27MH 1.4A 2LN TH |
450 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 440mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
DKFP-6248-02D5CMC 2A 2LN TH |
164 | - |
|
Datasheet | Nonstandard | - | 2 | - | - | 2A | 50mOhm | - | 250V | -40°C ~ 125°C | - | UR | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
