Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA2670NLTCMC 16A 2LN SMD |
1,163 | - |
|
Datasheet | Vertical, 4 PC Pad | Power Line | 2 | - | - | 16A | 4.25mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
CMS2-14-RCMC 1.34MH 500MA 2LN SMD |
731 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.34 mH @ 100 kHz | 500mA | 620mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

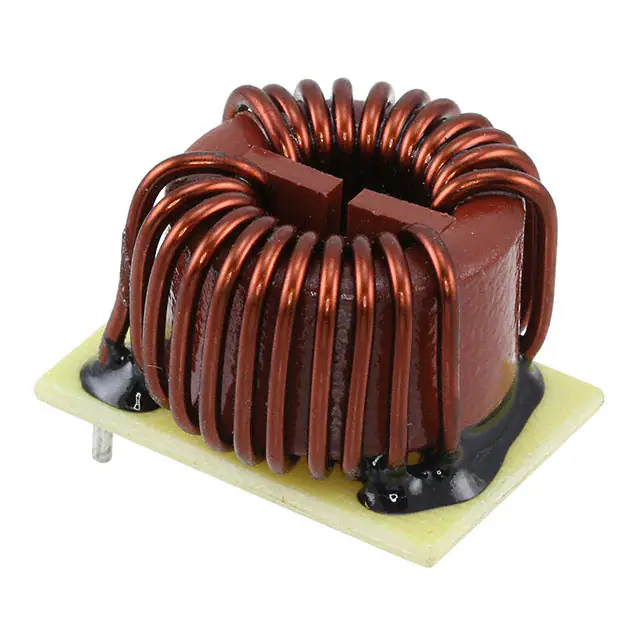

S14100037CMC 1MH 15A 2LN TH |
193 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 10 kHz | 15A | 7.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMS2-8-RCMC 360UH 1.35A 2LN SMD |
628 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 360 µH @ 100 kHz | 1.35A | 84mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
744212331CMC 330UH 300MA 2LN 2K OHM SMD |
2,291 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power, Signal Line | 2 | 2 kOhms @ 20 MHz | 330 µH @ 100 kHz | 300mA | 300mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212100CMC 10UH 300MA 2LN 1.2K OHM SMD |
1,302 | - |
|
Datasheet | Horizontal, 4 J-Lead | Signal Line | 2 | 1.2 kOhms @ 135 MHz | 10 µH @ 100 kHz | 300mA | 240mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
744212181CMC 180UH 300MA 2LN 1K OHM SMD |
121 | - |
|
Datasheet | Horizontal, 4 J-Lead | Signal Line | 2 | 1 kOhms @ 40 MHz | 180 µH @ 100 kHz | 300mA | 250mOhm | 80V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMS2-1-RCMC 25UH 5.35A 2LN SMD |
1,564 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 100 kHz | 5.35A | 5mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
AE5002CMC 100UH 100MA 2LN SMD AEC-Q200 |
8,899 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | 100 µH @ 100 kHz | 100mA | 4.2Ohm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

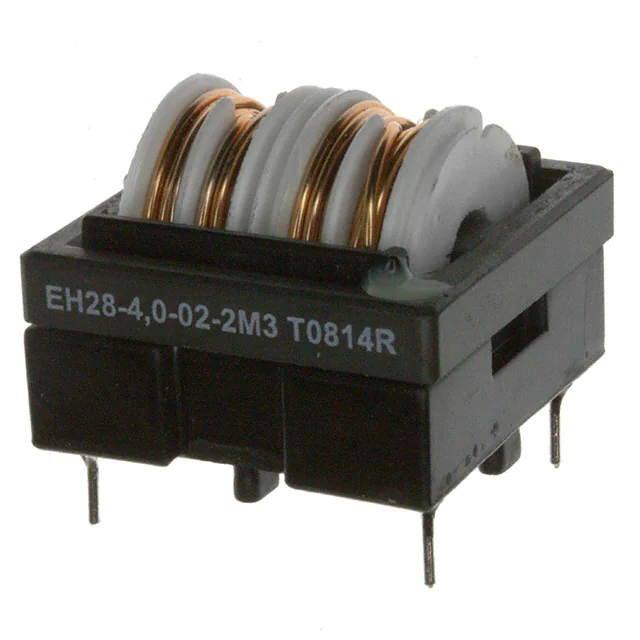

EH28-4.0-02-2M3CMC 2.3MH 4A 2LN TH |
789 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.3 mH @ 10 kHz | 4A | 40mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
744822222CMC 2.2MH 2A 2LN TH |
1,100 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 70mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744822301CMC 1MH 3A 2LN TH |
1,001 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 35mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

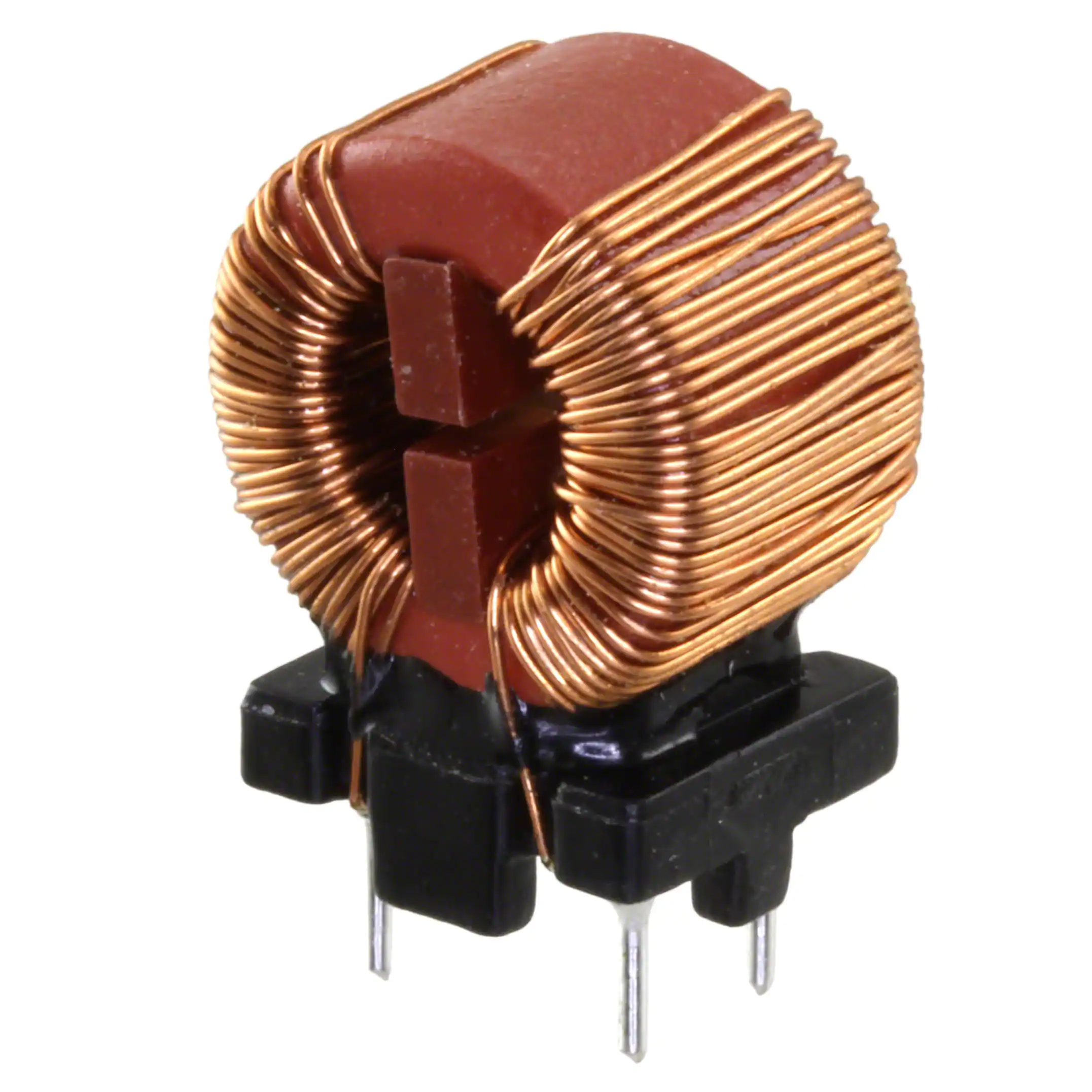

744822110CMC 10MH 1A 2LN TH |
365 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 360mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82721S0322A020CMC 1.32MH 3.2A 2LN SMD |
276 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 1.32 mH @ 10 kHz | 3.2A | 50mOhm | 80V | 48V | - | - | - | - | - | - |
|
744290560CMC 56UH 7A 2LN SMD |
1,809 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 56 µH @ 10 kHz | 7A | 4.7mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290104CMC 100MH 150MA 2LN SMD |
600 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 100 mH @ 10 kHz | 150mA | 8.5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82791G0014A016CMC 4.7MH 100MA 4LN TH |
320 | - |
|
Datasheet | Horizontal, 8 PC Pin | Signal Line | 4 | - | 4.7 mH @ 10 kHz | 100mA | 850mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744290683CMC 68MH 200MA 2LN SMD |
130 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Power, Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

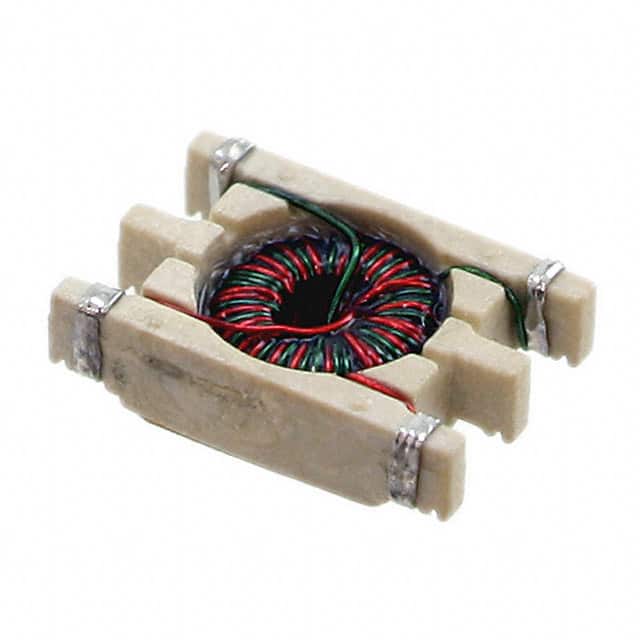

PE-68624NLCMC 2LN SMD |
248 | - |
|
Datasheet | Vertical, 6 Flat Lead | Signal Line | 2 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
DKFS-6248-D504CMC 500MA 2LN SMD |
322 | - |
|
Datasheet | 4-SMD | - | 2 | - | - | 500mA | 500mOhm | - | 250V | -25°C ~ 100°C | - | UR | - | - | - |
