DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

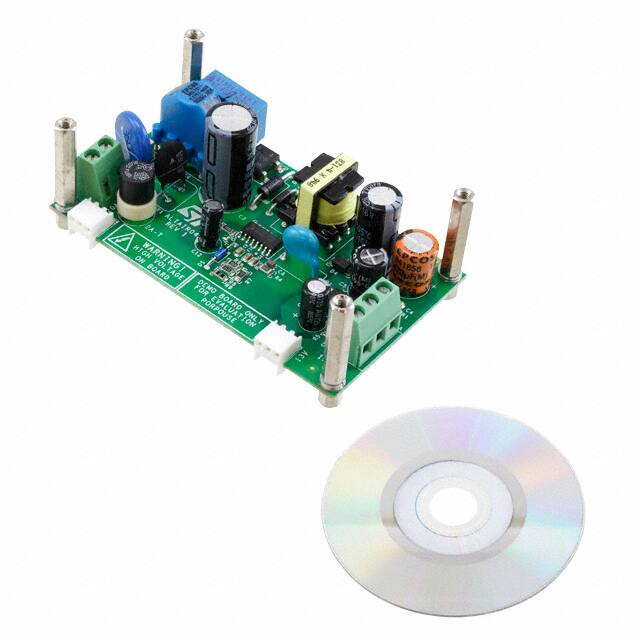

EVLALTAIR900-M1EVAL BOARD FOR ALTAIR04900 |
2,823 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 7.48 W | 3.3V, 13V | 550mA, 100mA | 85 ~ 265 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|

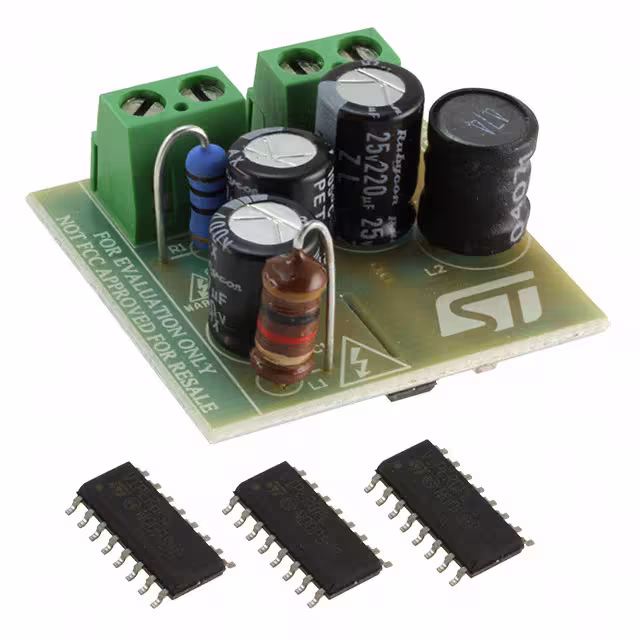

STEVAL-ISA179V1EVAL BOARD FOR VIPER0P |
4,446 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 2.25 W | 15V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | VIPer0P |
|
STEVAL-ISA021V1EVAL BOARD FOR VIPER22A |
1,132 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 10 W | 12V | 840mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer22A |
|

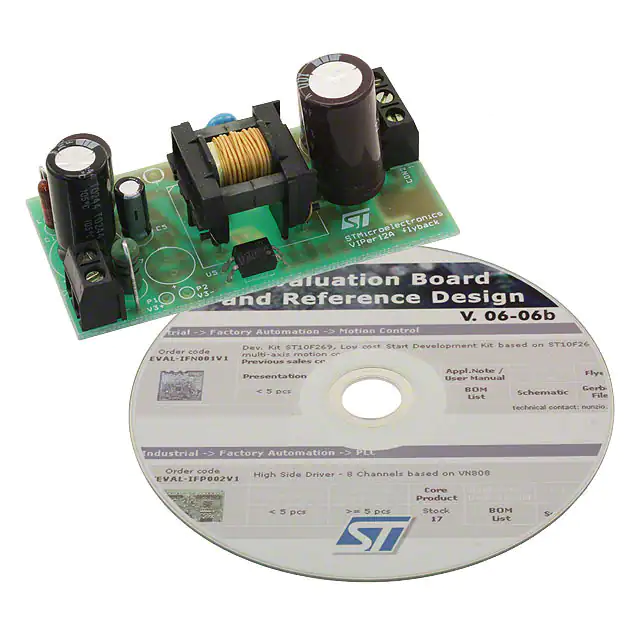

STEVAL-ISA022V1EVAL BOARD FOR VIPER12A |
2,061 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 5.5 W | 5V, 15V | 500mA, 200mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
ST1S06DEMOBO12EVAL BOARD FOR ST1S06PM12R |
1,912 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06PM12R |
|
|
ST1S06DEMOBO33EVAL BOARD FOR ST1S06PM33R |
2,374 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06PM33R |
|

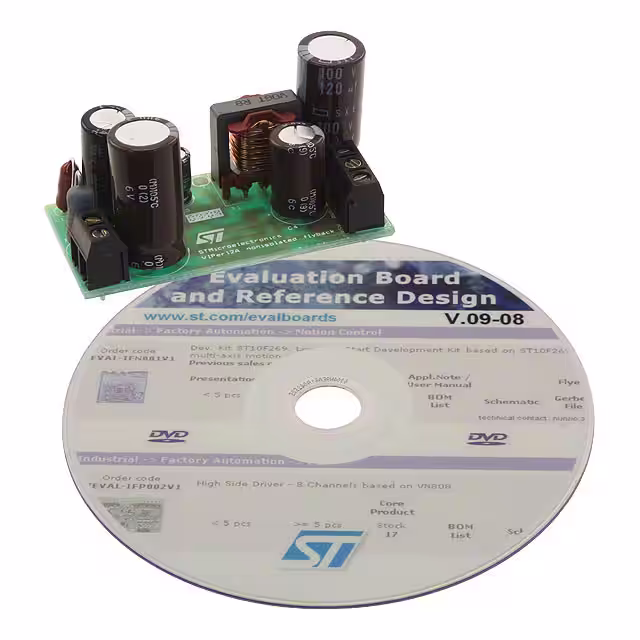

STEVAL-ISA006V1EVAL BOARD FOR VIPER12A |
2,158 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 5.5 W | 5V, 15V | 500mA, 200mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|

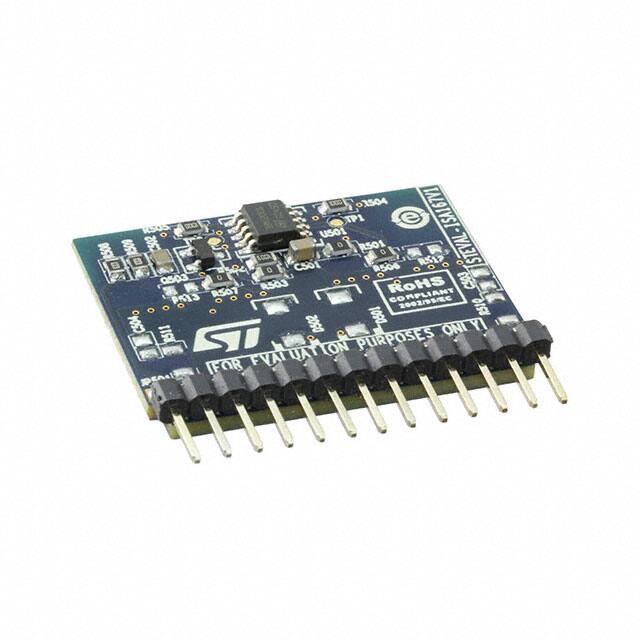

STEVAL-ISA167V1EVAL BOARD FOR SRK2001 STL85N6F3 |
3,502 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STL85N6F3 |
|

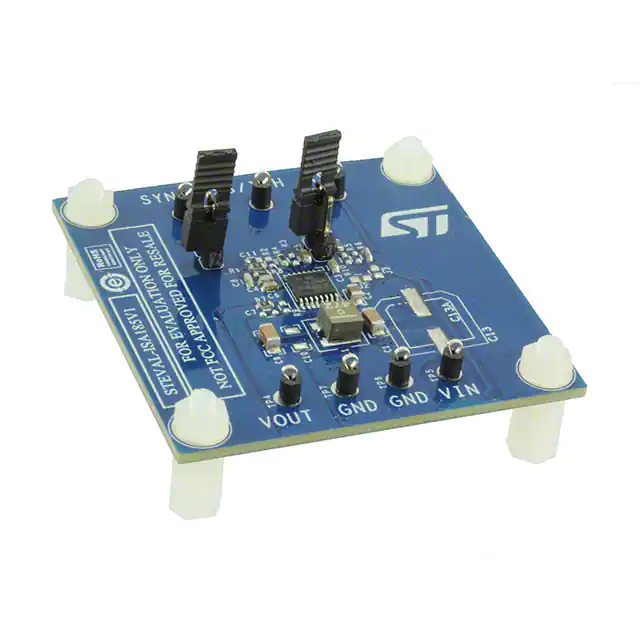

STEVAL-ISA185V1EVAL BOARD FOR A6985F3V3 |
2,121 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4V ~ 38V | Buck | 2MHz | Board(s) | A6985F3V3 |
|
|
ST1S10DEMOBOARDEVAL BOARD FOR ST1S10 |
2,510 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 15.3V | 3A | 2.5V ~ 18V | Buck | - | Board(s) | ST1S10 |
