DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

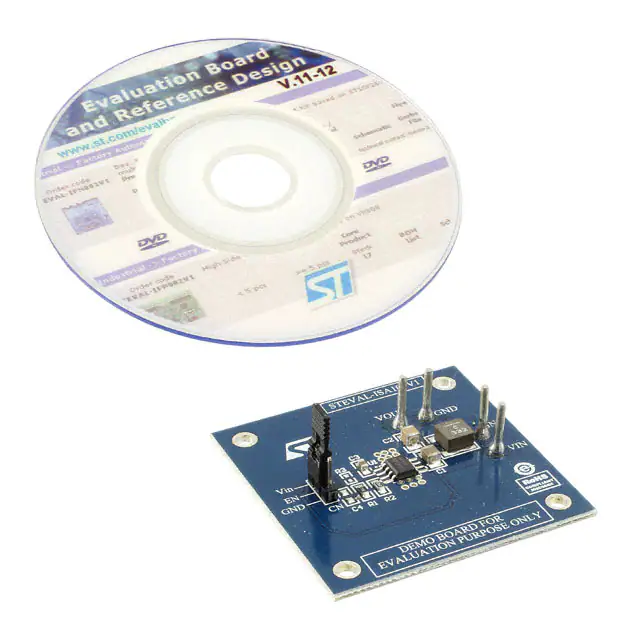

STEVAL-ISA107V1EVAL BOARD FOR ST1S41 |
4,690 | - |
|
Datasheet | - | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4V ~ 18V | Buck | 850kHz | Board(s) | ST1S41 |
|

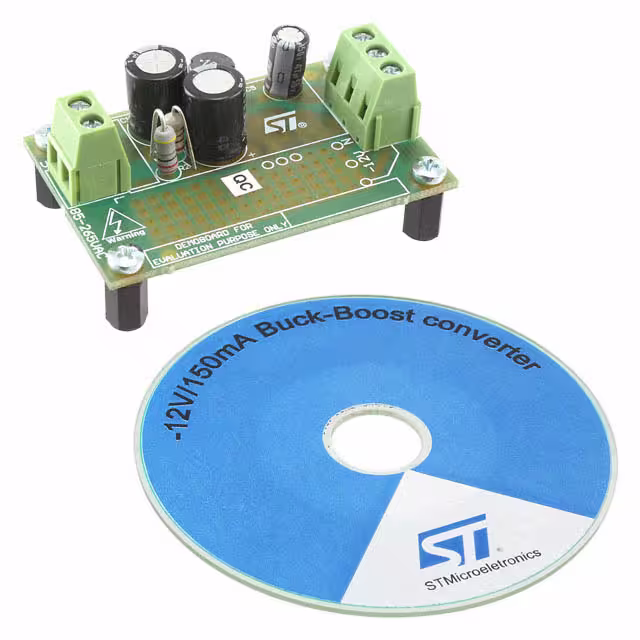

STEVAL-ISA096V1EVAL BOARD FOR VIPER06 |
1,297 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2 W | 12V | 150mA | 85 ~ 264 VAC | Buck-Boost | - | Board(s) | VIPer06 |
|

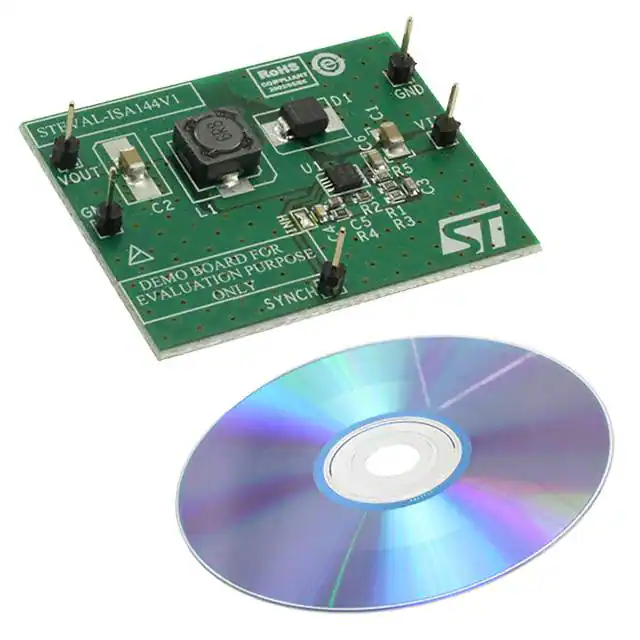

STEVAL-ISA144V1EVAL BOARD FOR L5983 |
2,423 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.9V ~ 18V | Buck | 250kHz | Board(s) | L5983 |
|
STEVAL-ISA177V1EVAL BOARD FOR VIPER01 |
1,770 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 4.25 W | - | 850mA | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer01 |
|

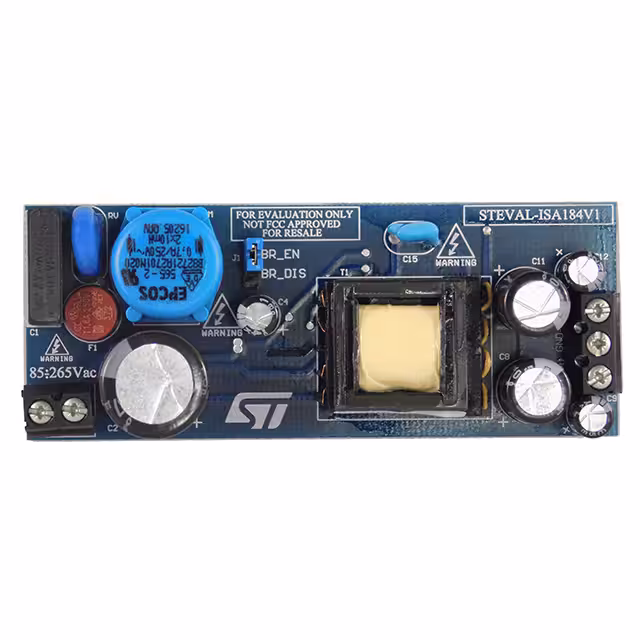

STEVAL-ISA184V1EVAL BOARD FOR VIPER37 |
1,277 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 15 W | 5V, 12V | 1.2A, 750mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer37 |
|
STEVAL-ILL069V2EVAL BOARD FOR HVLED001A |
2,292 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 35 W | 48V | 730mA | 90 ~ 305 VAC | Flyback | - | Board(s) | HVLED001A |
|

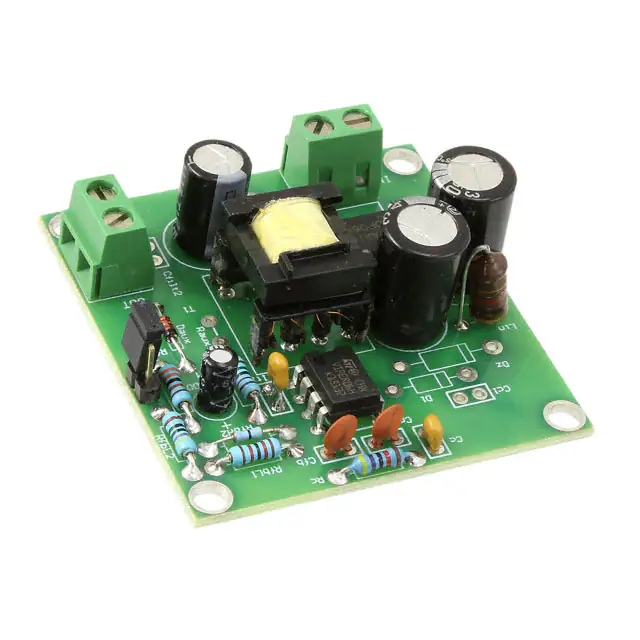

STEVAL-ISA112V1EVAL BOARD FOR VIPER06 |
3,131 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 4 W | 12V | 350mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer06 |
|
EVAL-L5963EVAL BOARD FOR L5963 |
2,563 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 250mA | 3.5V ~ 26V | Buck | - | Board(s) | L5963 |
|
STEVAL-ISA081V1EVAL BOARD FOR VIPER26 |
3,317 | - |
|
Datasheet | VIPER™ | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 12 W | 3.3V, 12V | 1A | 85 ~ 305 VAC | Buck | - | Board(s) | VIPer26 |
|

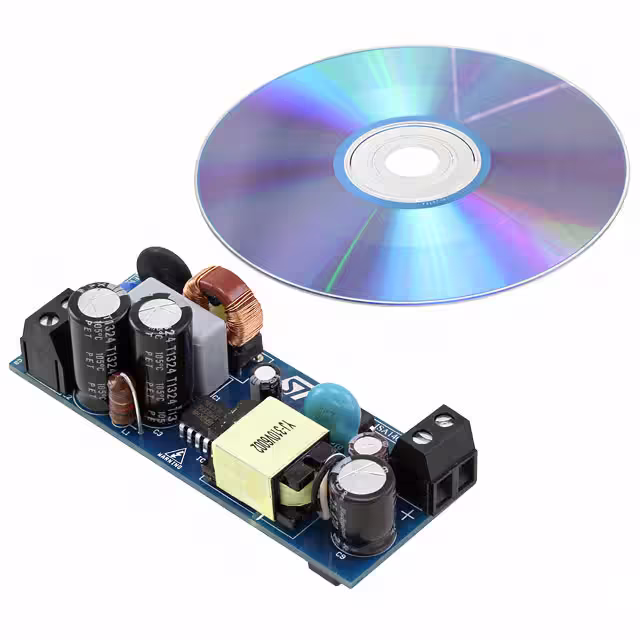

STEVAL-ISA140V1EVAL BOARD FOR VIPER37 |
1,462 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 15 W | 12V | 1.25A | 100 ~ 265 VAC | - | - | Board(s) | VIPer37 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
