DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-L6981CDREVAL BOARD L6981CDR L6983CQTR |
3,585 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 1.5A | 3.5V ~ 38V | Buck | 400kHz | Board(s) | L6981CDR, L6983CQTR |
|
STEVAL-ISA044V6EVAL BOARD FOR ST1S10 |
3,469 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.5V ~ 18V | Buck | 900kHz | Board(s) | ST1S10 |
|
STEVAL-ISA195V1EVAL BOARD FOR VIPER115XS |
1,280 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 350mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | VIPer115XS |
|
STEVAL-ISA108V1EVAL BOARD FOR ST1S41 |
4,953 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4V ~ 18V | Buck | 850kHz | Board(s) | ST1S41 |
|
STEVAL-ISA149V1EVAL BOARD FOR L6563S L6566A |
1,702 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563S, L6566A |
|

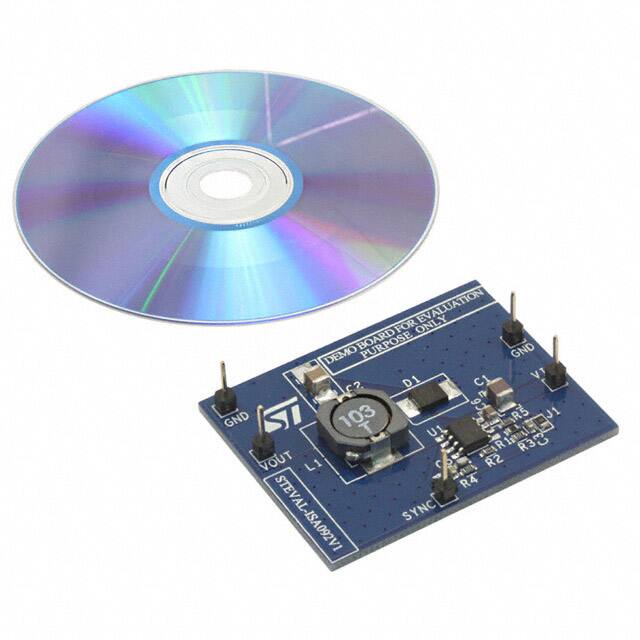

STEVAL-ISA092V1EVAL BOARD FOR L7980 |
2,317 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7980 |
|

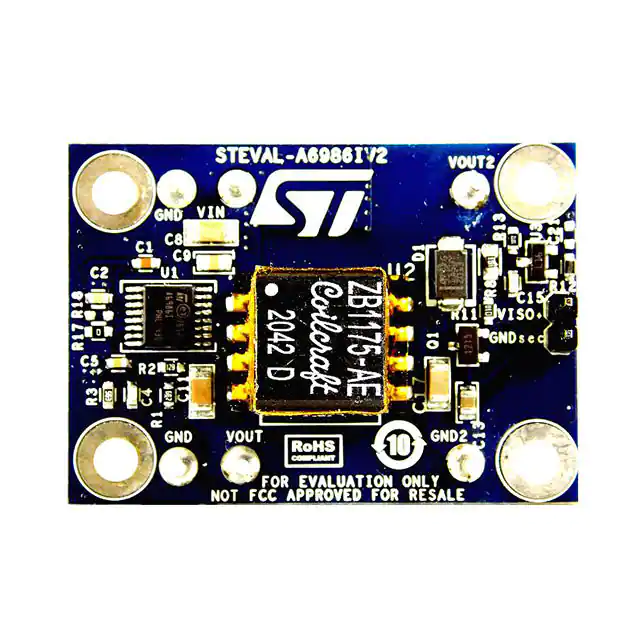

STEVAL-A6986IV2EVAL BOARD FOR A6986I |
4,893 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 5 W | 2.9V ~ 3.6V | - | 4V ~ 38V | Buck | - | Board(s) | A6986I |
|

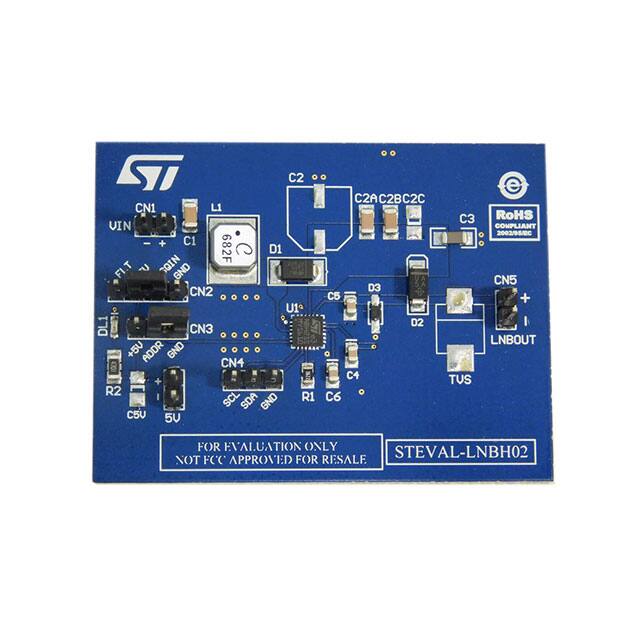

STEVAL-LNBH02EVAL BOARD FOR LNBH25S |
3,492 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25S |
|

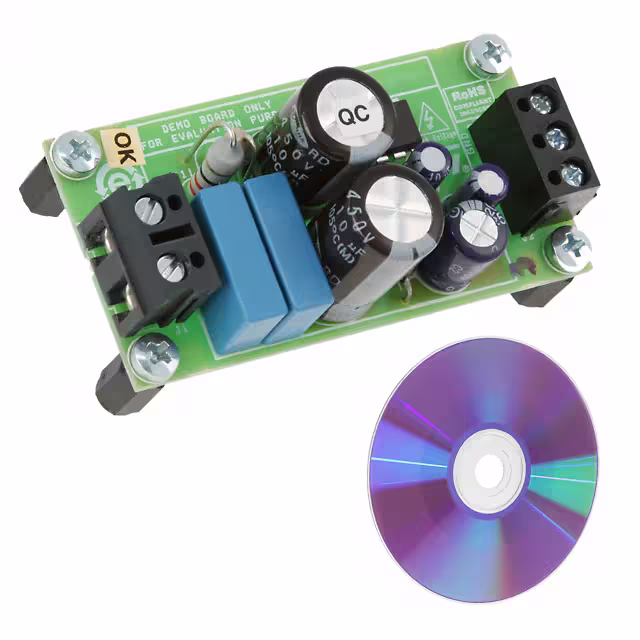

STEVAL-ISA010V1EVAL BOARD FOR VIPER16 |
1,092 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 2.55 W | 5V, 12V | 150mA, 100mA | 85 ~ 500 VAC | Buck | 60kHz | Board(s) | VIPer16 |
|

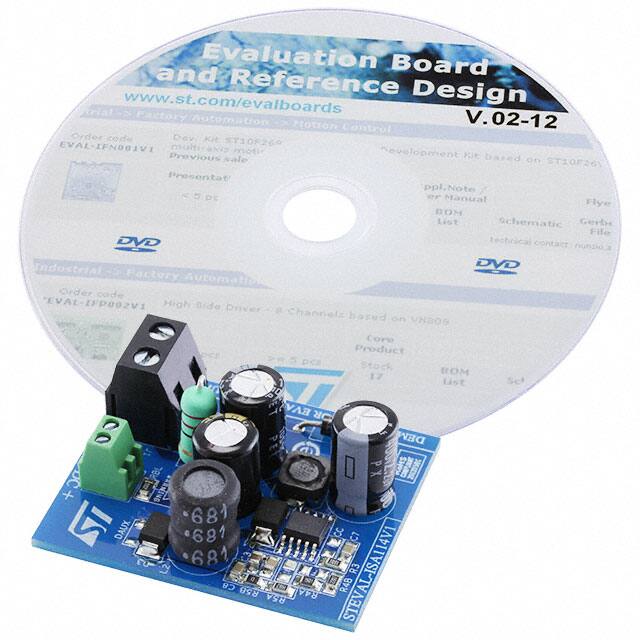

STEVAL-ISA114V1EVAL BOARD FOR VIPER06 |
1,010 | - |
|
Datasheet | VIPER™ | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 80 mW | 5V | 160mA | 80 ~ 265 VAC | Buck | 30kHz | Board(s) | VIPer06 |
