DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

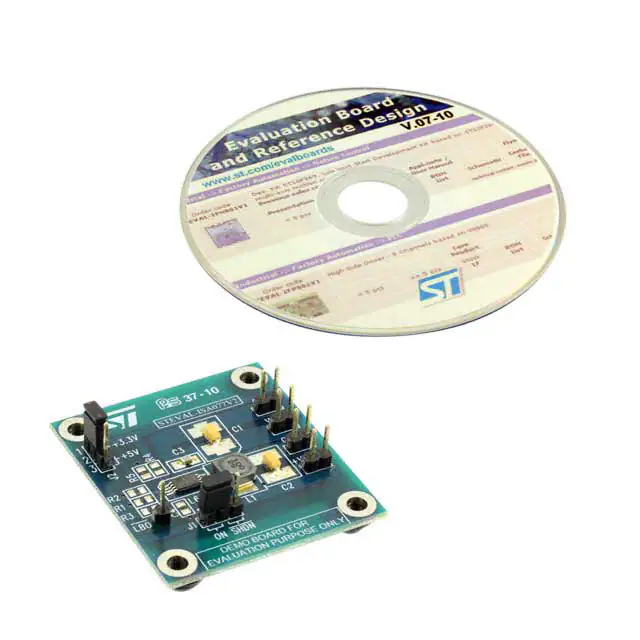

STEVAL-ISA077V2EVAL BOARD FOR L6920 |
4,969 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2V ~ 5.2V | - | 0.6V ~ 5.5V | Boost | - | Board(s) | L6920 |
|

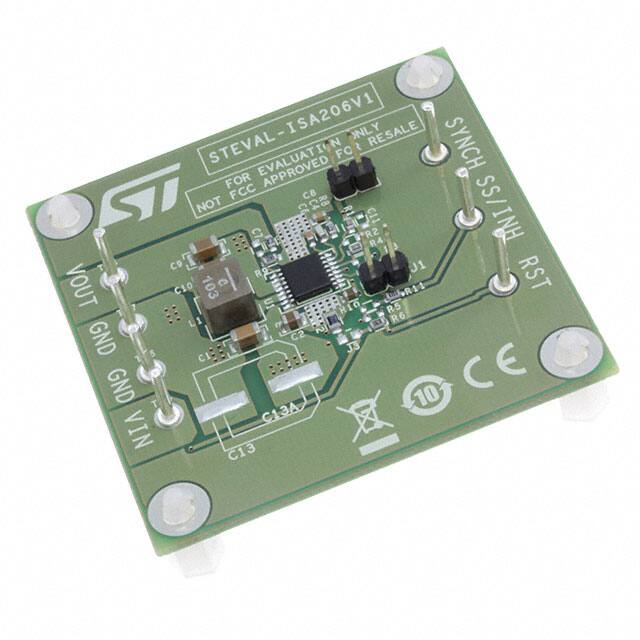

STEVAL-ISA206V1EVAL BOARD FOR L6986H |
1,157 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 38V | Buck | 500kHz | Board(s) | L6986H |
|

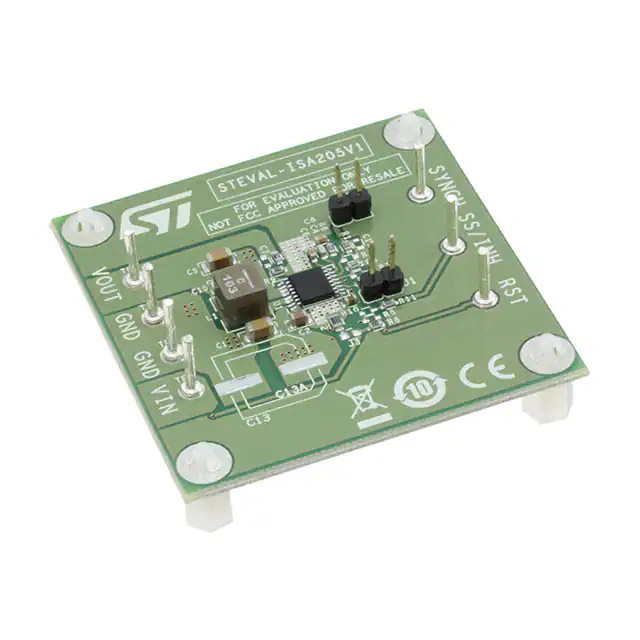

STEVAL-ISA205V1EVAL BOARD FOR A6986H |
2,860 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986H |
|

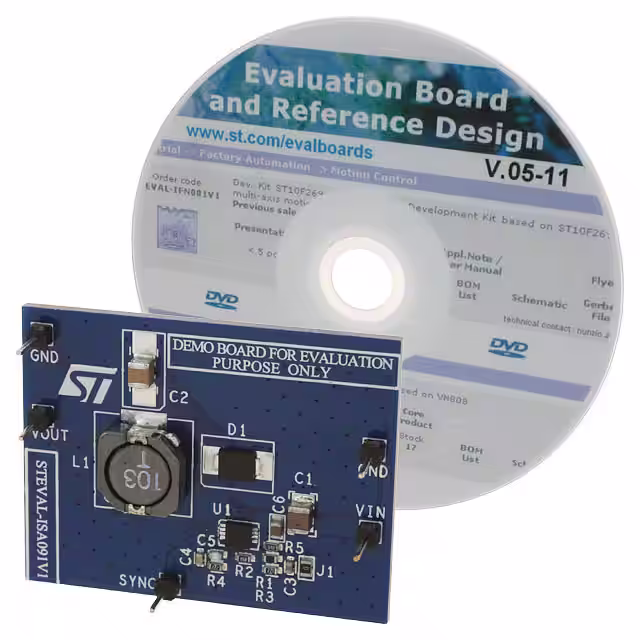

STEVAL-ISA091V1EVAL BOARD FOR L7980 |
2,447 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.5V ~ 28V | Buck | 250kHz | Board(s) | L7980 |
|

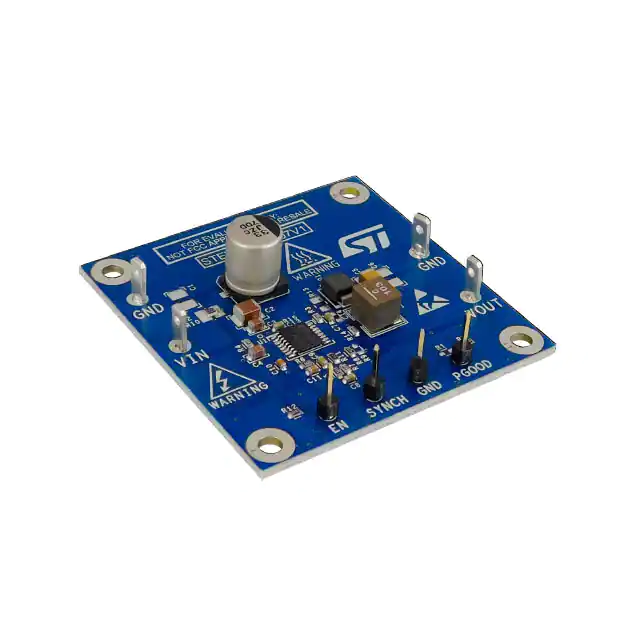

STEVAL-ISA207V1EVAL BOARD FOR A7987 |
2,871 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 60V | Buck | 500kHz | Board(s) | A7987 |
|
STEVAL-LNBH01EVAL BOARD FOR LNBH25LS |
2,544 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25LS |
|

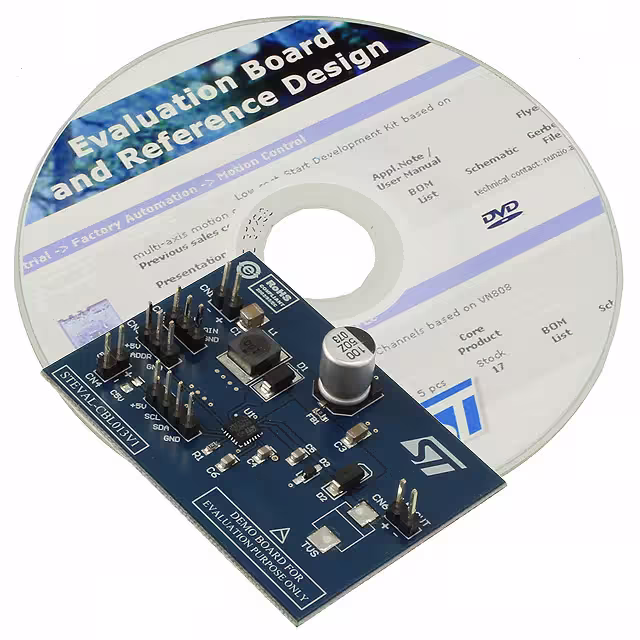

STEVAL-CBL013V1EVAL BOARD FOR LNBH25 |
1,579 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25 |
|

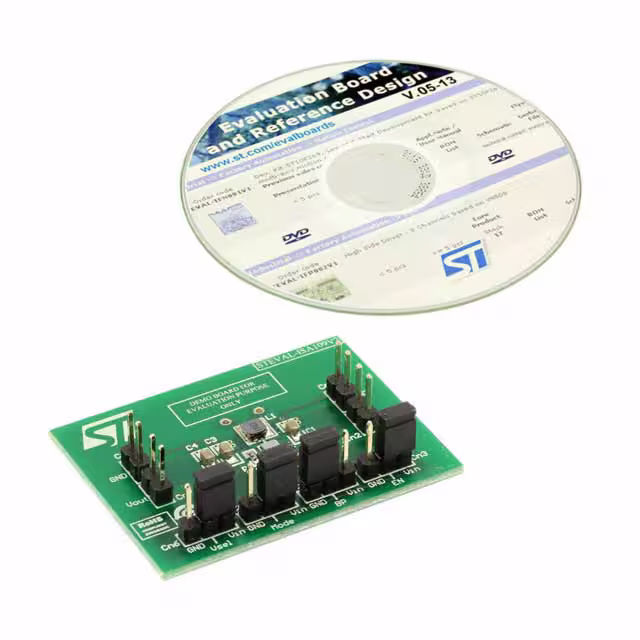

STEVAL-ISA109V2EVAL BOARD FOR STBB2 |
1,498 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|

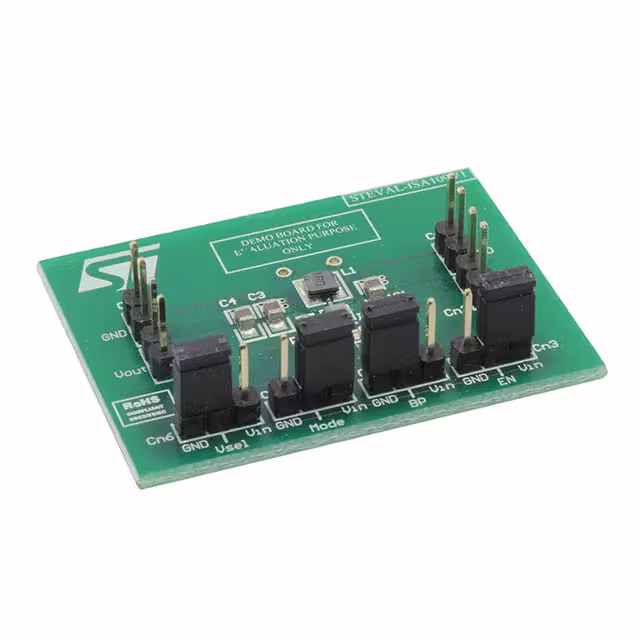

STEVAL-ISA109V1EVAL BOARD FOR STBB2 |
1,740 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 2.3V ~ 5.5V | Buck-Boost | 3MHz | Board(s) | STBB2 |
|
STEVAL-ISA178V1EVAL BOARD FOR VIPER01 |
3,207 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | - | 5V | 200mA | 85 ~ 265 VAC | Buck | 60kHz | Board(s) | VIPer01 |
