DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

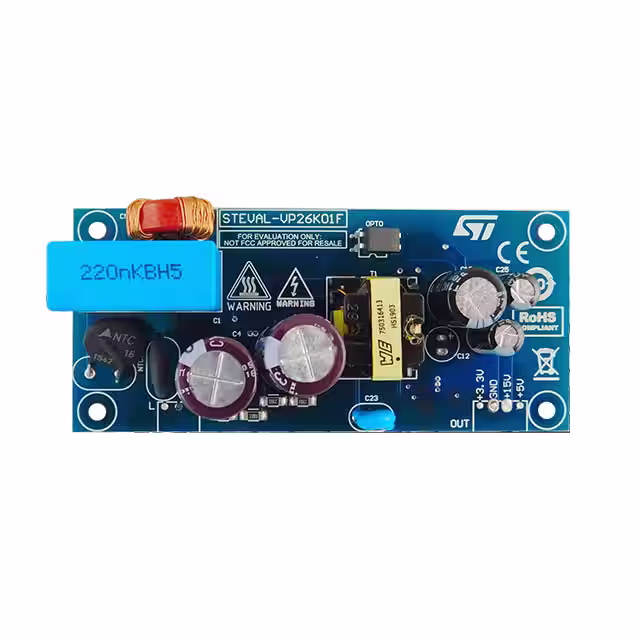

STEVAL-VP26K01FEVAL BOARD FOR VIPER267KDTR |
3,142 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 3 Isolated Outputs | - | 3.3V, 5V, 15V | 100mA, 60mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPER267KDTR |
|

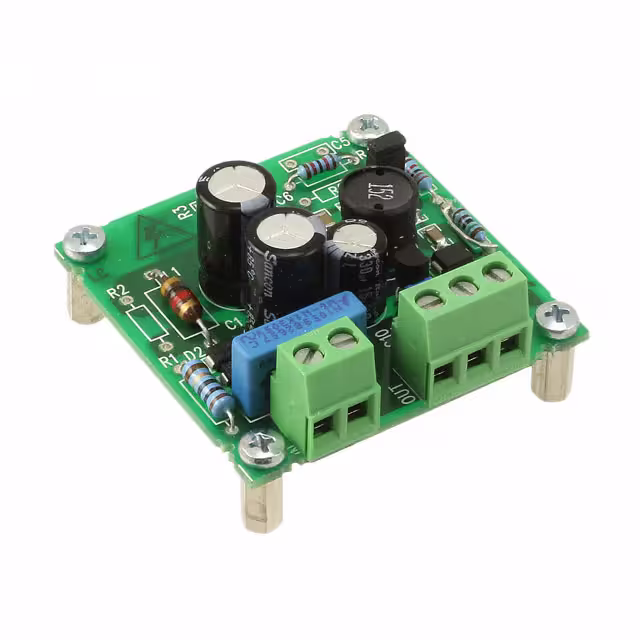

STEVAL-ISA119V1EVAL BOARD FOR VIPER16 |
1,490 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 1.5 W | 5V, 12V | 100mA, 50mA | 90 ~ 265 VAC | Buck | 60kHz | Board(s) | VIPer16 |
|
STEVAL-ISA035V1EVAL BOARD FOR VIPER22A |
3,773 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 4.2 W | 12V | 350mA | 85 ~ 264 VAC | Buck | 60kHz | Board(s) | VIPer22A |
|
STEVAL-ISA118V1EVAL BOARD FOR VIPER16 |
2,928 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 6 W | - | - | - | Flyback | - | Board(s) | VIPer16 |
|
EVAL-L5963QEVAL BOARD FOR L5963 |
3,536 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 250mA | 3.5V ~ 26V | Buck | - | Board(s) | L5963 |
|
STEVAL-ISA018V1EVAL BOARD FOR L6599 |
3,101 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 150 W | 24V | 6A | 85 ~ 265 VAC | Resonant | - | Board(s) | L6599 |
|
STEVAL-ISA062V1EVAL BOARD FOR VIPER17 |
4,867 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 5.5 W | 5V, 12V | 500mA, 250mA | 85 ~ 264 VAC | Flyback | 115kHz | Board(s) | VIPer17 |
|
STEVAL-ISA105V1EVAL BOARD FOR ALTAIR04900 |
3,743 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 3 Isolated Outputs | - | 3.3V, 5V, 5V ,12V | 1A, 150mA, 100mA, 80mA | 90 ~ 265 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|

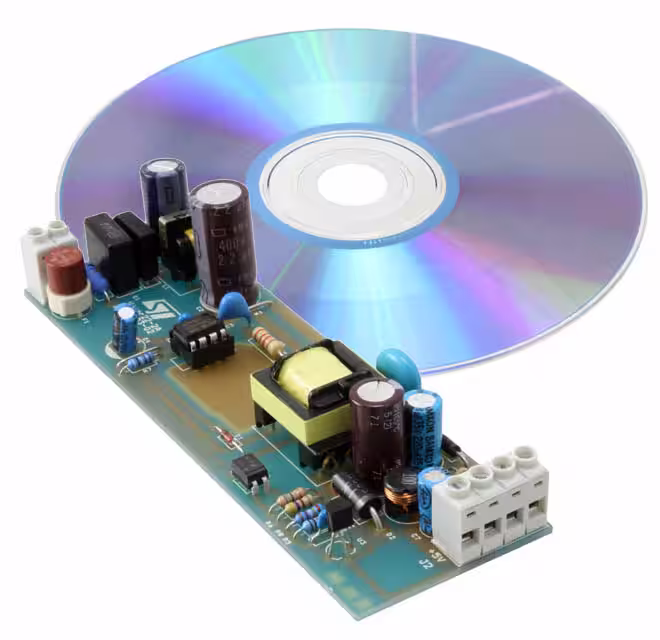

STEVAL-ISA004V1EVAL BOARD FOR VIPER22A |
3,163 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Primary Side | 2 Isolated Outputs | 10 W | 5V, 12V | 1A, 420mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer22A |
|
EVL6566B-65WEVAL BOARD FOR L6566B |
1,687 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 12V | 5.4A | 90 ~ 265 VAC | Flyback | 80kHz | Board(s) | L6566B |
