DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ISA174V1EVAL BOARD FOR VIPER0P |
1,205 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 7V, -5V | 840mA, 400mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer0P |
|

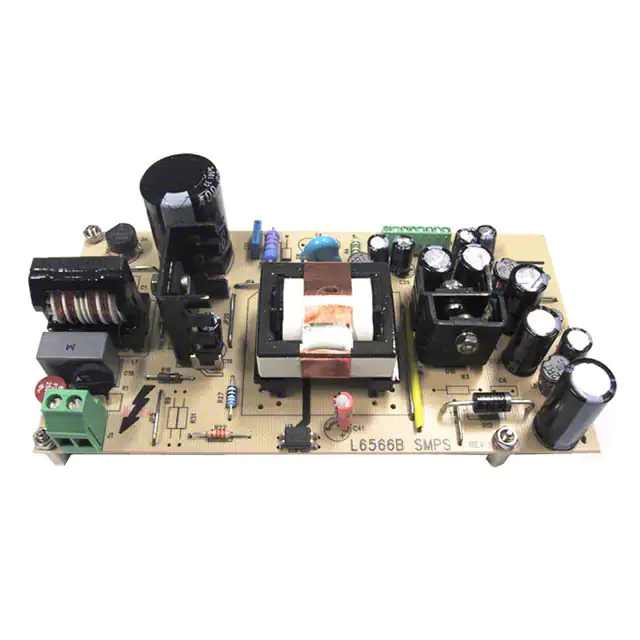

EVL6566B-40WSTBEVAL BOARD FOR L6566B |
1,054 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 4 Isolated Outputs | 40 W | 5V, 12V, 1.8V, 3.3V | 2.4A, 1.9A, 1.73A, 500mA | 90 ~ 264 VAC | Flyback | 62kHz | Board(s) | L6566B |
|

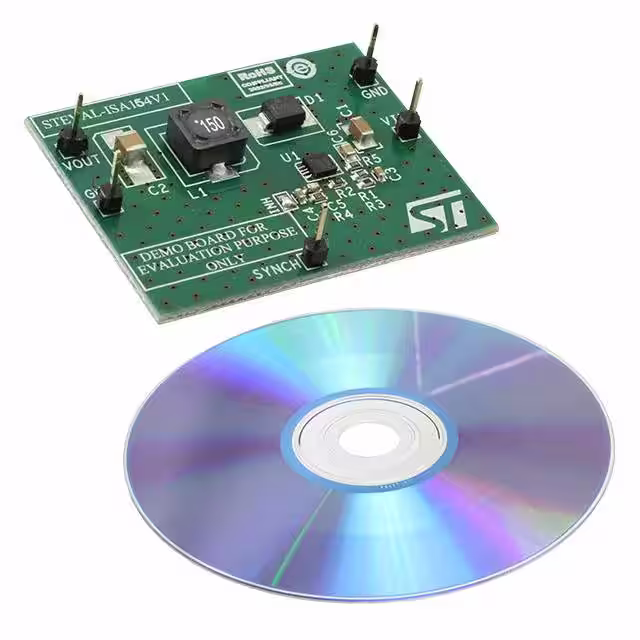

STEVAL-ISA154V1EVAL BOARD FOR L5980 |
2,548 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 700mA | 2.9V ~ 18V | Buck | 500kHz | Board(s) | L5980 |
|
STEVAL-ISA043V2EVAL BOARD FOR ST1S06 |
1,123 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.7V ~ 6V | Buck | 1.5MHz | Board(s) | ST1S06 |
|

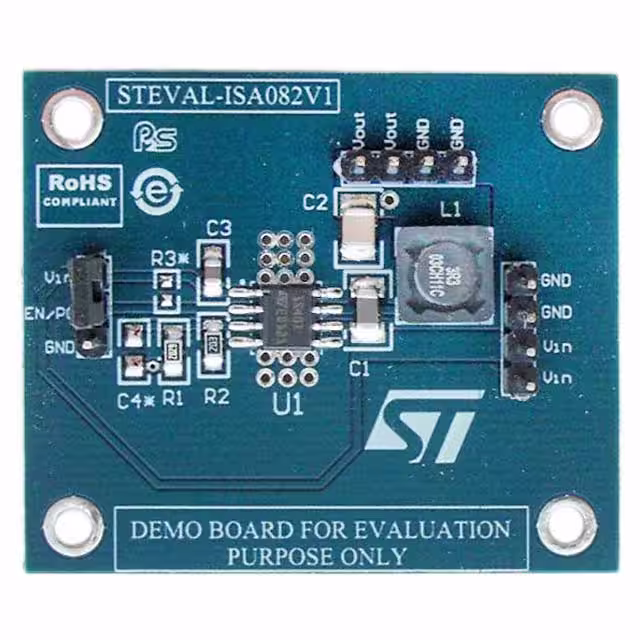

STEVAL-ISA082V1EVAL BOARD FOR ST1S40IPHR |
2,903 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Buck | 800kHz | Board(s) | ST1S40IPHR |
|

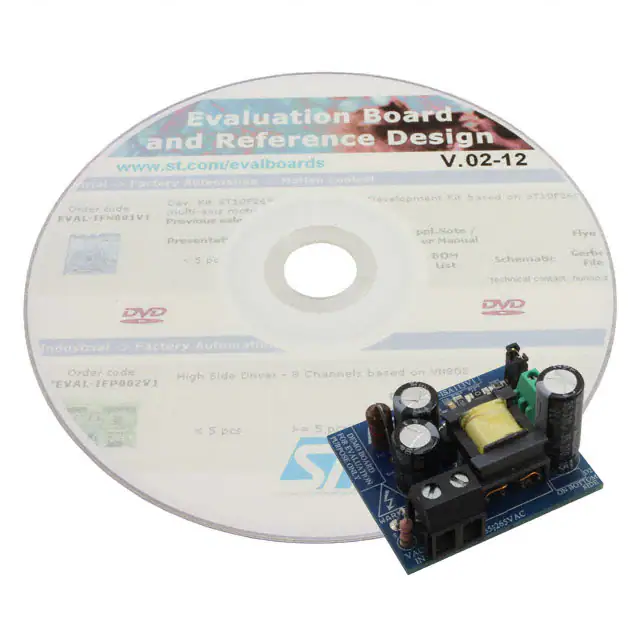

STEVAL-ISA113V1EVAL BOARD FOR VIPER06 |
2,144 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 12V | 350mA | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPer06 |
|

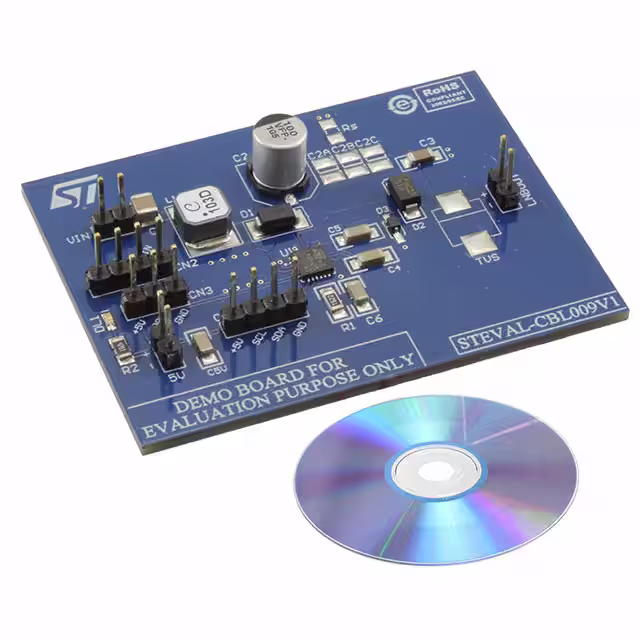

STEVAL-CBL009V1EVAL BOARD FOR LNBH25 |
1,014 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25 |
|

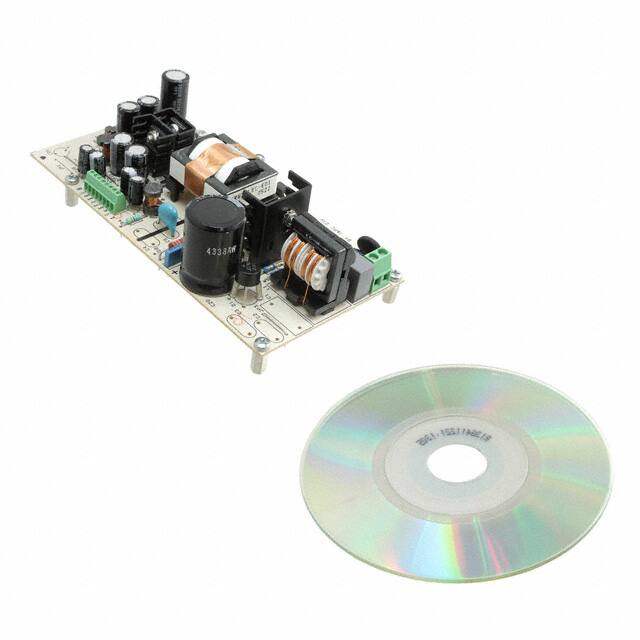

EVAL6668-STBEVAL BOARD FOR L6668 |
3,588 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 4 Isolated Outputs | 40 W | 5V, 12V, 1.8V, 3.3V | 2.4A, 1.9A, 1.73A, 500mA | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | L6668 |
|

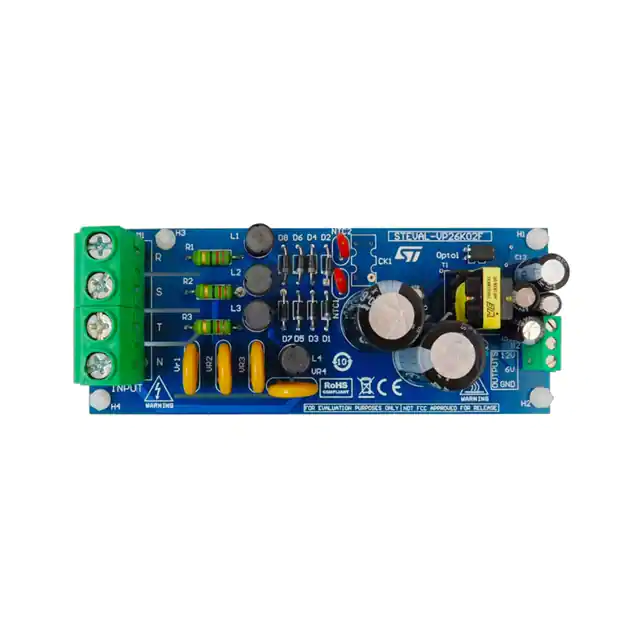

STEVAL-VP26K02FEVAL BOARD FOR VIPER267KDTR |
1,715 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 9.6 W | 6V, 12V | 700mA, 200mA | 50 ~ 290 VAC | Flyback | - | Board(s) | VIPER267KDTR |
|
STEVAL-ISA047V1EVAL BOARD FOR ST1S03A |
4,579 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1.5A | 3V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S03A |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
