DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

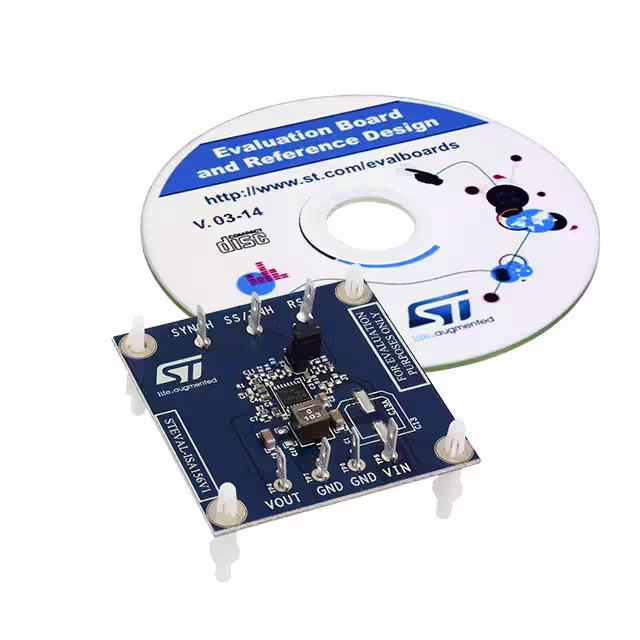

STEVAL-ISA156V1BOARD EVAL FOR L69 |
2,252 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 38V | Buck | - | Board(s) | - |
|
STEVAL-ISA182V1EVAL BOARD FOR VIPER38 |
4,523 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 8.4 W | 12V | 700mA | 85 ~ 132 VAC | Flyback | 115kHz | Board(s) | VIPer38 |
|

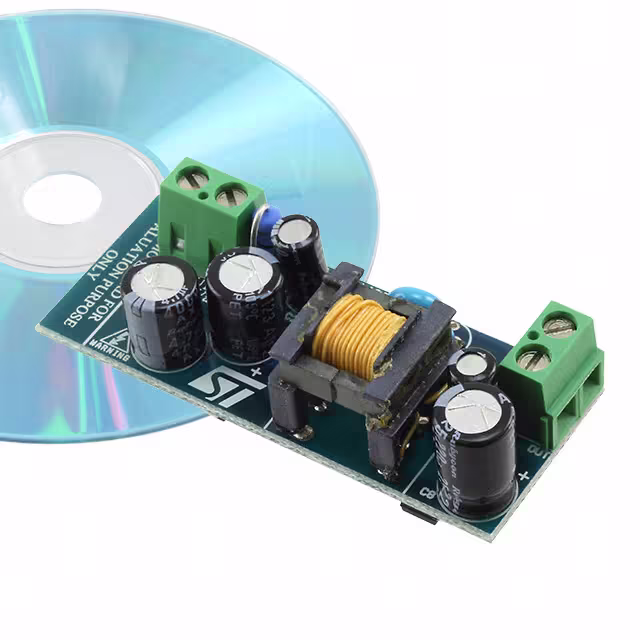

STEVAL-ISA135V1EVAL BOARD FOR VIPER06 |
1,834 | - |
|
Datasheet | VIPER™ | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 4 W | 12V | 333mA | 85 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer06 |
|

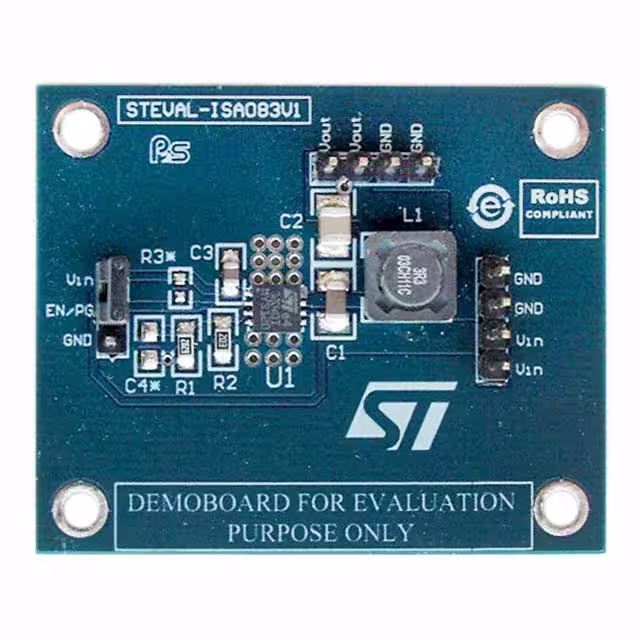

STEVAL-ISA083V1EVAL BOARD FOR ST1S40IPUR |
4,965 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 4V ~ 18V | Buck | 800kHz | Board(s) | ST1S40IPUR |
|

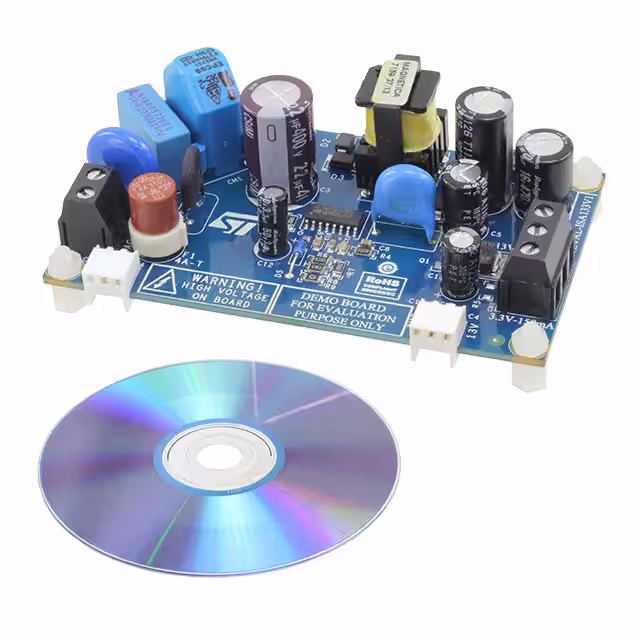

STEVAL-ISA133V1EVAL BOARD FOR ALTAIR04900 |
4,450 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 2 Isolated Outputs | 7.5 W | 3.3V, 13V | 550mA, 100mA | 90 ~ 264 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|

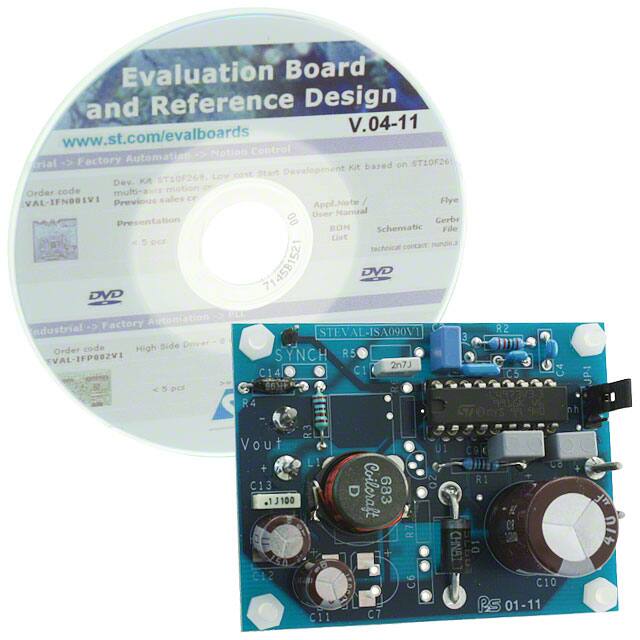

STEVAL-ISA090V1EVAL BOARD FOR L4973 |
2,051 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5.1V | 3.5A | 8V ~ 55V | Buck | 150kHz | Board(s) | L4973 |
|

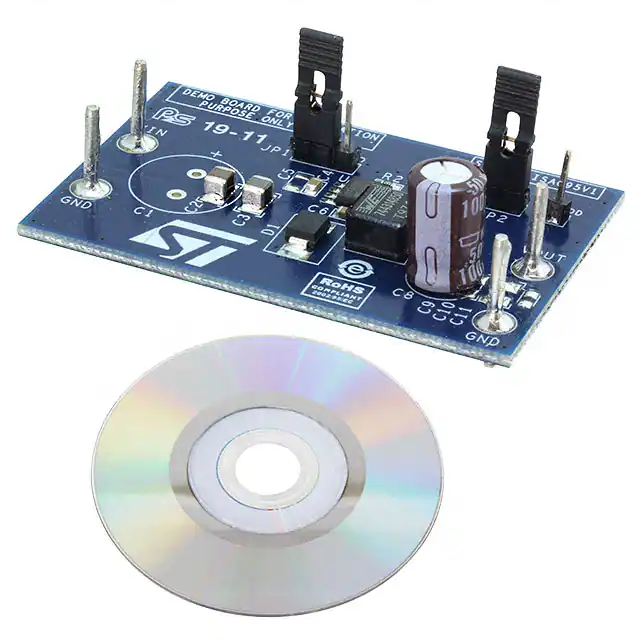

STEVAL-ISA095V1EVAL BOARD FOR ST1S14 |
3,572 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.22V | 3A | 5.5V ~ 48V | Buck | 850kHz | Board(s) | ST1S14 |
|
STEVAL-ISA193V2EVAL BOARD FOR STCH02 |
1,817 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | - | Board(s) | STCH02 |
|

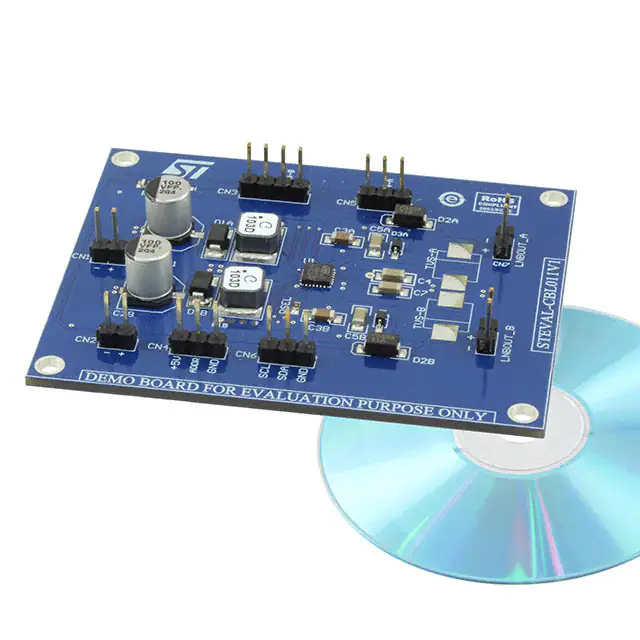

STEVAL-CBL011V1EVAL BOARD FOR LNBH26 |
3,951 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 15V | Boost | - | Board(s) | LNBH26 |
|
STEVAL-ISA130V1EVAL BOARD FOR VIPER06 |
2,968 | - |
|
Datasheet | VIPER™ | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 12V | 140mA | 85 ~ 265 VAC, 100V ~ 375V | Buck | 30kHz | Board(s) | VIPer06 |
