DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

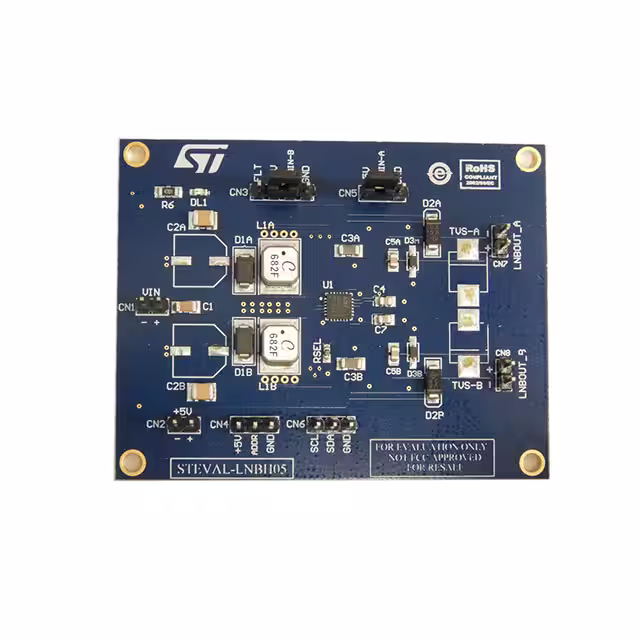

STEVAL-LNBH05EVAL BOARD FOR LNBH26S |
3,210 | - |
|
Datasheet | - | Bulk | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26S |
|

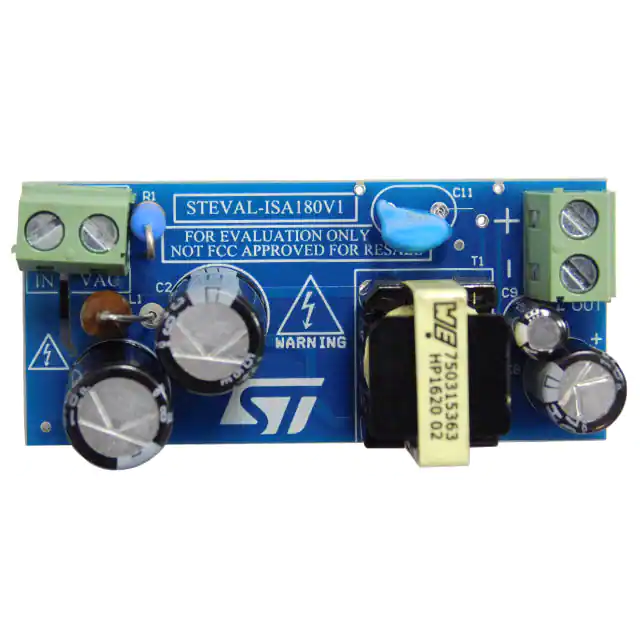

STEVAL-ISA180V1EVAL BOARD FOR VIPER0P |
3,413 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 7.2 W | 12V | 600mA | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer0P |
|

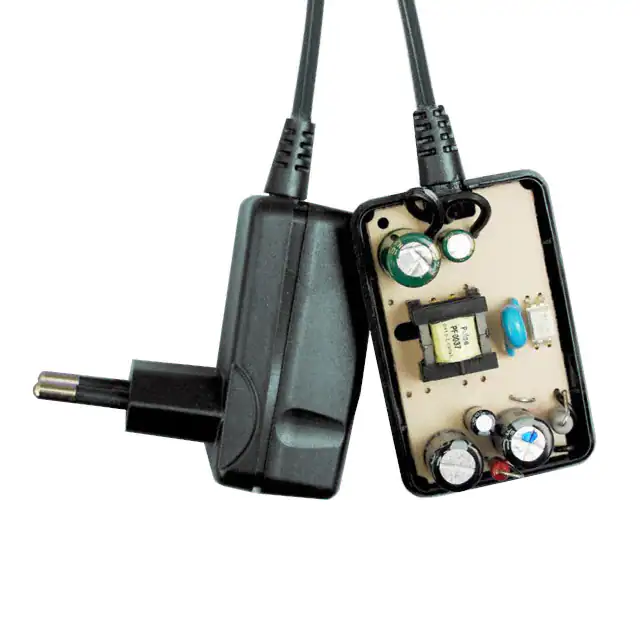

STEVAL-ISA014V1EVAL BOARD FOR VIPER12A |
2,105 | - |
|
Datasheet | VIPER™ | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 3.6 W | 6V | 600mA | 85 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPer12A |
|
EVAL6565NEVAL BOARD FOR L6565 |
3,071 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 30 W | 15V | 2A | 88 ~ 264 VAC | Flyback | 60kHz | Board(s) | L6565 |
|
STEVAL-ISA017V1EVAL BOARD FOR L6565 |
4,041 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 6 Non-Isolated Outputs | 17 W | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA | 88 ~ 135 VAC | Flyback | - | Board(s) | L6565 |
|
STEVAL-ISA016V1EVAL BOARD FOR L6565 |
1,993 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 6 Non-Isolated Outputs | 17 W | 1.23V, 2.5V, 3.3V, 5V, 8V, 12V | 1.7A, 1A, 700mA, 500mA, 450mA, 40mA | 185 ~ 265 VAC | Flyback | - | Board(s) | L6565 |
|

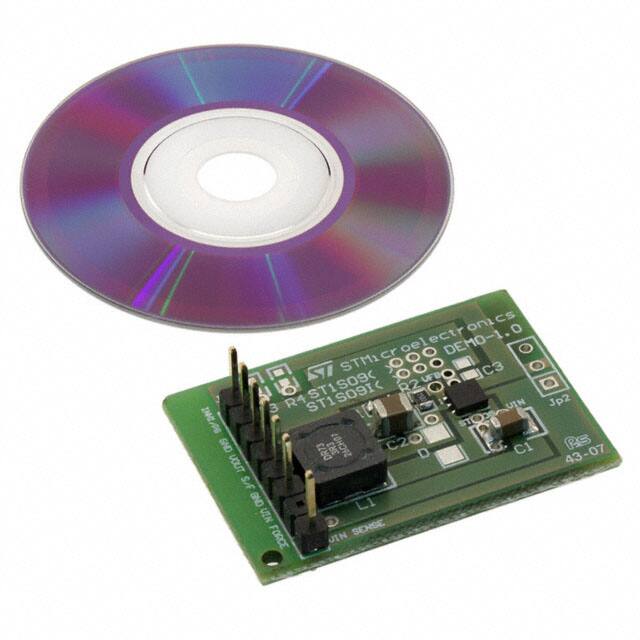

STEVAL-ISA046V2EVAL BOARD FOR ST1S09I |
4,840 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.7V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST1S09I |
|
|
STEVAL-ISA048V1EVAL BOARD FOR ST8R00 |
1,223 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | - | - | 6V ~ 12V | 1A | 4V ~ 6V | Boost | - | Board(s) | ST8R00 |
|

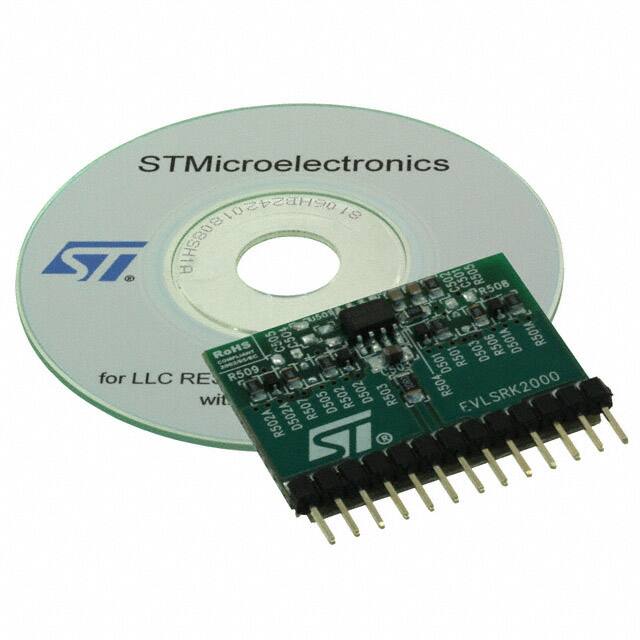

EVLSRK2000-S-40EVAL BOARD FOR SRK2000S40 |
1,841 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Secondary Side | - | - | - | - | - | Resonant | - | Board(s) | SRK2000-S-40 |
|

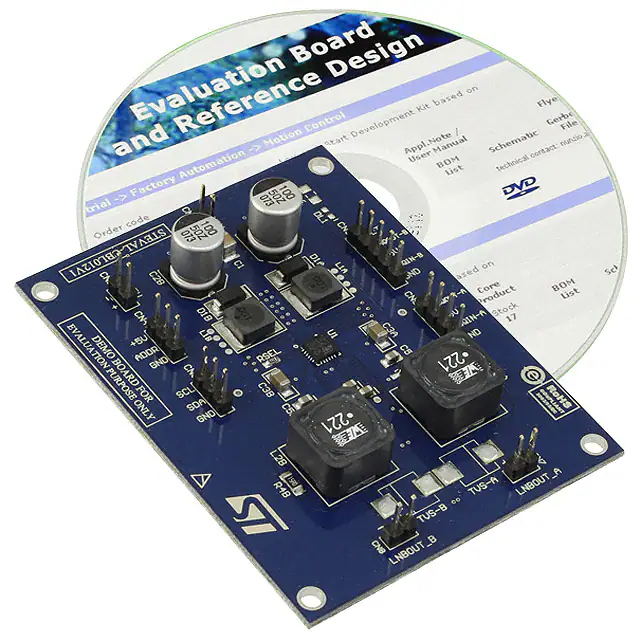

STEVAL-CBL012V1EVAL BOARD FOR LNBH26 |
1,946 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
