DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

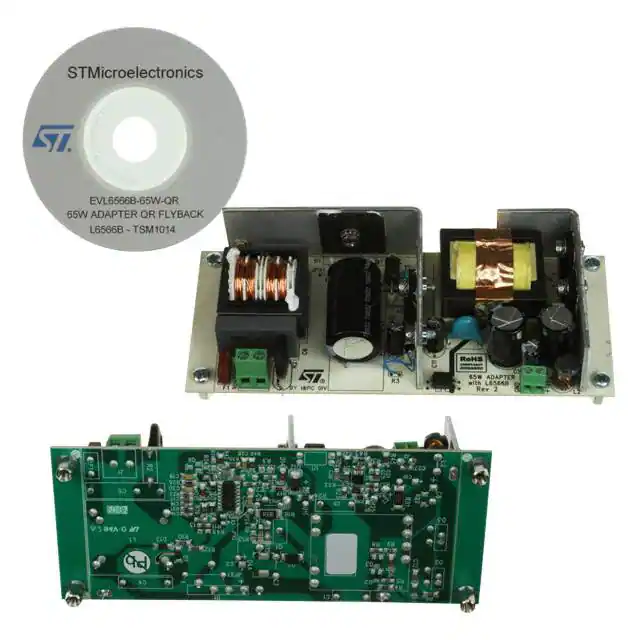

EVL6566B-65W-QREVAL BOARD FOR L6566B |
3,723 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | 165kHz | Board(s) | L6566B |
|

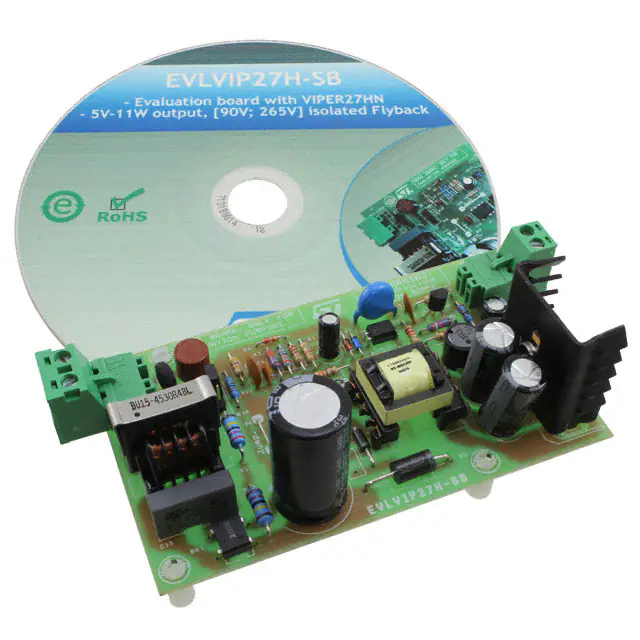

STEVAL-ISA122V1EVAL BOARD FOR VIPER27 |
4,237 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 11 W | 5V | 2.2A | 90 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer27 |
|

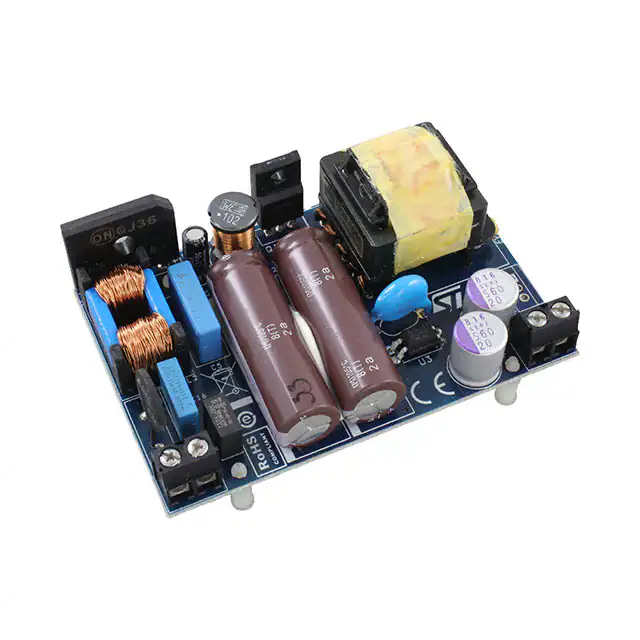

EVAL-STCH03-45WEVAL BOARD FOR STCH03 |
3,816 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 12V | 3.75A | 90 ~ 265VAC | Flyback | 154kHz | Board(s) | STCH03 |
|
EVLVIPGAN50FLEVAL BOARD FOR VIPERGAN50 |
3,039 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 50 W | 15V | 3.35A | 90 ~ 265 VAC | Flyback | - | Board(s) | VIPERGAN50 |
|
STEVAL-ISA211V1EVAL BOARD L6566BH STW12N170K5 |
3,484 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 100 W | - | - | 230 ~ 690 VAC, 250V ~ 1000V | Flyback | - | Board(s) | L6566BH, STW12N170K5 |
|

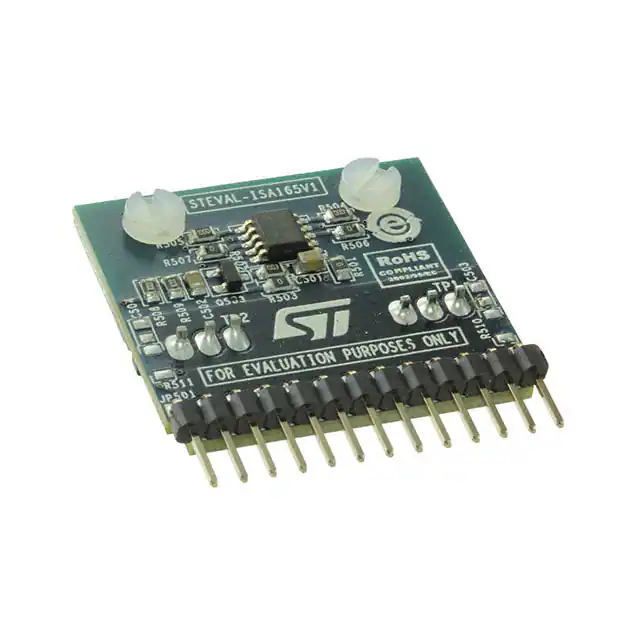

STEVAL-ISA165V1EVAL BOARD SRK2001 STP120N4F6 |
1,167 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 4.5V ~ 32V | Resonant | 500kHz | Board(s) | SRK2001, STP120N4F6 |
|
STEVAL-L7983ADJEVAL BOARD FOR L7983PUR |
3,912 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 300mA | 12V ~ 60V | Buck | 1MHz | Board(s) | L7983PUR |
|
STEVAL-L7983V50EVAL BOARD FOR L7983PU50R |
2,294 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 5V ~ 60V | Buck | 1MHz | Board(s) | L7983PU50R |
|

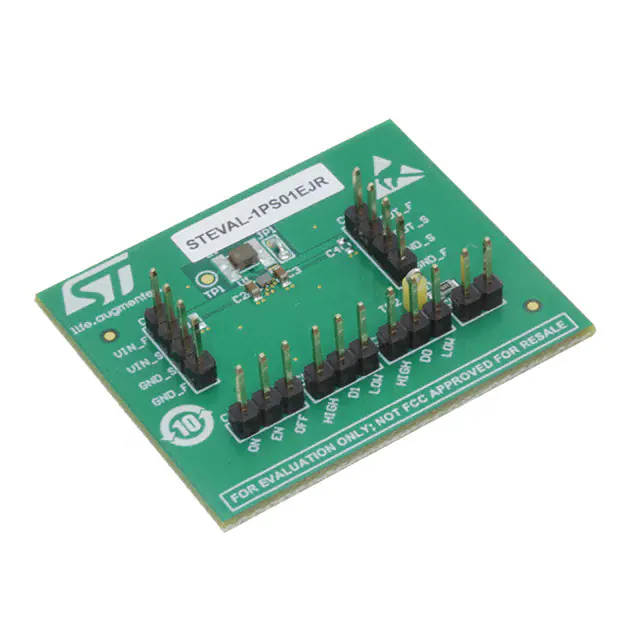

STEVAL-1PS01EJREVAL BOARD FOR ST1PS01 |
3,767 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 3.3V | 400mA | 1.8V ~ 5.5V | Buck | - | Board(s) | ST1PS01 |
|

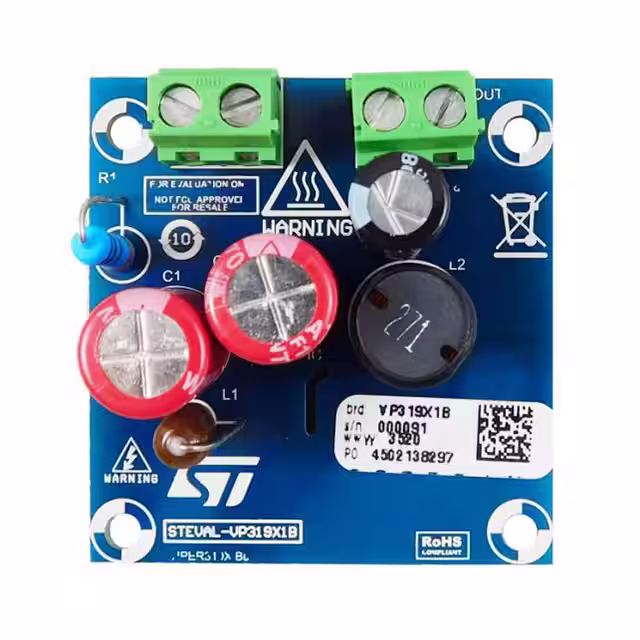

STEVAL-VP319X1BEVAL BOARD FOR VIPER319X |
2,306 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 3 W | 5V | 600mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | VIPer319X |
