DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

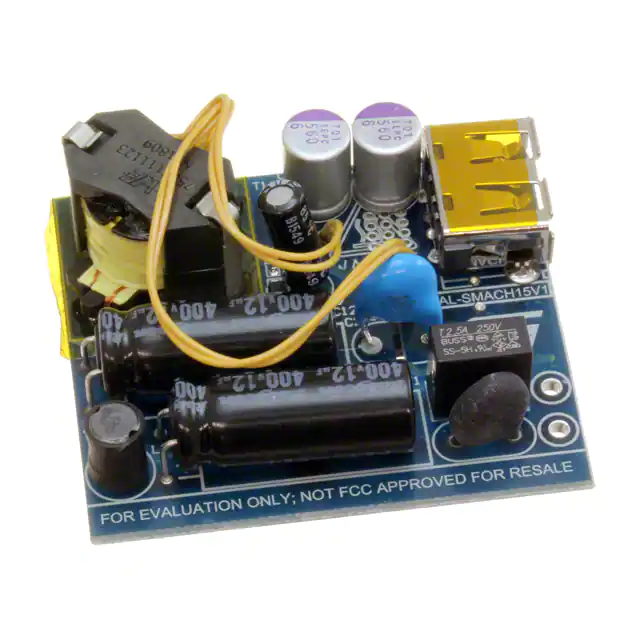

STEVAL-SMACH15V1EVAL BOARD FOR STCH03 |
1,923 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | - | 5V | 3A | 90 ~ 265 VAC | Flyback | 167kHz | Board(s) | STCH03 |
|

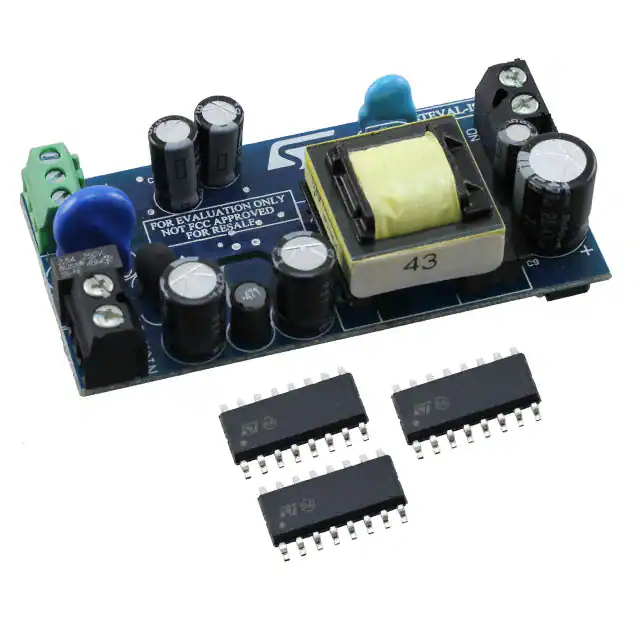

STEVAL-ISA183V1EVAL BOARD FOR VIPER35LD |
4,988 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output, 2 Non-Isolated Outputs | 16 W | 5V, 12V, 15V | 200mA, 200mA, 1A | 175 ~ 275 VAC | Flyback | 136kHz | Board(s) | VIPER35LD |
|

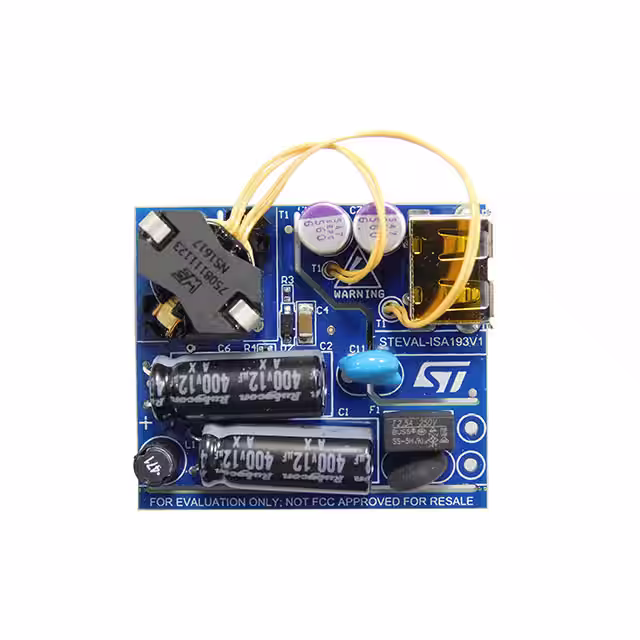

STEVAL-ISA193V1EVAL BOARD FOR STCH02 |
1,663 | - |
|
Datasheet | VIPER™ | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 15 W | 5V | 3A | 90 ~ 264 VAC | Flyback | - | Board(s) | STCH02 |
|

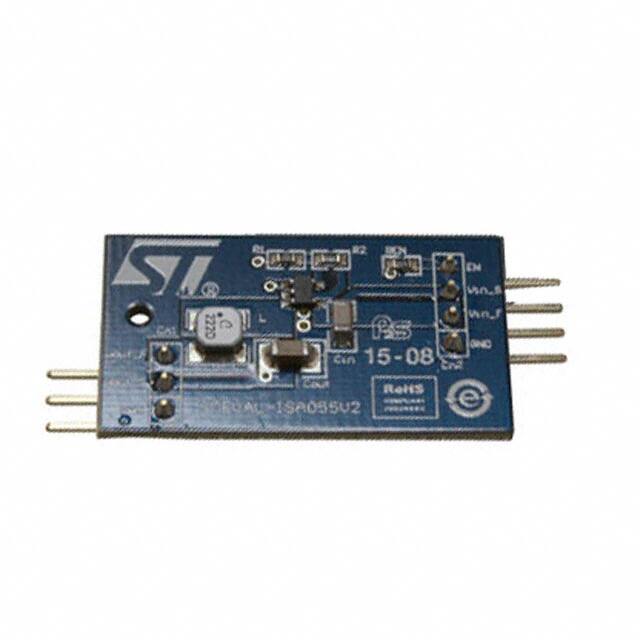

STEVAL-ISA055V2EVAL BOARD FOR ST1S12 |
3,704 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 700mA | 2.5V ~ 5.5V | Buck | 1.7MHz | Board(s) | ST1S12 |
|

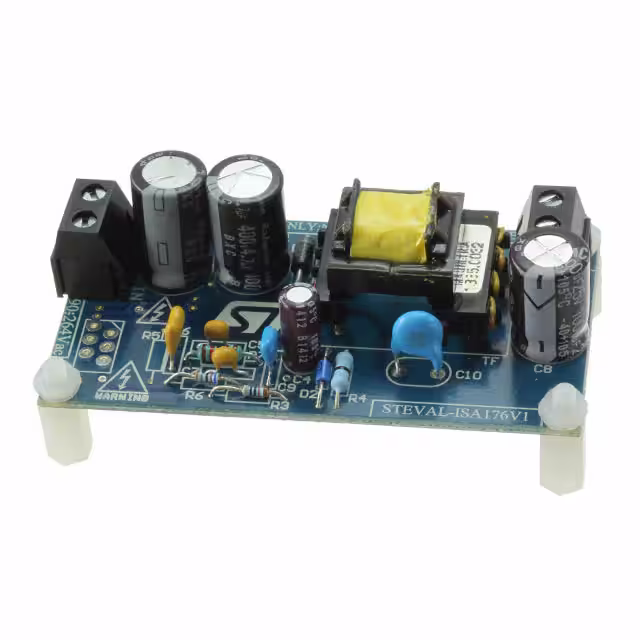

STEVAL-ISA176V1EVAL BOARD FOR ALTAIR05T800 |
4,198 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 90 ~ 264 VAC | Flyback | - | Board(s) | ALTAIR05T-800 |
|

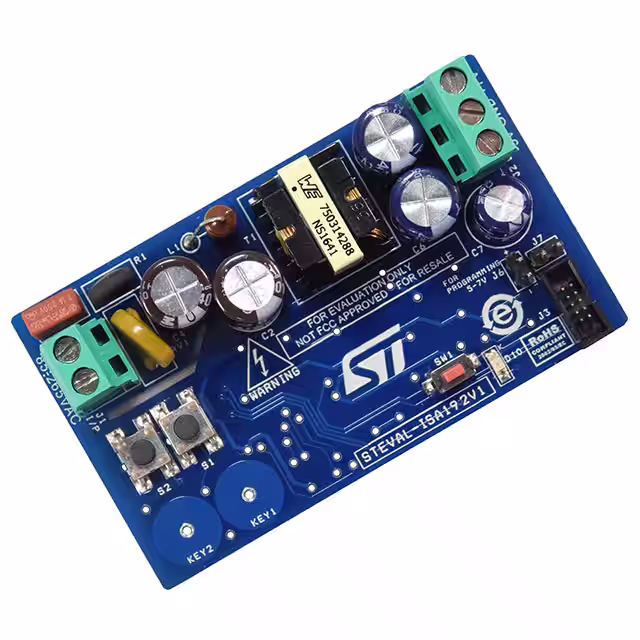

STEVAL-ISA192V1EVAL BOARD FOR VIPER0P |
1,617 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 7V, -5V | 800mA, 400mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer0P |
|

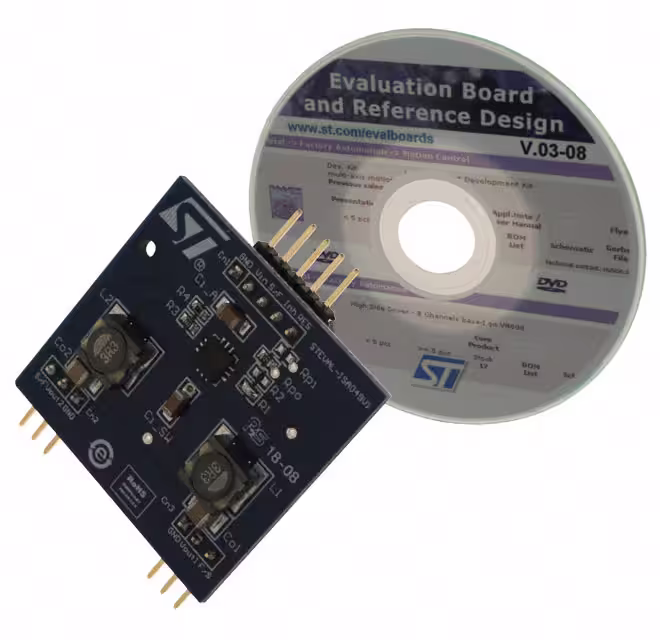

STEVAL-ISA049V1EVAL BOARD FOR ST2S06A |
4,142 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 500mA | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | ST2S06A |
|

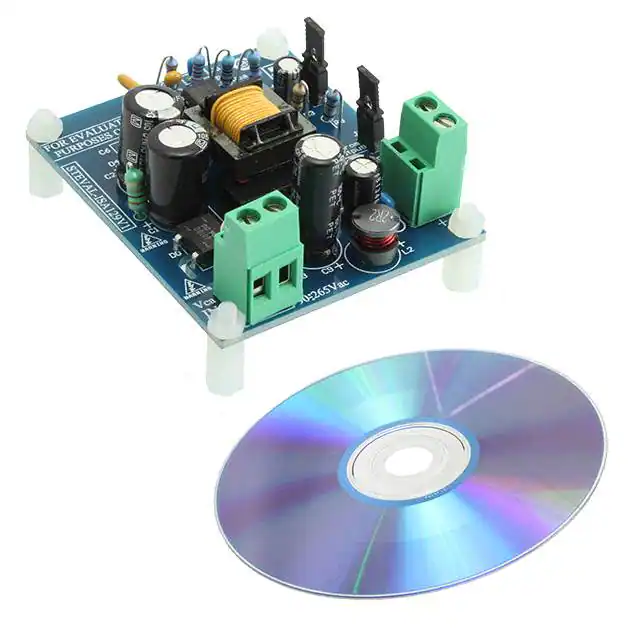

STEVAL-ISA129V1EVAL BOARD FOR VIPER16 |
1,585 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 16V | 280mA | 90 ~ 265 VAC | Flyback | 115kHz | Board(s) | VIPer16 |
|

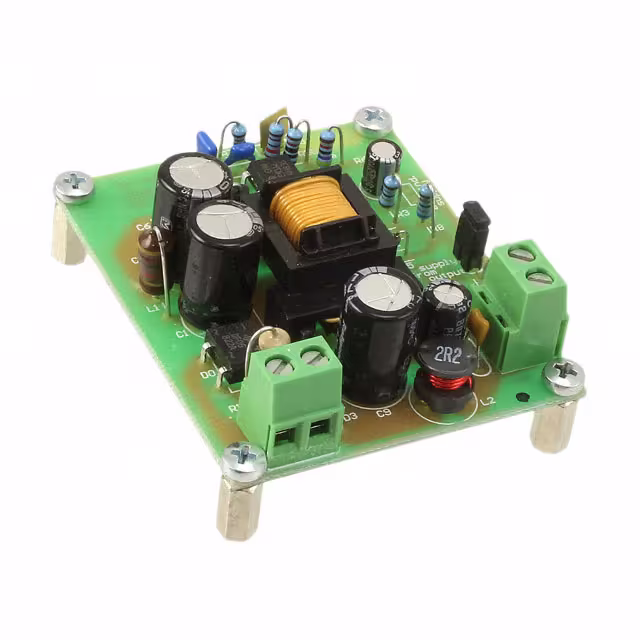

EVLVIP16L-4WFNEVAL BOARD FOR VIPER16 |
4,234 | - |
|
Datasheet | VIPer™ plus | Box | Obsolete | AC/DC, Primary Side | 1 Non-Isolated Output | 4 W | 16V | 250mA | 85 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer16 |
|
STEVAL-ISA125V1EVAL BOARD FOR VIPER28 |
2,409 | - |
|
Datasheet | VIPER™ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 90 ~ 265 VAC | Flyback | 60kHz | Board(s) | VIPer28 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
