DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-NCV6356-EVKEVAL BOARD FOR NCV6356 |
2,573 | - |
|
Datasheet | Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 1.4V | 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | NCV6356 |
|
DC1185B-BEVAL BOARD FOR LTC3850 |
2,517 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 6.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3850 |
|
|
MAX17030EVKIT+EVAL BOARD FOR MAX17030 |
3,868 | - |
|
Datasheet | Quick-PWM™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 7V ~ 26V | Buck | - | Board(s) | MAX17030 |
|

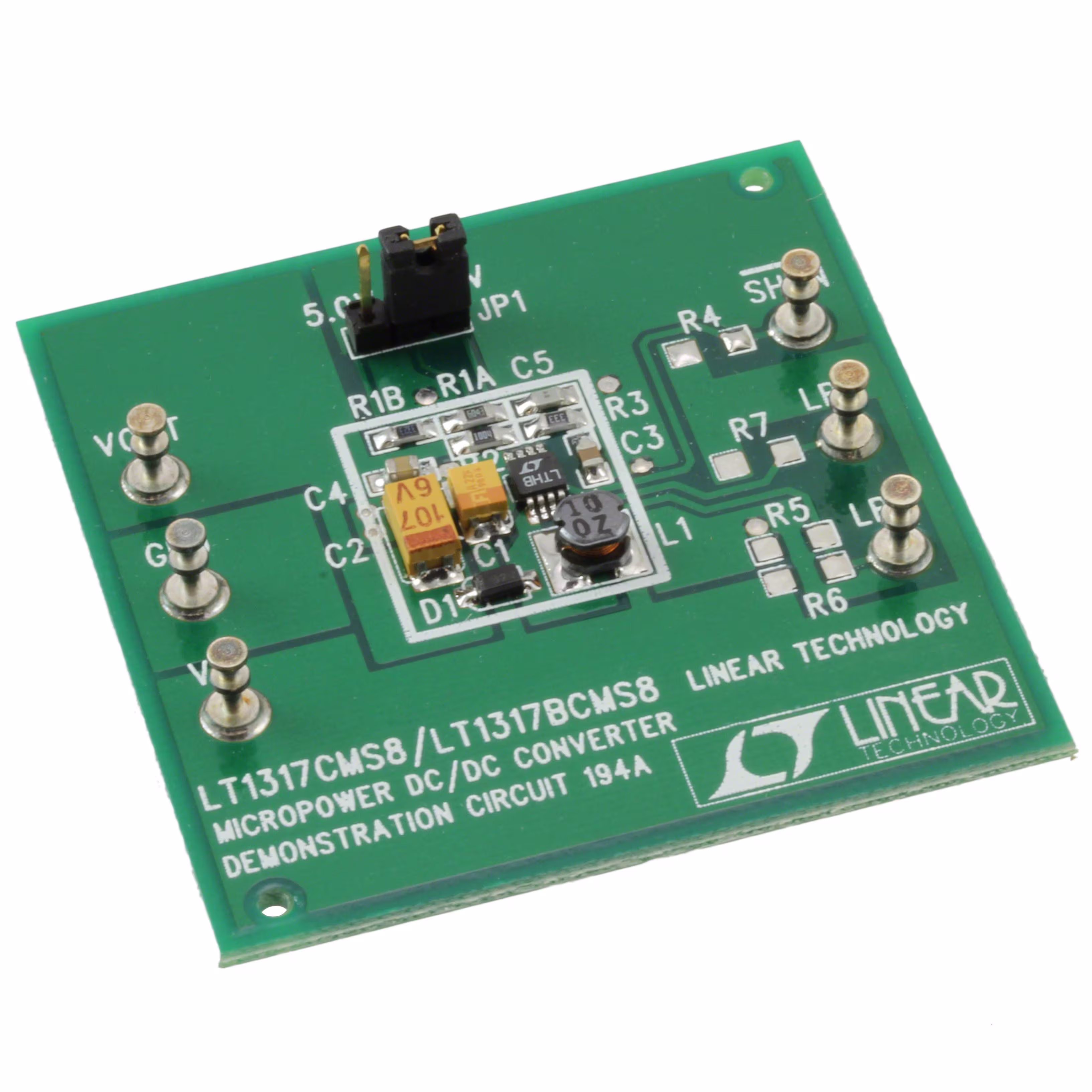

DC194A-BEVAL BOARD FOR LT1317B |
2,787 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 320mA | 1.5V ~ 5.3V | Boost | 600kHz | Board(s) | LT1317B |
|
|
DC174A-AEVAL BOARD FOR LTC15175 |
1,331 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 20mA | 2V ~ 5V | Boost | - | Board(s) | LTC1517-5 |
|
|
DC249A-AEVAL BOARD FOR LTC1682 |
1,294 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.5V ~ 5.5V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682 |
|
|
DC249A-BEVAL BOARD FOR LTC16825 |
1,477 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682-5 |
|
|
DC249A-CEVAL BOARD FOR LTC16823.3 |
2,503 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682-3.3 |
|
STR-NCP3232N-EVKEVAL BOARD FOR NCP3232N |
3,085 | - |
|
Datasheet | Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 21V | Buck | 500kHz | Board(s) | NCP3232N |
|
|
STR-NCP3231-EVKEVAL BOARD FOR NCP3231 |
2,917 | - |
|
Datasheet | Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 25A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | NCP3231 |
|
|
ISL6228HIEVAL3ZEVAL BOARD FOR ISL6228 |
4,328 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.05V or 1.2V, 1.2V | 20A, 20A | 3.3V ~ 25V | Buck | 270kHz, 300kHz | Board(s) | ISL6228 |
|
|
ISL6228EVAL3ZEVAL BOARD FOR ISL6228 |
3,892 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V or 1.8V, 1.8V | 8A, 8A | 3.3V ~ 25V | Buck | 270kHz, 300kHz | Board(s) | ISL6228 |
|
LM5025EVAL/NOPBEVAL BOARD FOR LM5025 |
1,478 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 30A | 36V ~ 72V | Buck | 230kHz | Board(s) | LM5025 |
|

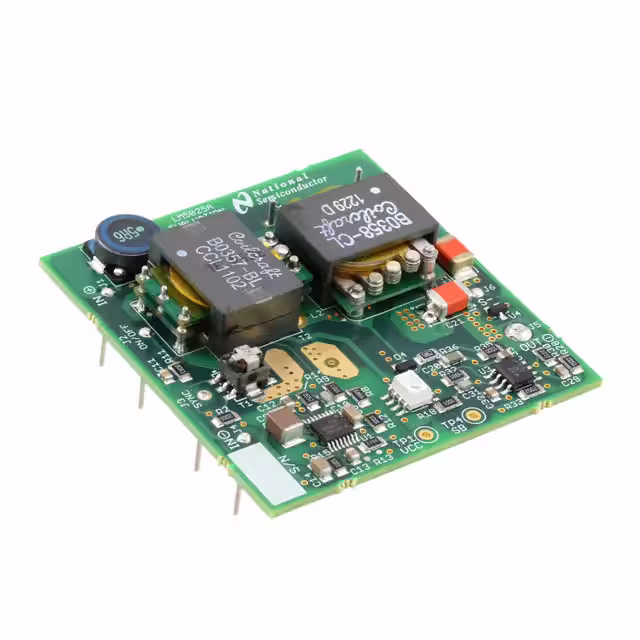

LM5025AEVALEVAL BOARD FOR LM5025A |
2,711 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 30A | 36V ~ 72V | Buck | 230kHz | Board(s) | LM5025A |
|
LM5072EVALEVAL BOARD FOR LM5072 |
4,123 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 9.9 W | 3.3V | 3A | 38V ~ 60V | Flyback | 250kHz | Board(s) | LM5072 |
|
|
ISL8120EVAL4ZEVAL BOARD FOR ISL8120 |
3,484 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 12V | Buck | 1.5MHz | Board(s) | ISL8120 |
|
EVALICE3AR1080VJZTOBO1EVAL BOARD FOR ICE3AR1080VJZ |
2,568 | - |
|
Datasheet | CoolMOS™, CoolSET™F3R80 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 34 W | 12V | 2.83A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AR1080VJZ |
|
LM5026EVALEVAL BOARD FOR LM5026 |
4,052 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 78V | Buck | 230kHz | Board(s) | LM5026 |
|
|
LP3907SQ-JXQXEVEVAL BOARD FOR LP3907 |
4,808 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1A, 600mA, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2.1MHz | Board(s), Cable(s) | LP3907 |
|

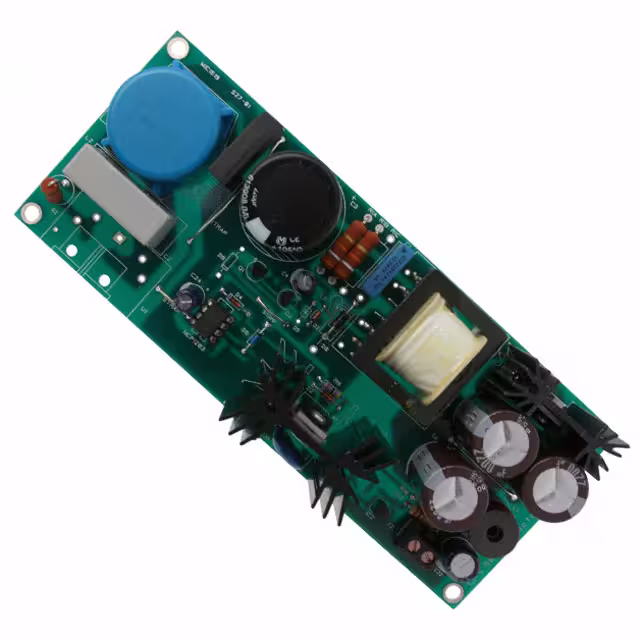

NCP1203GEVBEVAL BOARD FOR NPC1200 |
2,884 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 4A | 85 ~ 230 VAC | Flyback | 60kHz | Board(s) | NPC1200 |
