DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVAL3AR2280VJZTOBO1EVAL BOARD FOR ICE3AR2280VJZ |
3,081 | - |
|
Datasheet | CoolMOS™, CoolSET™F3R80 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AR2280VJZ |
|
LM5071EVALEVAL BOARD FOR LM5071 |
3,201 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 10.89 W | 3.3V | 3.3A | 38V ~ 60V | Flyback | 250kHz | Board(s) | LM5071 |
|

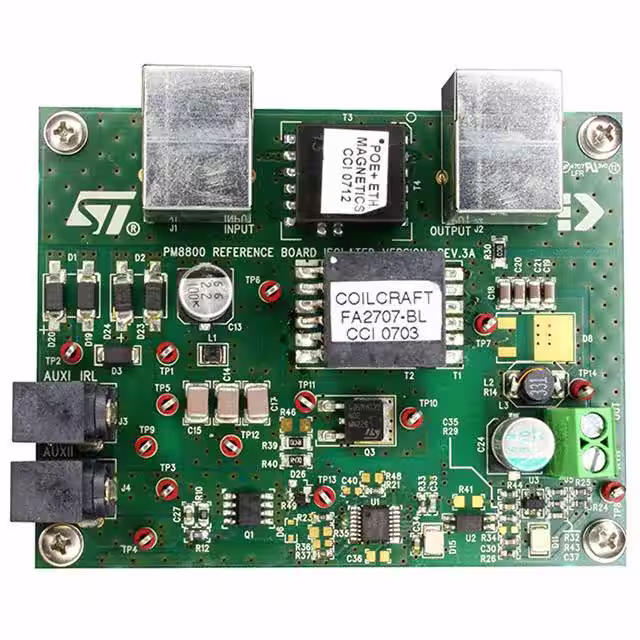

EVALPM8800A-HPEVAL BOARD FOR PM8800A |
3,775 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 20 W | 5V | 4A | 30V ~ 60V | Flyback | 250kHz | Board(s) | PM8800A |
|

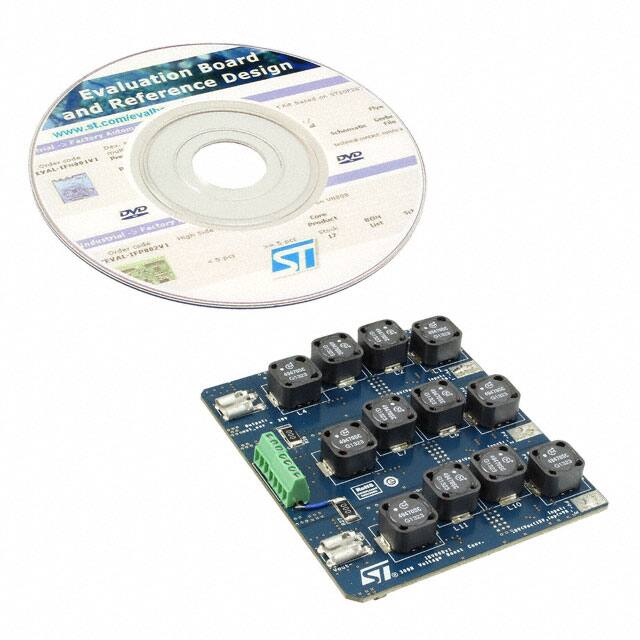

STEVAL-ISV008V1EVAL BOARD FOR SPV1020 |
4,275 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose, MPPT, Solar | 3 Isolated Outputs | 300 W | - | - | - | Boost | 100kHz | Board(s) | SPV1020 |
|
|
DC2182AEVAL BOARD FOR LTC3371 |
1,051 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 2A, 2A, 2A, 2A | 2.25V ~ 5.5V | Buck | 3MHz | Board(s) | LTC3371 |
|
|
FEBFAN6754WAMR_CP450V1EVAL BOARD FOR FAN6204 FAN6754 |
3,428 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6204, FAN6754 |
|
|
ISL8024DEMO2ZEVAL BOARD FOR ISL8024 |
4,991 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8024 |
|

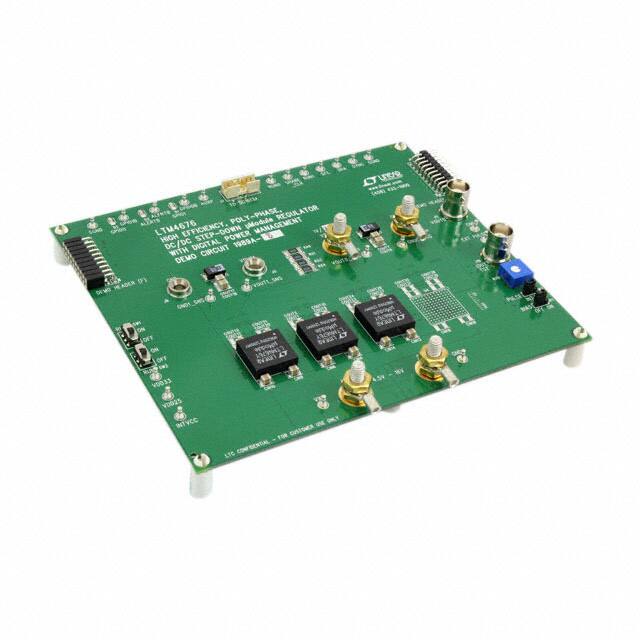

DC1989A-BEVAL BOARD FOR LTM4676 |
1,668 | - |
|
Datasheet | µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 75A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4676 |
|
EPC9101EVAL BOARD FOR EPC2014 EPC2015 |
4,368 | - |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 18A | 8V ~ 19V | Buck | 1MHz | Board(s) | EPC2014, EPC2015 |
|

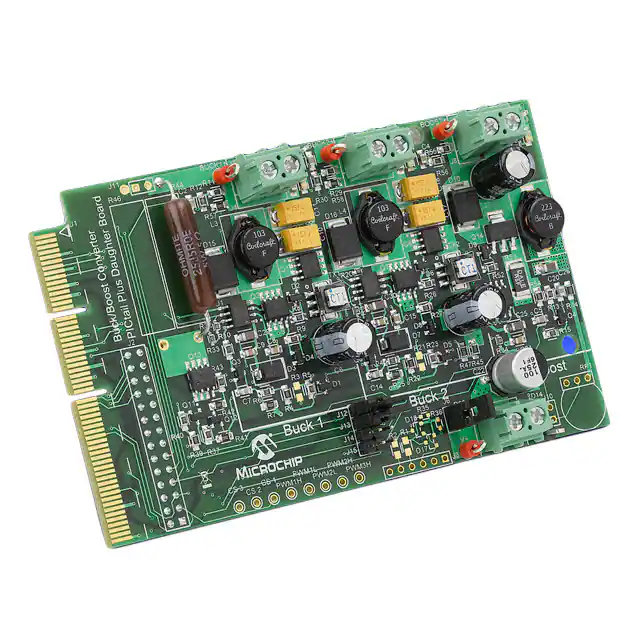

AC164133EVAL BOARD PICTAIL PLUS BOARD |
3,836 | - |
|
Datasheet | PICtail™ Plus | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | - | - | 7V ~ 15V | Buck-Boost | - | Board(s) | PICtail™ Plus Board |
|

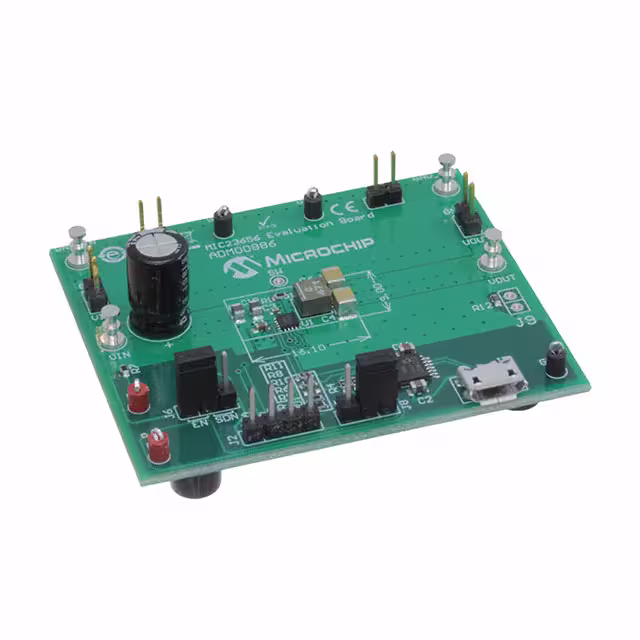

ADM00886EVAL BOARD FOR MIC23656 |
1,077 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.84V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23656 |
|
|
IRDC3843AEVAL BOARD FOR IR3843A |
4,878 | - |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 12V | Buck | 600kHz | Board(s) | IR3843A |
|
|
IRDC3842AEVAL BOARD FOR IR3842A |
4,158 | - |
|
Datasheet | SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 12V | Buck | 600kHz | Board(s) | IR3842A |
|
|
RTKA211605DR0010BUEVAL BOARD FOR RAA211605 |
1,157 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 60V | Buck | 450kHz | Board(s) | RAA211605 |
|
|
EVM82504-BH-03AEVAL BOARD FOR MPM82504 |
4,313 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 200A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MPM82504 |
|
DC519AEVAL BOARD FOR LT1940 |
4,162 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 3.3V, 5V | 1.4A, 1.4A, 1A, 1A | 4.8V ~ 14V, 6.8V ~ 25V | Buck | 1.1MHz | Board(s) | LT1940 |
|
|
ISL8105AEVAL1ZEVAL BOARD FOR ISL8105A |
1,092 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 15A | 4.5V ~ 14.4V | Buck | 600kHz | Board(s) | ISL8105A |
|
|
FEBFAN6756MR_T03U065AEVAL BOARD FOR FAN6756 |
3,522 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6756 |
|

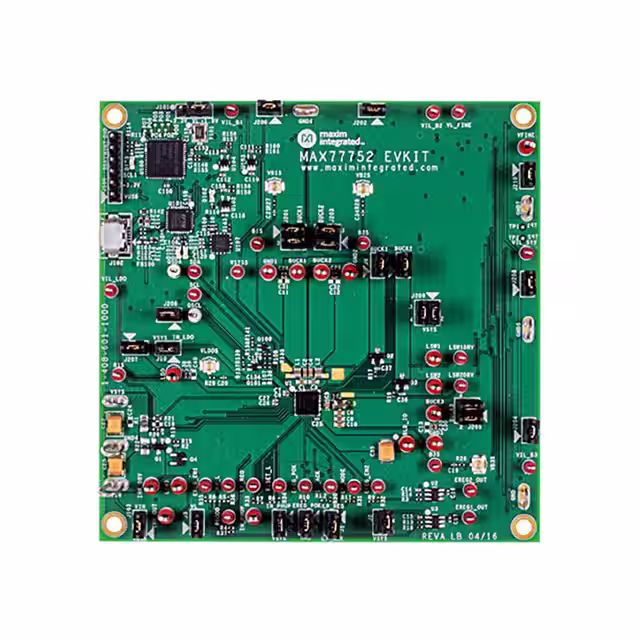

MAX77752EVKIT#EVAL BOARD FOR MAX77752 |
1,337 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.35V, 1.8V, 1.8V | - | 2.6V ~ 5.5V | Buck | - | Board(s) | MAX77752 |
|
DEMOBOARD TLE 6368EVAL BOARD FOR TLE6368 |
3,117 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | - | - | - | - | 5.5V ~ 60V | Buck | - | Board(s) | TLE6368 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
