DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEBFAN6602RM6X-CH10U40A-GEVBEVAL BOARD FOR FAN6602R |
2,995 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | - | Flyback | 65kHz | Board(s) | FAN6602R |
|
|
FEBFSL126MR-H432V1-GEVBEVAL BOARD FOR FSL126MR |
1,325 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 13.8 W | 5V, 12V | 1.8A, 400mA | 90 ~ 264 VAC | Flyback | - | Board(s) | FSL126MR |
|
REFXDPS2107145W1TOBO1EVAL BOARD FOR XDPS21071 |
4,639 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 20V | 2.25A | 90 ~ 265VAC | Flyback | 140kHz | Board(s) | XDPS21071 |
|
|
DC1877AEVAL BOARD FOR LTC3630A |
2,222 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 500mA | 4V ~ 76V | Buck | - | Board(s) | LTC3630A |
|
|
ISL6236EVAL1EVAL BOARD FOR ISL6236 |
4,195 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V, 14V | - | - | Buck | - | Board(s) | ISL6236 |
|
MAX15053EVKIT+EVAL BOARD FOR MAX15053 |
1,306 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15053 |
|
EVL6566A-75WADPEVAL BOARD L6563 L6566A TSM1014 |
4,949 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | - | 65kHz | Board(s) | L6563, L6566A, TSM1014 |
|
|
ISL6236EVAL2EVAL BOARD FOR ISL6236 |
3,826 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V, 3.3V | - | - | Buck | - | Board(s) | ISL6236 |
|

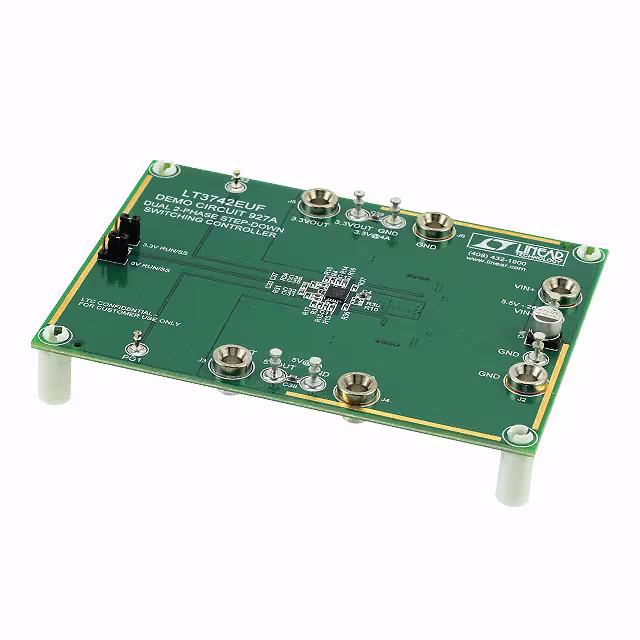

DC927AEVAL BOARD FOR LT3742 |
3,351 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.5V ~ 28V | Buck | 500kHz | Board(s) | LT3742 |
|

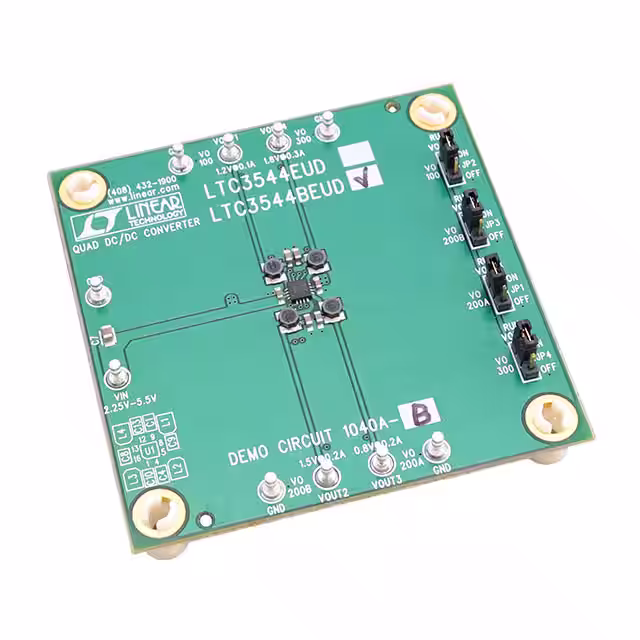

DC1040A-BEVAL BOARD FOR LTC3544 |
4,055 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|

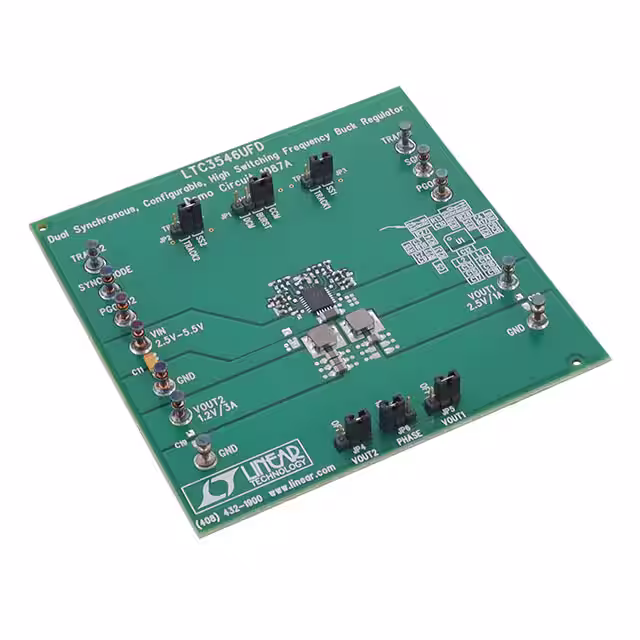

DC1087AEVAL BOARD FOR LTC3546 |
1,221 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 3A, 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3546 |
|

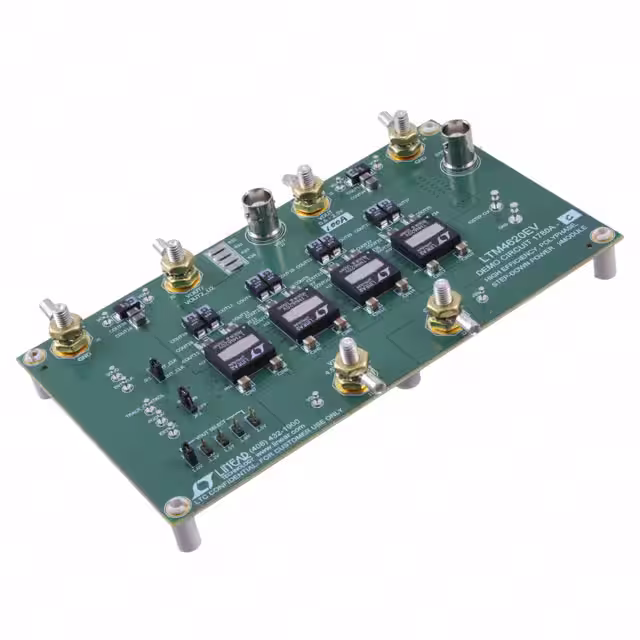

DC1780A-CEVAL BOARD FOR LTM4620 |
3,284 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4620 |
|
|
DC1345AEVAL BOARD FOR LTC3879 |
3,944 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 34V | Buck | 300kHz | Board(s) | LTC3879 |
|
|
DC1040A-AEVAL BOARD FOR LTC3544 |
4,867 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|
|
DC1293AEVAL BOARD FOR LT1939 |
3,503 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.5A, 500mA | 7V ~ 25V | Buck | 800kHz | Board(s) | LT1939 |
|
|
DC1343AEVAL BOARD FOR LTC3564 |
1,915 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.25A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3564 |
|
|
DC1394AEVAL BOARD FOR LT3480 |
2,067 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.5V ~ 5.5V | - | 8V ~ 38V | Buck | 2.4MHz | Board(s) | LT3480 |
|
|
DC1395AEVAL BOARD FOR LT3505 |
3,590 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.7V ~ 4.7V | 1.2A | 8V ~ 36V | Buck | - | Board(s) | LT3505 |
|
|
DC1572AEVAL BOARD FOR LTC3615 |
2,750 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.25V ~ 5.5V | Buck | 4MHz | Board(s) | LTC3615 |
|
|
DC1847AEVAL BOARD FOR LTC3607 |
1,979 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 600mA, 600mA | 4.5V ~ 15V | Buck | 2.25MHz | Board(s) | LTC3607 |
