DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

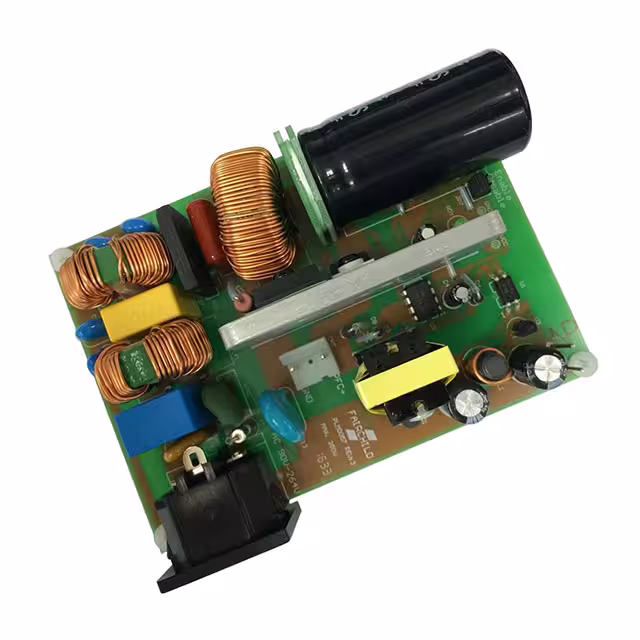

FEBFAN6982MY-CP20U350-GEVBEVAL BOARD FOR FAN6982 |
3,425 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 350 W | 387V | - | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | FAN6982 |
|
NCP1395LLCGEVBEVAL BOARD FOR NCP1395 |
4,043 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side | - | - | - | - | - | Resonant | - | Board(s) | NCP1395 |
|
|
ISL91211AII-EV1ZEVAL BOARD FOR ISL91211A |
4,938 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.3V ~ 1.2V | 5A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s) | ISL91211A |
|
|
ISL91302B31-EVZEVAL BOARD FOR ISL91302B |
3,561 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 5A, 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91302B |
|
|
ISL6752/54EVAL1ZEVAL BOARD FOR ISL6752 ISL6754 |
1,991 | - |
|
Datasheet | - | Box | Active | Power Supply, ATX | 1 Isolated Output | - | 12V | 50A | 350V ~ 450V | Full-Bridge | - | Board(s) | ISL6752, ISL6754 |
|
|
ISLACDC750WEVKIT1ZACDC750W MOTHERBOARD |
2,274 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 750 W | 12V | 62.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | - |
|
|
ISL78224EVKIT2ZEVAL BOARD FOR ISL78224 |
4,396 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 100A | 5V ~ 64V | Buck | - | Board(s) | ISL78224 |
|
|
ISL91211BII-EV1ZEVAL BOARD FOR ISL91211B |
2,159 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.3V ~ 1.2V | 5A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s) | ISL91211B |
|
KIT-CRD-3DD12PC3M SIC BUCK-BOOST EVAL KIT |
4,607 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 2.5 kW | 800V | - | 800V | Boost, Buck | 100kHz | Board(s) | - |
.JPG "IRAC1150-300W")
|
IRAC1150-300WEVAL BOARD FOR IR1150S |
3,557 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | 300 W | 387V | - | 90 ~ 264 VAC | - | 100kHz | Board(s) | IR1150S |
|
|
EVAL6668-75WEVAL BOARD FOR L6563 L6668 |
2,966 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | L6563, L6668 |
|

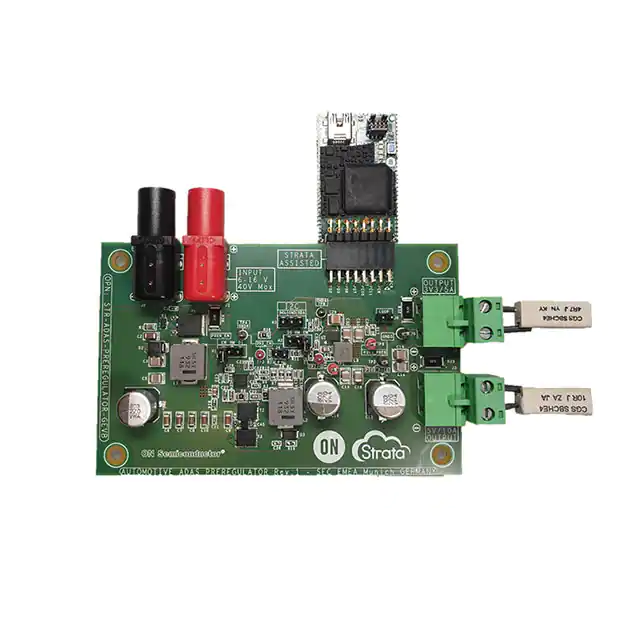

STR-ADAS-PREREGULATOR-GEVKEVAL BOARD FOR NCT375 NCV6357 |
3,159 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 16V | Buck | - | Board(s), Cable(s), Accessories | NCT375, NCV6357, NCV881930 |
|
|
VTD48EF080T030A00EVAL BOARD FOR VTM48EX080Y030A00 |
1,897 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 267 W | 8V | 30A | 26V ~ 55V | Buck | 1.52MHz | Board(s) | VTM48Ex080y030A00 |
|
|
VTD48EF096T025A00EVAL BOARD FOR VTM48EX096Y025A00 |
3,011 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 9.6V | 25A | 26V ~ 55V | Buck | 1.55MHz | Board(s) | VTM48Ex096y025A00 |
|
|
VTD48EF060T040A00EVAL BOARD FOR VTM48EX060Y040A00 |
4,364 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 264 W | 6V | 40A | 26V ~ 55V | Buck | 1.21MHz | Board(s) | VTM48Ex060y040A00 |
|
|
VTD48EF320T009A00EVAL BOARD FOR VTM48EX320Y009A00 |
3,787 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 32V | 9.4A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex320y009A00 |
|
|
VTD48EF160T015A00EVAL BOARD FOR VTM48EX160Y015A00 |
4,842 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 26V ~ 55V | Buck | 1.65MHz | Board(s) | VTM48Ex160y015A00 |
|
|
VTD48EF240T012A00EVAL BOARD FOR VTM48EX240Y012A00 |
3,849 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12A | 26V ~ 55V | Buck | 3.54MHz | Board(s) | VTM48Ex240y012A00 |
|
|
MBCD270F338M235A00EVAL BOARD MBCM270X338M235A00 |
3,721 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 235 W | 33.75V | 7.3A | 240V ~ 400V | Buck | 1.64MHz | Board(s) | MBCM270x338M235A00 |
|
|
VTD48EF040T050B00EVAL BOARD FOR VTM48EX040Y050B00 |
2,057 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 200 W | 4V | 50A | 26V ~ 55V | Buck | 1.43MHz | Board(s) | VTM48Ex040y050B00 |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
What DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components can I source from EGOO?
You can browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
