DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFH05W28-1D0-EVK-S1EVAL BOARD FOR PFH500F281D0R |
1,688 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 500 W | 28V | 18A | 85 ~ 265 VAC | - | - | Board(s) | PFH500F-28-1D0-R |
|
STEVAL-ISV003V1EVAL BOARD FOR STM32F103ZE |
3,117 | - |
|
Datasheet | - | Box | Obsolete | DC/AC Converter | 1 Isolated Output | 250 W | 230VAC | 1.1A | 18V ~ 55V | - | - | Board(s) | STM32F103ZE |
|

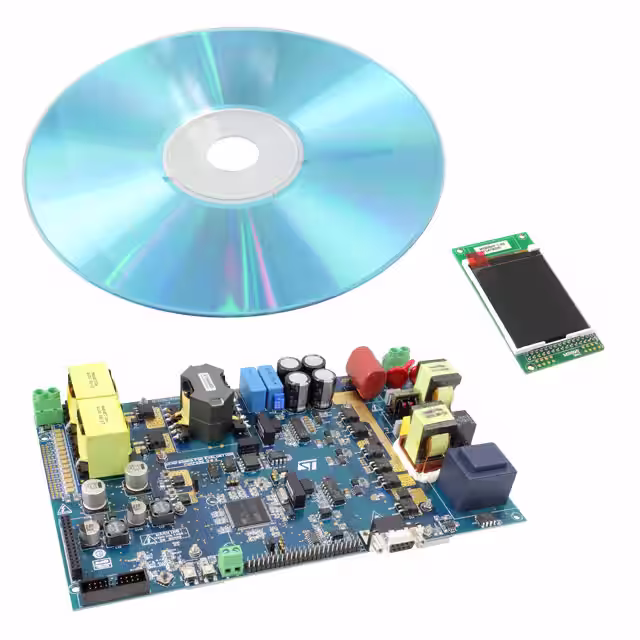

STEVAL-ISV003V2EVAL BOARD FOR STM32F103ZE |
1,521 | - |
|
Datasheet | - | Bulk | Obsolete | DC/AC Converter | 1 Isolated Output | 250 W | 240VAC | 1.06A | 18V ~ 55V | - | - | Board(s) | STM32F103ZE |
|
|
EVAL600W12VLLCCFD7TOBO1EVAL BOARD ICE2HS01G ICE2QR2280Z |
1,257 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | - | Board(s) | ICE2HS01G, ICE2QR2280Z |
|
EVAL600W12VLLCC7TOBO1EVAL BOARD ICE2QR2280G XMC4200 |
1,908 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | - | 350V ~ 410V | Buck | 150kHz | Board(s) | ICE2QR2280G, XMC4200 |
|
|
EVAL800WZVSFBCFD7TOBO1EVAL BOARD ICE3RBR4765JZ XMC4200 |
1,779 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 800 W | 12V | 67A | 350V ~ 410V | Buck | 100kHz | Board(s) | ICE3RBR4765JZ, XMC4200 |
|

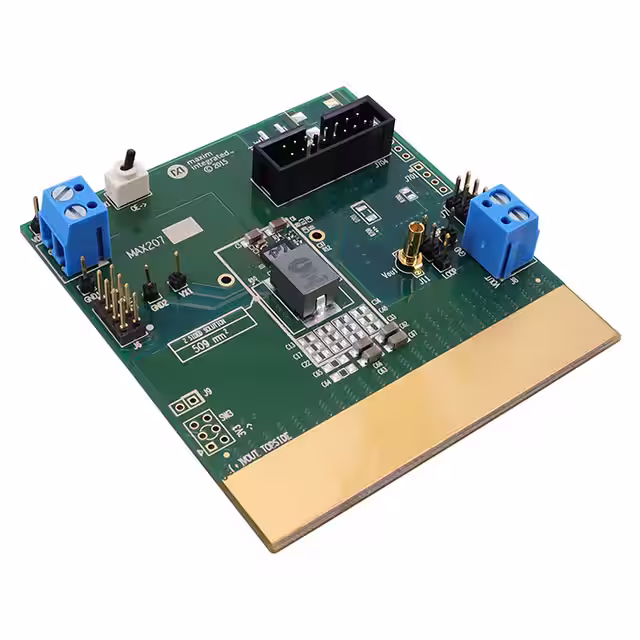

MAX20710EVKIT#EVAL BOARD FOR MAX20710 |
4,720 | - |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20710 |
|
PI3111-00-EVAL1EVAL BOARD FOR PI311100 |
2,832 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 50 W | 15V | 3.33A | 16V ~ 50V | Buck | 900kHz | Board(s) | PI3111-00 |
|

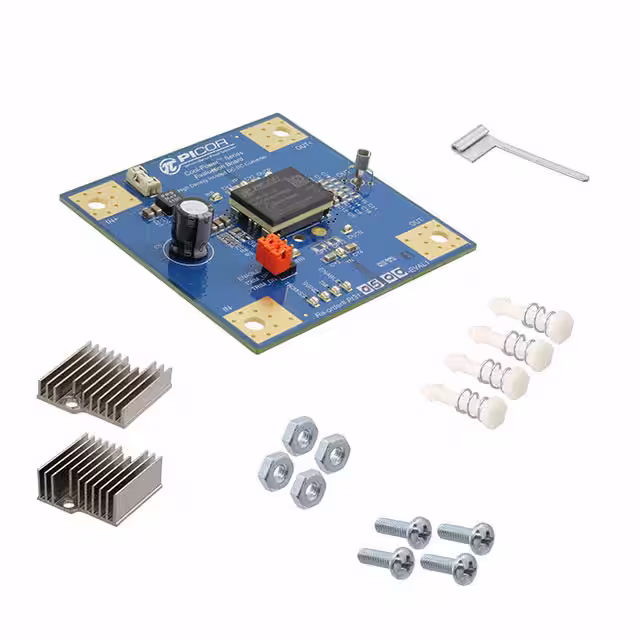

PI3105-00-EVAL1EVAL BOARD FOR PI310500 |
2,999 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 60 W | 12V | 5A | 36V ~ 75V | Buck | 900kHz | Board(s) | PI3105-00 |
|
TDTTP2500P100-KITEVAL BOARD FOR TPH3212PS |
1,499 | - |
|
Datasheet | - | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 2.5 kW | 390V | - | 85 ~ 265 VAC | - | 100kHz | Board(s) | TPH3212PS |
|

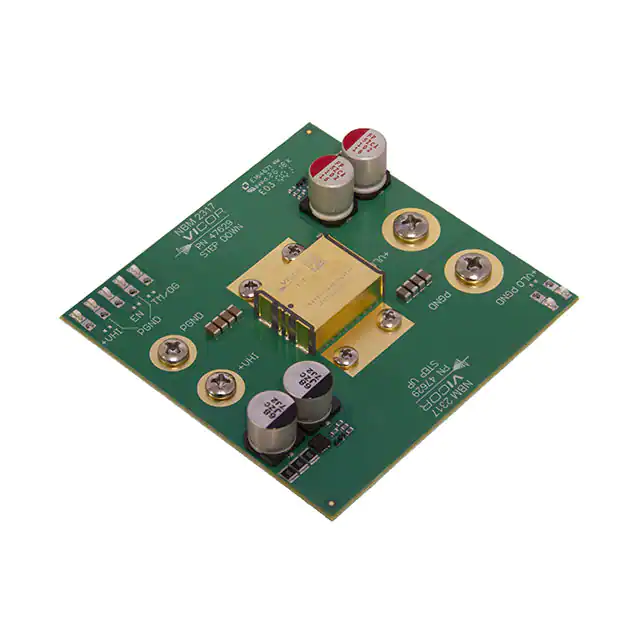

NBM2317D60E1560T0REVAL BOARD NBM2317X60E1560YZZ |
2,170 | - |
|
Datasheet | VI Chip® NBM™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 13.5V | 60A | 38V ~ 60V | Buck | - | Board(s) | NBM2317x60E1560yzz |
|

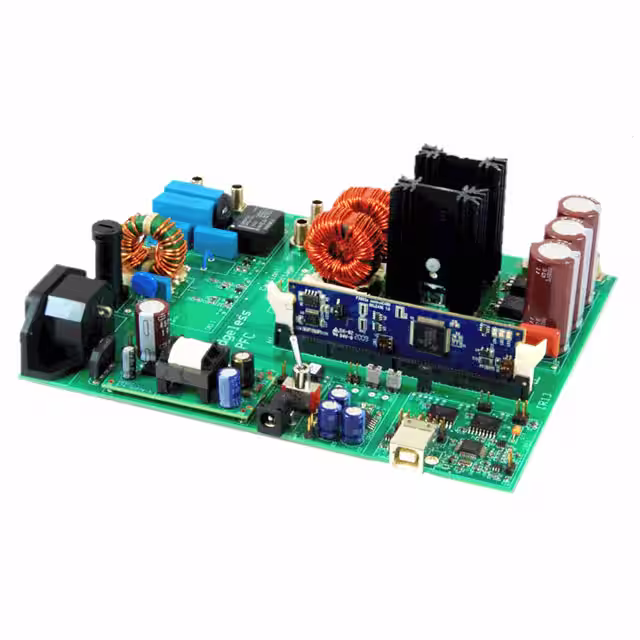

TMDSHVBLPFCKITEVAL BOARD FOR TMS320F28027 |
1,498 | - |
|
Datasheet | C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|

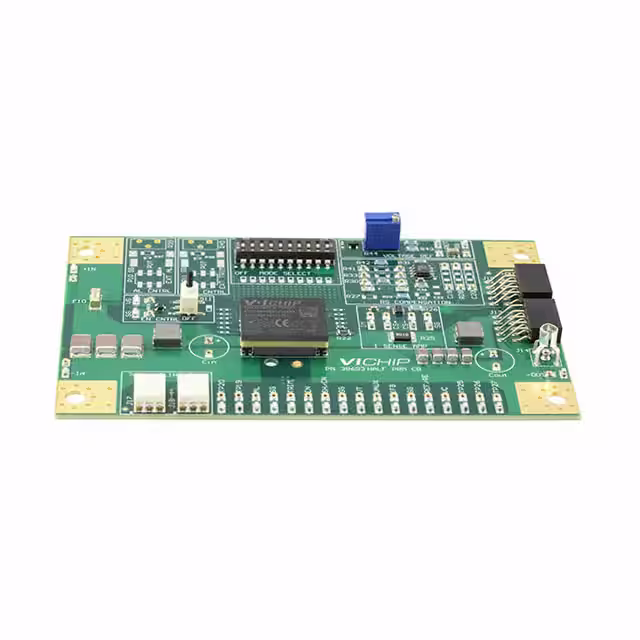

PRD48BH480T200B00EVAL BOARD FOR PRM48BH480T200B00 |
1,994 | - |
|
Datasheet | VI Chip® PRM® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 200 W | 48V | 4.17A | 38V ~ 55V | Buck-Boost | 1MHz | Board(s) | PRM48BH480T200B00 |
|

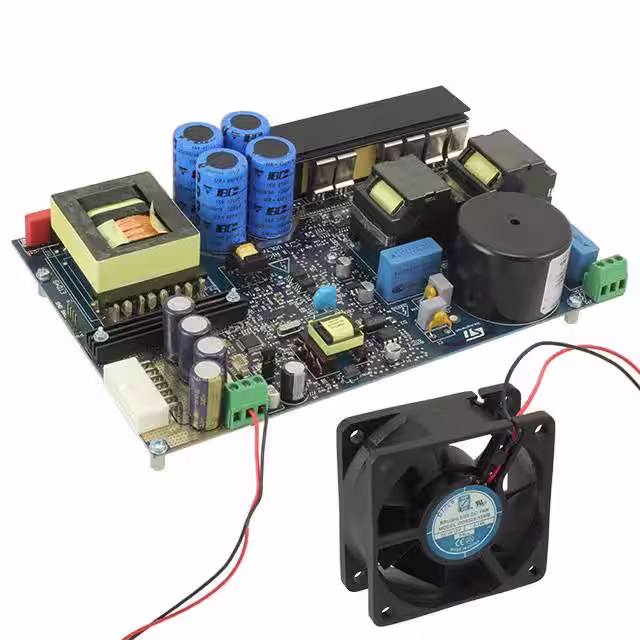

STEVAL-ISA147V2EVAL BOARD FOR STM32F051K8 |
4,477 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | - | 500 W | - | - | 90 ~ 264 VAC | Flyback | - | Board(s) | STM32F051K8, STM32F334C8 |
|

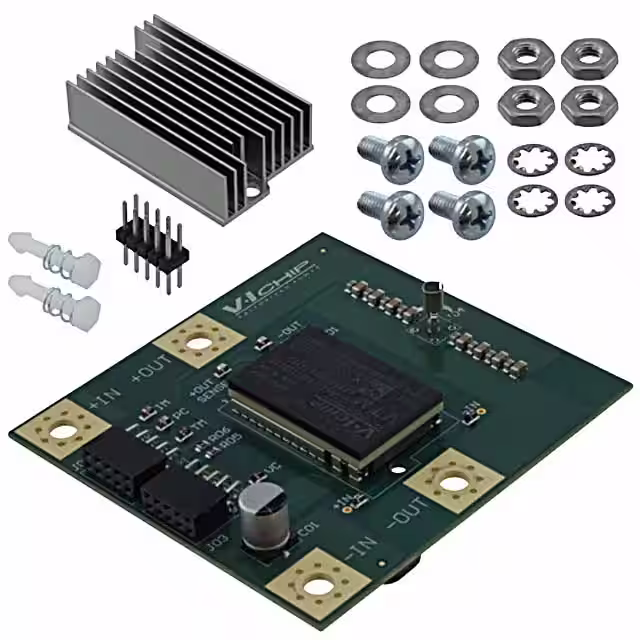

VTD48EF012T130A00EVAL BOARD FOR VTM48EF012T130A |
3,404 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 130 W | 1V | 130A | 26V ~ 55V | Buck | 1.2MHz | Board(s) | VTM48EF012T130A |
|
|
EVAL3KW2LLCCFD7TOBO1EVAL BOARD ICE2QR2280G XMC4400 |
2,591 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 300V ~ 420V | Buck | - | Board(s) | ICE2QR2280G, XMC4400 |
|
|
ROA170019EVAL BOARD FOR BMR480 BMR490 |
0 |
1+：$631.40000 |
|
Datasheet | - | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 1.3 kW | 12V | 108.3A | 40V ~ 60V | - | 230kHz | Partially Populated Board(s) | BMR480, BMR490, BMR491, BMR492 |
|
|
PRD48BH480T250A00EVAL BOARD FOR PRM48BH480X250A00 |
3,933 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 250 W | 48V | 5.21A | 38V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48BH480x250A00 |
|
|
PRD48JH480T250A00EVAL BOARD FOR PRM48JH480X250A00 |
1,444 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 250 W | 48V | 5.21A | 45V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48JH480x250A00 |
|
|
PRD48AH480T200A00EVAL BOARD FOR PRM48AH480X200A00 |
2,420 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 200 W | 48V | 4.17A | 36V ~ 75V | Buck-Boost | 1.03MHz | Board(s) | PRM48AH480x200A00 |
