DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRD48JF480T500A00EVAL BOARD FOR PRM48JY480X500A00 |
2,769 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 500 W | 48V | 10.42A | 45V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48Jy480x500A00 |
|

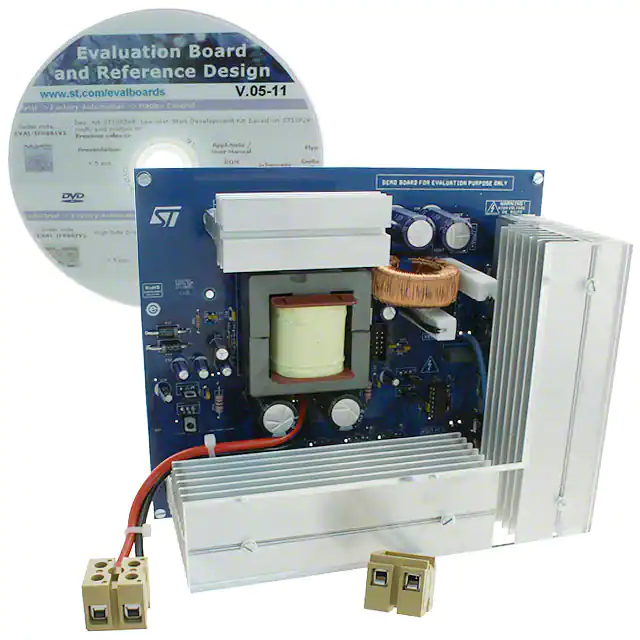

STEVAL-ISV001V1EVAL BOARD FOR STP160N75 |
1,583 | - |
|
Datasheet | - | Box | Obsolete | DC/AC Converter | 1 Isolated Output | 1 kW | 230VAC | - | 20V ~ 28V | Boost | 16kHz, 100kHz | Board(s) | STP160N75 |
|
EVAL3KW2LLCC720TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
2,612 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 410V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|
EVAL3KW2LLCP747TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
3,310 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 400V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|
|
VTD48EF012T130B01EVAL BOARD FOR VTM48EF012T130B |
3,713 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | - | - | - | Buck | - | Board(s) | VTM48EF012T130B |
|
EVAL1K6WPSUG7DDTOBO1EVAL BOARD ICE2QR2280G XMC1402 |
3,637 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 1.6 kW | 12.2V | - | 176 ~ 265 VAC | Flyback | - | Board(s) | ICE2QR2280G, XMC1402, XMC4200 |
|

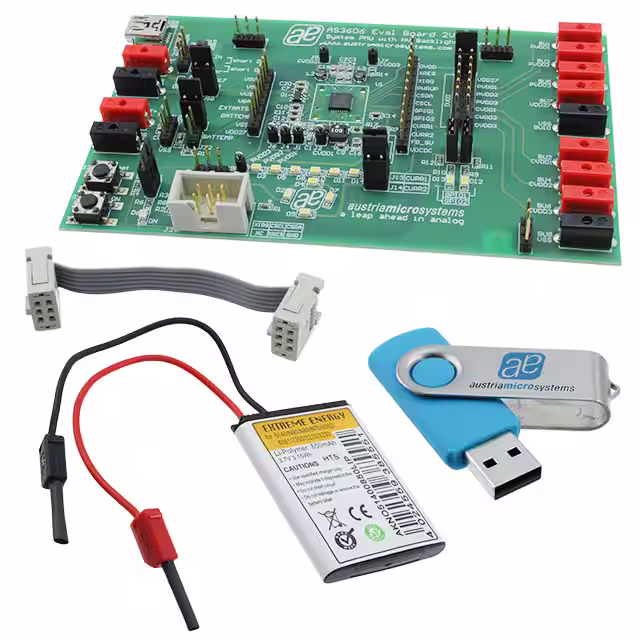

AS3606 EVAL BOARDEVAL BOARD FOR AS3606 |
4,516 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down with LDO | 9 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3606 |
|

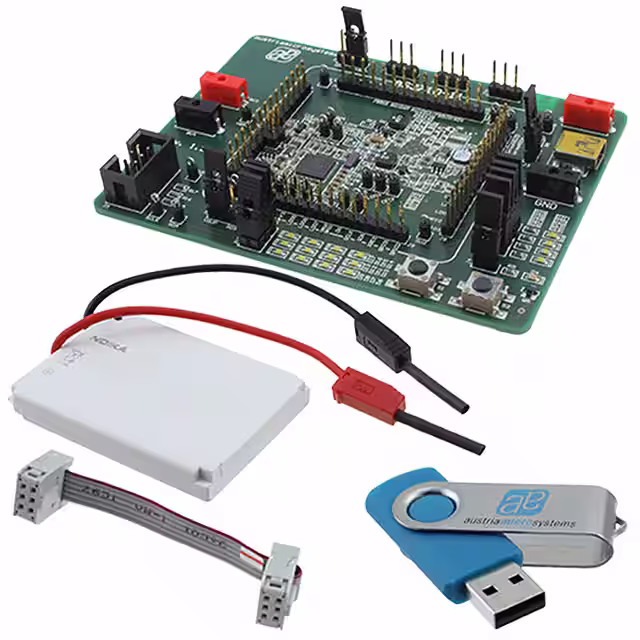

AS3711 EVAL BOARDEVAL BOARD FOR AS3711 |
2,047 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down with LDO | 14 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3711 |
|

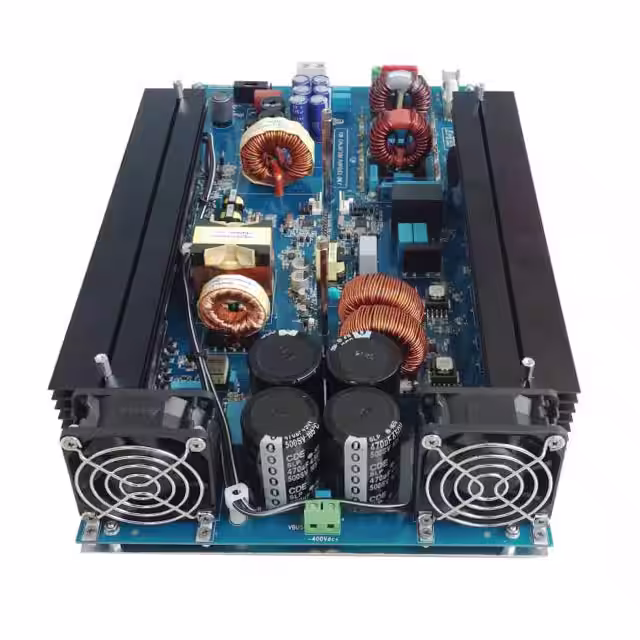

STEVAL-ISA172V1EVAL BOARD STM32F334C8 VIPER27 |
2,323 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|
|
PRD48AF480T400A00EVAL BOARD FOR PRM48AY480X400A00 |
4,476 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 400 W | 48V | 8.33A | 36V ~ 75V | Buck-Boost | 1.03MHz | Board(s) | PRM48Ay480x400A00 |
|
|
MPRD48NF480M500A00EVAL BOARD MPRM48NX480M500A00 |
2,410 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 48V | 10.42A | 38V ~ 55V | Buck | 1.03MHz | Board(s) | MPRM48Nx480M500A00 |
|

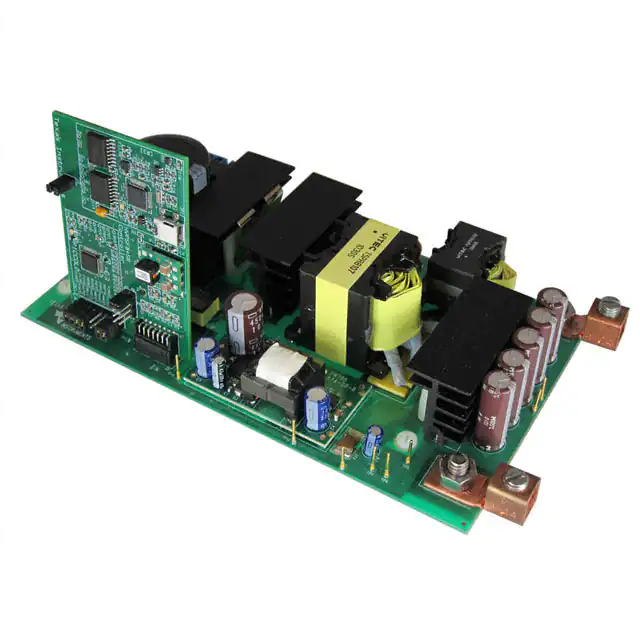

TMDSHVPSFBKITEVAL BOARD FOR TMS320F28027 |
1,621 | - |
|
Datasheet | C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 500 W | 12V | - | 380V ~ 400V | Full-Bridge | - | Board(s) | TMS320F28027 |
|

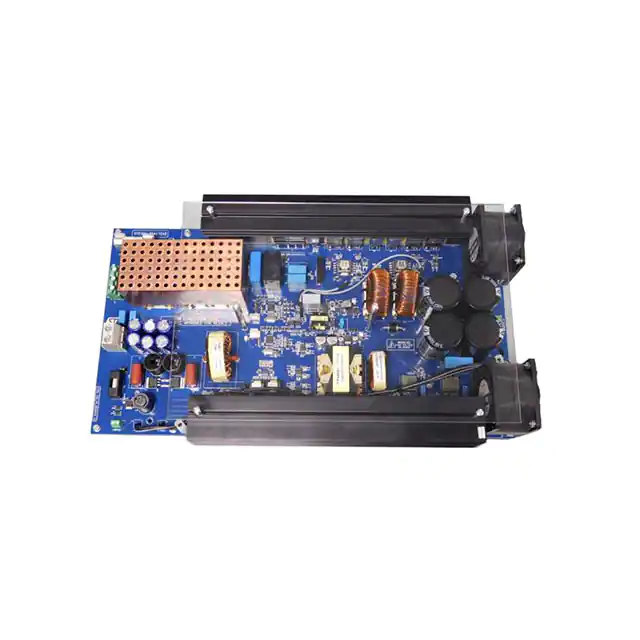

STEVAL-ISA172V2EVAL BOARD STM32F334C8 VIPER27 |
3,879 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|
|
TPS7H4001EVM-CVALEVAL BOARD FOR TPS7H4001SP |
1,530 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 18A | 5V | Buck | 500kHz | Board(s) | TPS7H4001-SP |
|

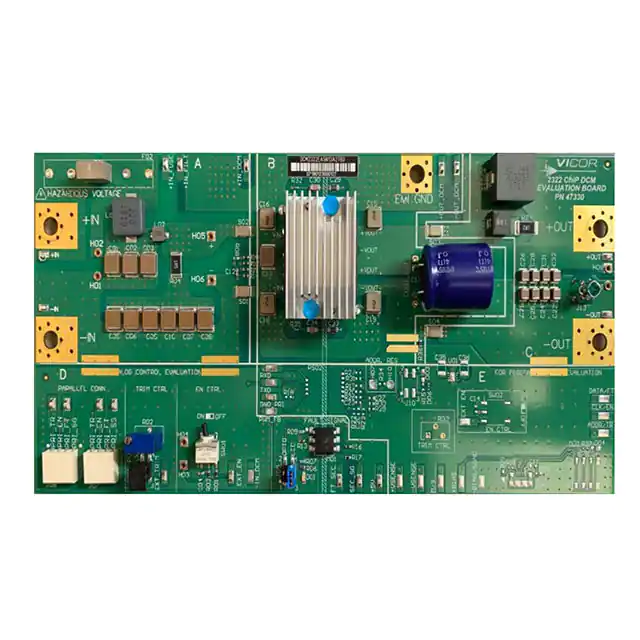

DCM2322EA5N17A2T60EVAL BOARD DCM2322XA5N17A2Y6Z |
3,015 | - |
|
Datasheet | VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 15V | 8A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N17A2y6z |
|
|
DCM2322EA5N0440T60EVAL BOARD DCM2322XA5N0440Y6Z |
1,483 | - |
|
Datasheet | VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 40 W | 3.3V | 12.2A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N0440y6z |
|
|
DCM2322EA5N13A2T60EVAL BOARD DCM2322XA5N13A2Y6Z |
1,372 | - |
|
Datasheet | VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 12V | 10A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N13A2y6z |
|
|
BCM6123ED1E2663T00EVAL BOARD BCM6123XD1E2663YZZ |
1,412 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 1.5 kW | 24V | 62.5A | 260V ~ 410V | Buck | 1.05MHz | Board(s) | BCM6123xD1E2663yzz |
|
|
DCM2322E72S0435T60EVAL BOARD DCM2322X72S0435Y6Z |
1,942 | - |
|
Datasheet | VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 35 W | 3.3V | 10.7A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S0435y6z |
|
EPC9115EVAL BOARD FOR EPC2020 EPC2021 |
4,478 | - |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 5A | 48V ~ 60V | Buck | 300kHz | Board(s) | EPC2020, EPC2021 |
