DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDCM270P033M150A40EVAL BOARD DCM4623XD2K04A5YZZ |
2,124 | - |
|
Datasheet | - | Tray | Active | DC/DC Converter | 1 Isolated Output | 150 W | 3.3V | 45.46A | 160V ~ 420V | - | - | Board(s) | DCM4623xD2K04A5yzz |
|
ISL91108IIA-EVZEVAL BOARD FOR ISL91108 |
3,450 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91108 |
|
|
ISL91110IIA-EVZEVAL BOARD FOR ISL91110 |
1,877 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91110 |
|
|
ISL91117IIA-EVZEVAL BOARD FOR ISL91117 |
2,038 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.5A | 1.8V ~ 4.8V | Boost | 2.5MHz | Board(s) | ISL91117 |
|
|
PSV-EBAD-150CCM150W AC TO DC EVALUATION BOARD |
3,558 | - |
|
Datasheet | PSV-EBAD | Active | AC/DC Converter | 1 Isolated Output | 150 W | 20V | 7.5A | 100 ~ 240 VAC | Flyback | 42kHz | Board(s) | - | |
|
|
MVTD36BF360M003A00EVAL BOARD MVTM36BX360M003A00 |
2,678 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 36V | 3A | 26V ~ 50V | Buck | 1.67MHz | Board(s) | MVTM36Bx360M003A00 |
|
|
MBCD270F450M270A00EVAL BOARD FOR MBCM270F450M270A |
1,717 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 350 W | 45V | 6.25A | 230V ~ 330V | Buck | 1.7MHz | Board(s) | MBCM270F450M270A |
|
|
VTD48EF480T006A00EVAL BOARD FOR VTM48EX480Y006A00 |
3,550 | - |
|
Datasheet | VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 48V | 6.3A | 26V ~ 55V | Buck | 1.67MHz | Board(s) | VTM48Ex480y006A00 |
|

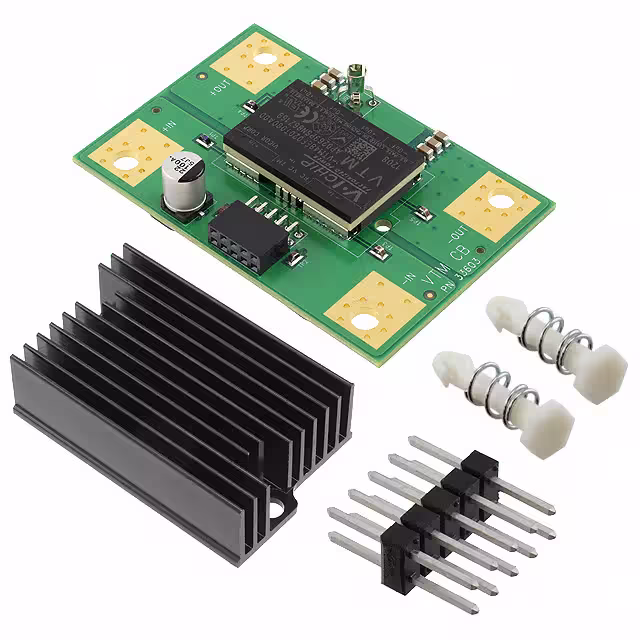

VTD48EF020T080A00EVAL BOARD FOR VTM48EX020Y080A00 |
3,601 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 160 W | 2V | 80A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex020y080A00 |
|
|
MVTD36BF022M055A00EVAL BOARD MVTM36BX022M055A00 |
2,356 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 2.25V | 55A | 26V ~ 50V | Buck | 1.43MHz | Board(s) | MVTM36Bx022M055A00 |
|

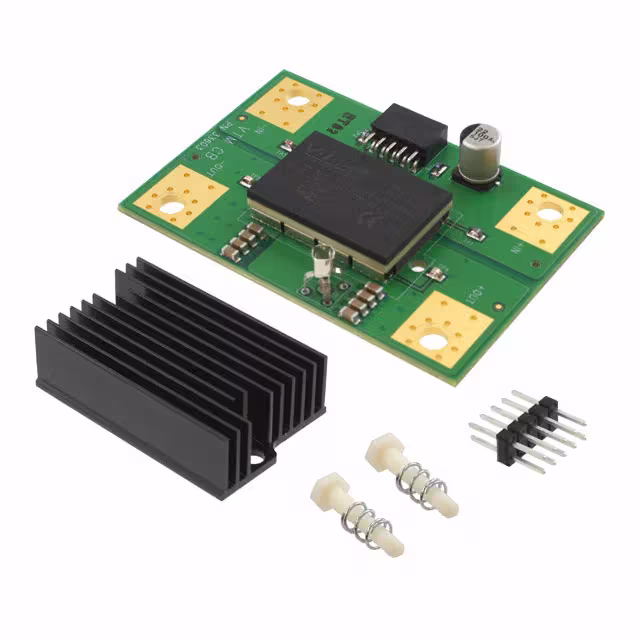

VTD48EF030T070A00EVAL BOARD FOR VTM48EX030Y070A00 |
3,975 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 230 W | 3V | 70A | 26V ~ 55V | Buck | 1.43MHz | Board(s) | VTM48Ex030y070A00 |
|
|
TEA1833DB1361ULEVAL BOARD FOR TEA1833 |
3,810 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 45 W | 19.5V | - | 90 ~ 264 VAC | Flyback | - | Board(s) | TEA1833 |
|
|
NCP1399ADPGEVBEVAL BOARD FOR NCP1399 |
2,125 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 150 W | 19.5V | 7.7A | 85 ~ 260 VAC | Buck, Flyback | 750kHz | Board(s) | NCP1399 |
|

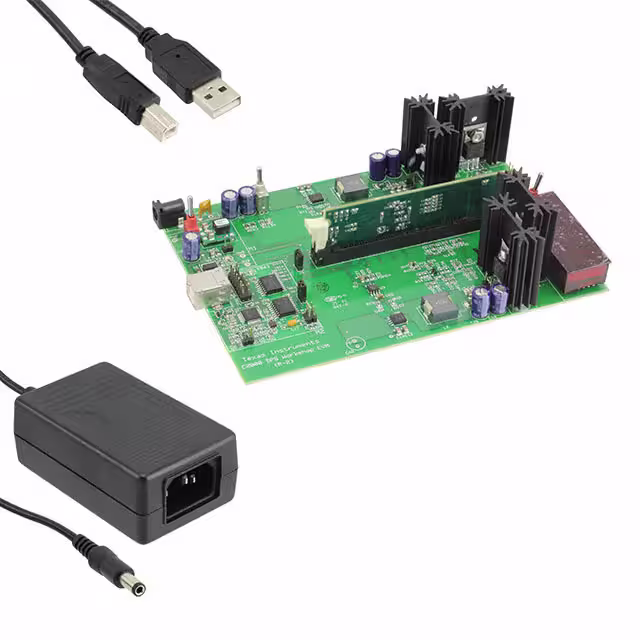

TMDSC2KWRKSHPKITEVAL BOARD FOR TMS320F280X |
2,196 | - |
|
Datasheet | C2000™, Piccolo™ | Box | Obsolete | DC/DC, Step Down | - | - | - | - | 9V | Buck | - | Board(s), Cable(s), Power Supply | TMS320F280x |
|
IRAUDPS1EVAL BOARD FOR IR2085 IRF6648 |
3,604 | - |
|
Datasheet | - | Box | Discontinued at Digi-Key | DC/DC, Positive and Negative | 1 Isolated Output | 500 W | ±35V | 7A | 10V ~ 18V | Boost | - | Board(s) | IR2085, IRF6648 |
|
EPC9130EVAL BOARD FOR EPC2045 |
2,435 | - |
|
Datasheet | eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 50A | 36V ~ 60V | Buck | 500kHz | Board(s) | EPC2045 |
|
|
ISL6261EVAL1ZEVAL BOARD FOR ISL6261 |
4,362 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | - | - | - | - | 4.75V ~ 5.25V | Buck | - | Board(s) | ISL6261 |
|
|
ISL6261AEVAL1ZEVAL BOARD FOR ISL6261A |
1,505 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | - | - | - | - | 4.75V ~ 5.25V | Buck | - | Board(s) | ISL6261A |
|

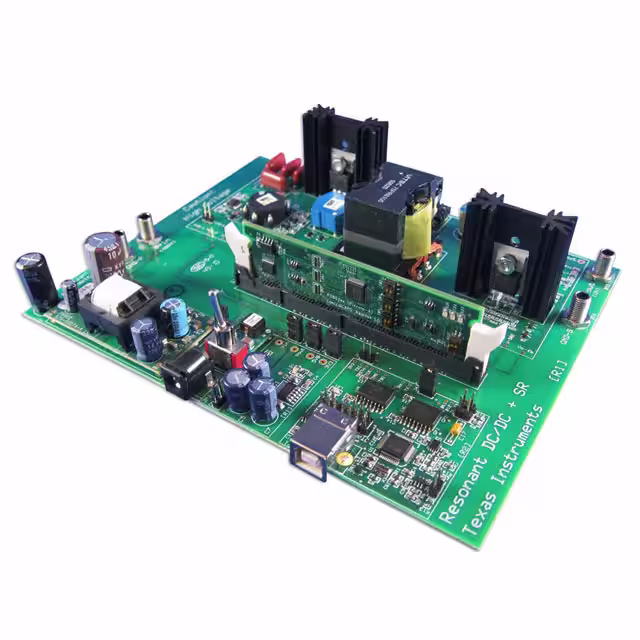

TMDSHVRESLLCKITEVAL BOARD FOR TMS320F28027 |
1,440 | - |
|
Datasheet | C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 500 W | 12V | - | 380V ~ 400V | Resonant | - | Board(s) | TMS320F28027 |
|
EVAL600W12VLLCP7TOBO1EVAL BOARD ICE2HS01G ICE2QR2280Z |
4,921 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | - | Board(s) | ICE2HS01G, ICE2QR2280Z |
