Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91076L-E10/100 BASE-T SINGLE PORT, 16PIN |
5,160 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.524" L x 0.291" W (13.30mm x 7.40mm) | 0.240" (6.10mm) | -40°C ~ 125°C | - | - |
|
SM91536AL-EBMS TRANSFOMER,6PIN,SGL,3KVAC |
2,000 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | Battery Management | 150µH, 450µH | - | 1:1 | Surface Mount | 0.528" L x 0.409" W (13.40mm x 10.40mm) | 0.331" (8.40mm) | -40°C ~ 125°C | - | - |
|
HCTSM100304FL-ETRANSF HIGH VOLTAGE ISOLATION |
4,110 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 400µH | 11.0VµS | 1:1.33 | Surface Mount | 0.620" L x 0.425" W (15.70mm x 10.08mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
|
SM91872AL-ETRANSF BMS 4KV ISOL 6 PIN |
390 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | Battery Management | 450µH | - | 1:1 | Surface Mount | 0.646" L x 0.417" W (16.40mm x 10.60mm) | 0.319" (8.10mm) | -40°C ~ 125°C | Automotive | AEC-Q200 |
|
|
SM91604L-ETRANSF CMC LAN 1000B-T |
197 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN | 0.035µH | - | 1:1 | Surface Mount | 1.299" L x 0.772" W (33.00mm x 19.60mm) | 0.413" (10.50mm) | -40°C ~ 105°C | - | - |
|

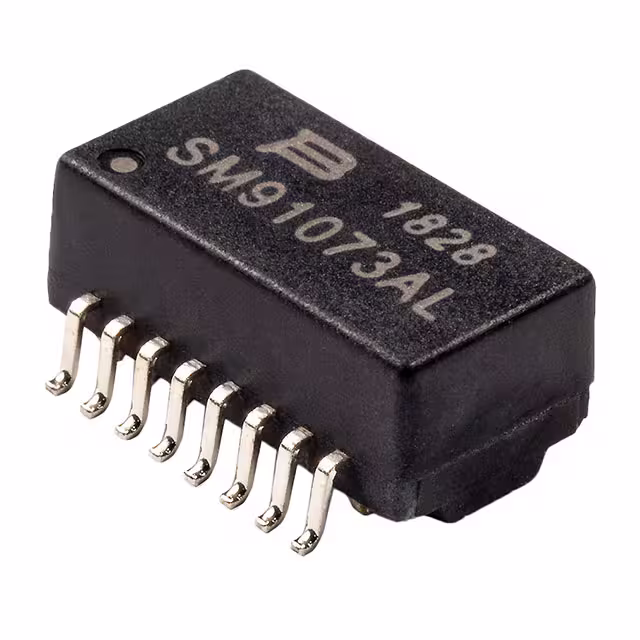

SM91073AL-EXFRMR PULSE 10 BASE-T |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - |
|
|
BA60951CSTRANSF FLYBACK 25UH 2.5W ISO SMD |
531 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
HCTSM80308BAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
788 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 300µH | 11.0VµS | 3:8 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
HCTSM81017CAL-E1XFRMR POWER 10:17 350UH SMD |
473 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 350µH | 11.0VµS | 10:17 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80101AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
146 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 1:1 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
Pulse Transformers FAQ
How can I narrow the current Pulse Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Pulse Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
