Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB-1715PKSPEAKER 8OHM 200MW TOP PORT 74DB |
1,476 | - |
|
Datasheet | PB | Bulk | Active | Magnetic | General Purpose | 1.5 kHz ~ 20 kHz | 1500Hz | 8 Ohms | 74.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.669" Dia (17.00mm) |
|
CMS-15118D-L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,025 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CES-2704-088L050SPEAKER 8OHM 800MW TOP PORT 90DB |
564 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 50 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Plastic | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) |
|
CES-26138-16L030SPEAKER 6OHM 1.2W TOP PORT 95DB |
377 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 1kHz | 6 Ohms | 95.00 | 1.2W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.024" L x 0.512" W (26.00mm x 13.00mm) |
|
AST-030C0MR-RSPEAKER 100OHM 150MW TOP PT 80DB |
345 | - |
|
Datasheet | AST | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 10 kHz | 1200Hz | 100 Ohms | 80.00 | 100mW/100mm | Sound Pressure Level (SPL) | 150 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.169" Dia (29.70mm) |
|
CMS-201437-24SP-X8SPEAKER, 20 X 14 MM, 3.7 MM DEEP |
623 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1.05kHz | 4 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
SC400308-1SPEAKER 8OHM 2W TOP PORT 97DB |
4,107 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 380Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|
SC400608-1SPEAKER 8OHM 2W TOP PORT 90DB |
227 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | - | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
CMS-405-158N-67SPEAKER 8OHM 1.5W TOP PORT 103DB |
1,247 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 103.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) |
|

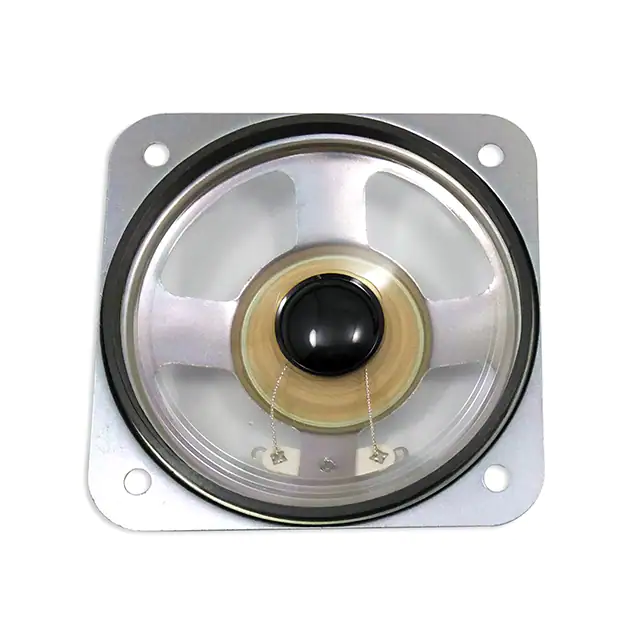

WSP-7704SPEAKER 4OHM 3W TOP PORT 102DB |
415 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | - | 330Hz | 4 Ohms | 102.00 | 1W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 3.039" L x 3.039" W (77.20mm x 77.20mm) |
|
K 50 - 50 OHMSPEAKER 50OHM 2W TOP PORT 83DB |
343 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 250 Hz ~ 12 kHz | 500Hz | 50 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
CDS-27204-L1006SPEAKER 4OHM 2W TOP PORT 93DB |
1,618 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
|
CDS-5715-254SP-X5SPEAKER, 57 X 15.5 MM DEEP, PEEK |
713 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 384 Hz ~ 4.5 kHz | 480Hz | 4 Ohms | 107.00 | 2W/100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | IPX5 | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
|
AS05045MR-RSPEAKER 45OHM 1W TOP PORT 102DB |
1,989 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 230 Hz ~ 15 kHz | 350Hz | 45 Ohms | 102.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
CDS-20144SPEAKER 4OHM 1W TOP PORT 92DB |
1,188 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
CDS-27208-L100SPEAKER 8OHM 2W TOP PORT 95DB |
2,913 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|

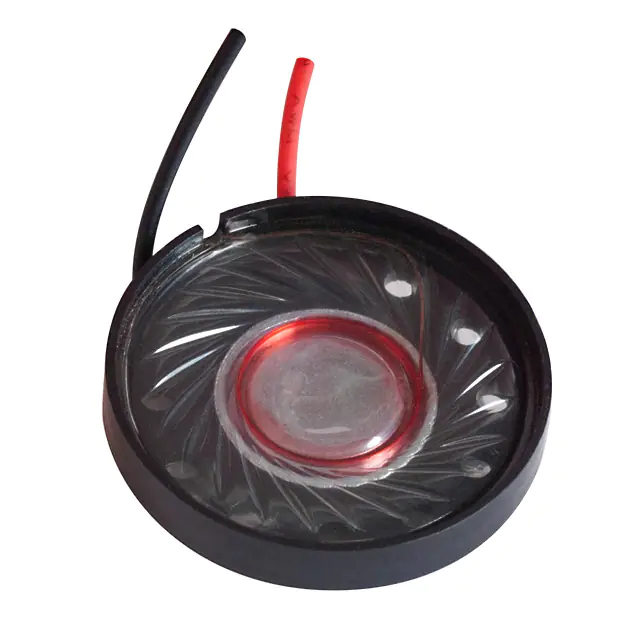

CLS0271M-L152SPEAKER 8OHM 100MW TOP PORT 89DB |
1,097 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 20 kHz | 530Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) |
|

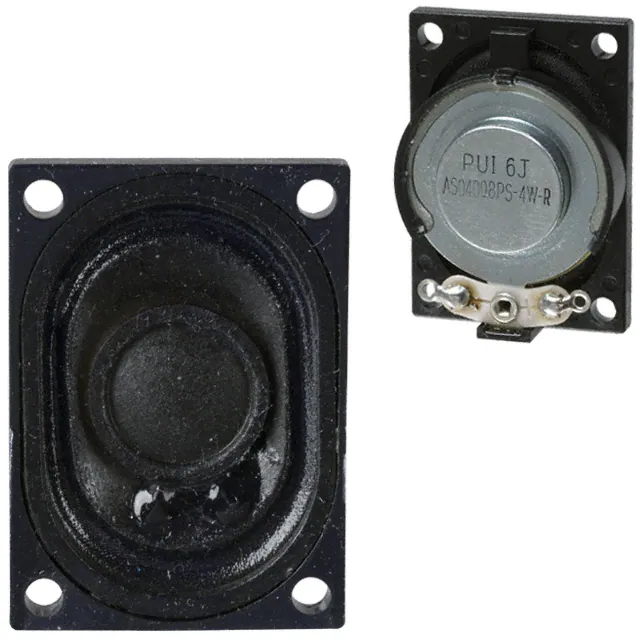

AS04008PS-4W-WR-RSPEAKER 8OHM 2W TOP PORT 84DB |
5,142 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Oval, Rectangular Frame | Paper, Coated | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|
CMS-30205-158L120-67SPEAKER 8OHM 1.5W TOP PORT 96DB |
655 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
|
CES-24156-18PM-67ENCLOSED SPEAKER, 1W, 8OHM |
407 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 960 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
