Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSP-5090SPEAKER 8OHM 5W TOP PORT 91DB |
203 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 330 Hz ~ 19 kHz | 330Hz | 8 Ohms | 91.00 | 1W/100mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | - |
|
AS02204MR-N50-RSPEAKER 4OHM 2W TOP PORT 79DB |
1,121 | - |
|
Datasheet | N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 300Hz | 4 Ohms | 79.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.866" Dia (22.00mm) |
|
AS02804PR-N50-RSPEAKER 4OHM 3W TOP PORT 76.5DB |
2,780 | - |
|
Datasheet | N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 350Hz | 4 Ohms | 76.50 | 3W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
AS07104PO-LW152-RSPEAKER 4OHM 3W TOP PORT 86DB |
390 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
CLS0231-L152SPEAKER 8OHM 1W TOP PORT 89DB |
1,713 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 520 Hz ~ 18 kHz | 650Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|

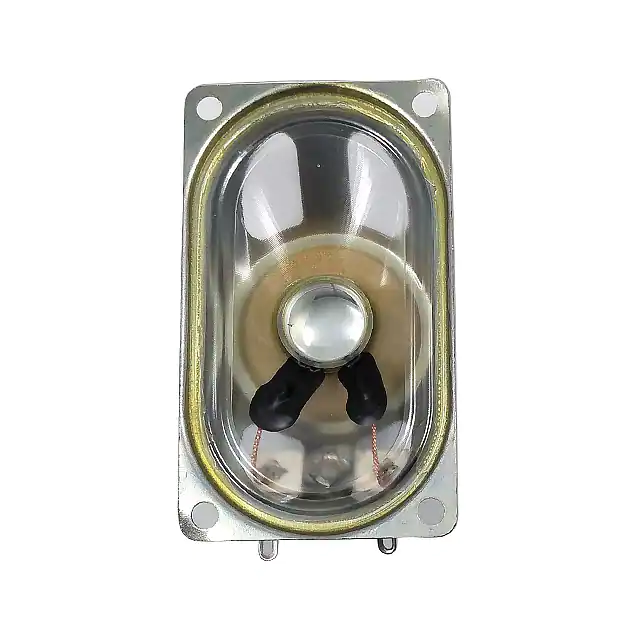

WSP-417108SPEAKER 8OHM 3W TOP PORT 93DB |
289 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 15 kHz | 450Hz | 8 Ohms | 93.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Oval, Rectangular Frame | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
K 23 - 8 OHMSPEAKER 8OHM 300MW TOP PORT 79DB |
2,079 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 420 Hz ~ 20 kHz | 750Hz | 8 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|
AS01808PR-N50-RSPEAKER 8OHM 2W TOP PORT 78DB |
104 | - |
|
Datasheet | N50 Mini Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 20 kHz | 500Hz | 8 Ohms | 78.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 2.8 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Pads | 0.709" Dia (18.00mm) |
|
AS05208PR-4-RSPEAKER 8OHM 10W TOP PORT 77DB |
949 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 200Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 10 W | 12 W | Top | Round | Paper | Rare Earth | - | - | Solder Eyelet(s) | 2.047" Dia (52.00mm) |
|
CES-3990-158PM-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
499 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.08 kHz ~ 20 kHz | 1.35kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.535" Dia (39.00mm) |
|
CES-30207-158L120-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
152 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.36 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
CMS-323214-34SPSPEAKER, 32 X 32 MM, 14.7 MM DEE |
499 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 11 kHz | 230Hz | 4 Ohms | 79.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Foam | Nd-Fe-B | - | - | Solder Tabs | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|
AS04008CO-2-WR-RSPEAKER 8OHM 1.5W TOP PORT 84DB |
1,843 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
|
SMS-2008MS-RSPEAKER 8OHM 800MW TOP PORT 90DB |
5,094 | - |
|
Datasheet | SMS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Square | - | SmCo | - | - | Solder Pads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
CES-434313-28PM-67SPEAKER 8OHM 2W TOP PORT 106DB |
355 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.12 kHz ~ 8 kHz | 1.4kHz | 8 Ohms | 106.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Square | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.713" L x 1.713" W (43.50mm x 43.50mm) |
|
CLS0361-L152SPEAKER 8OHM 2W TOP PORT 88DB |
494 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 360 Hz ~ 20 kHz | 450Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) |
|
GC0251KSPEAKER 8OHM 1W TOP PORT 81DB |
3,209 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 592 Hz ~ 20 kHz | 740Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
AS01208MS-SP12-WP-LW100-RSPEAKER 8OHM 300MW TOP PORT 88DB |
1,300 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 850 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Wire Leads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
CDS-15158-SMT-TRSPEAKER 8OHM 300MW TOP PORT 87DB |
6,590 | - |
|
Datasheet | CDS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Sm2Co17 | - | Washable | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
CDS-40304-L1003SPEAKER 4OHM 2W TOP PORT 79DB |
29,682 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
