Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K 16 - 50 OHMSPEAKR 50OHM 500MW TOP PORT 71DB |
419 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 700 Hz ~ 20 kHz | - | 50 Ohms | 71.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Wire Leads | 0.630" Dia (16.00mm) |
|
CES-803118-28PMSPEAKER 8OHM 2W TOP PORT 100DB |
549 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 3.150" L x 1.224" W (80.00mm x 31.10mm) |
|
CES-303206-240L40-67SPEAKER 4OHM 2W TOP PORT 101DB |
501 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.28 kHz ~ 20 kHz | 1.6kHz | 4 Ohms | 101.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
CES-703116-28PMSPEAKER 8OHM 2W TOP PORT 102DB |
347 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 710 Hz ~ 20 kHz | 710Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.220" W (70.00mm x 31.00mm) |
|
CES-361811-18PM-67SPEAKER 8OHM 1W TOP PORT 89DB |
297 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.213" L x 0.622" W (30.80mm x 15.80mm) |
|
K 14.25 - 8 OHMSPEAKER 8OHM 1W TOP PORT 72DB |
333 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 500 Hz ~ 20 kHz | 950Hz | 8 Ohms | 72.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Plastic | - | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
AS09008PO-11-RSPEAKER 8OHM 5W TOP PORT 85DB |
160 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 10 kHz | 180Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Oval, Rectangular Frame | - | Ferrite | - | - | Solder Eyelet(s) | 3.543" L x 1.969" W (90.00mm x 50.00mm) |
|
CMS0201KLXSPEAKER 8OHM 2W TOP PORT 80DB |
285 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 424 Hz ~ 20 kHz | 530Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|

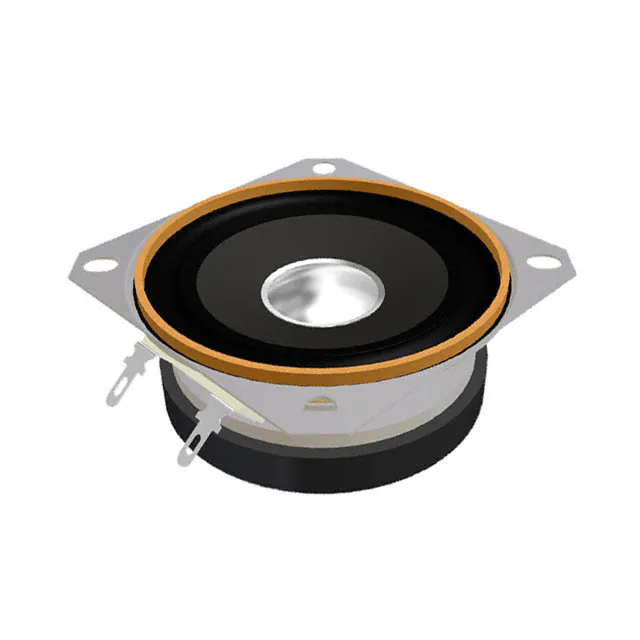

AS06608PS-RSPEAKER 8OHM 4W TOP PORT 95DB |
799 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 230 Hz ~ 12 kHz | 230Hz | 8 Ohms | 95.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.610" L x 2.610" W (66.30mm x 66.30mm) |
|
|
CES-403015-24PM-67ENCLOSED SPEAKER, 2W, 4OHM |
369 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 1kHz | 4 Ohms | 108.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Polyethylenimine (PEI) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
PSR4028F08S11.5KSPEAKER 8OHM 1W TOP PORT 78DB |
335 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 390 Hz ~ 15 kHz | 390Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
K 57 FL - 8 OHMSPEAKER 8OHM 1W TOP PORT 83DB |
588 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 220 Hz ~ 16 kHz | 350Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 2.244" Dia (57.00mm) |
|
K 50 FL - 8 OHMSPEAKER 8OHM 1W TOP PORT 80DB |
267 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 8 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Plastic | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
AS04004MR-N50-WP-2-RSPEAKER 4OHM 5W TOP PORT 84DB |
684 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 180Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round | - | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
CES-503528-28PM-67SPEAKER 8OHM 2W TOP PORT 97DB |
433 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 544 Hz ~ 20 kHz | 680Hz | 8 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
|

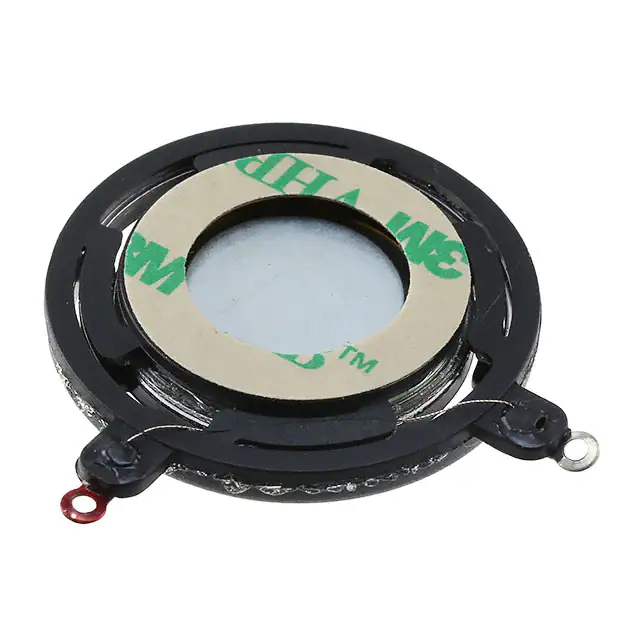

ASX03304-SM-RSPEAKER 4OHM 2W TOP PORT 80DB |
1,316 | - |
|
Datasheet | ASX | Bulk | Active | Magnetic | Exciter | 420 Hz ~ 10.5 kHz | 420Hz | 4 Ohms | 80.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.300" Dia (33.00mm) |
|

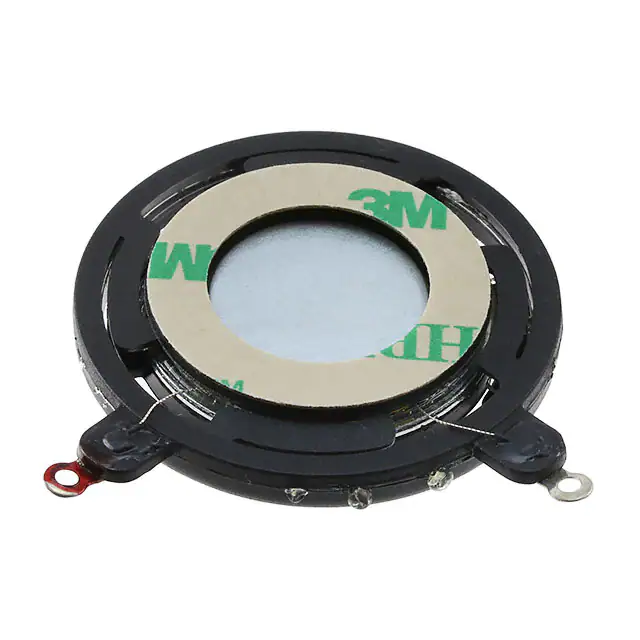

ASX03308-SM-RSPEAKER 8OHM 2W TOP PORT 77DB |
140 | - |
|
Datasheet | ASX | Tray | Active | Magnetic | Exciter | 420 Hz ~ 10.5 kHz | 420Hz | 8 Ohms | 77.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.300" Dia (33.00mm) |
|
K 50 FLS - 8 OHMSPEAKER 8OHM 1W TOP PORT 85DB |
571 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 350 Hz ~ 20 kHz | 570Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
SP400204-2SPEAKER 4OHM 3W TOP PORT 96DB |
1,854 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 20 kHz | 240Hz | 4 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | Paper/Foam | - | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
HPD-40N16PET00-32SPEAKR 32.9OHM 10MW TOP 89.6DB |
103 | - |
|
Datasheet | HPD | Bulk | Active | Magnetic | Full Range | 20 Hz ~ 20 kHz | 81.8Hz | 32.9 Ohms | 89.60 | 1W/1M | Half Space Sensitivity | 10 mW | - | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
