Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

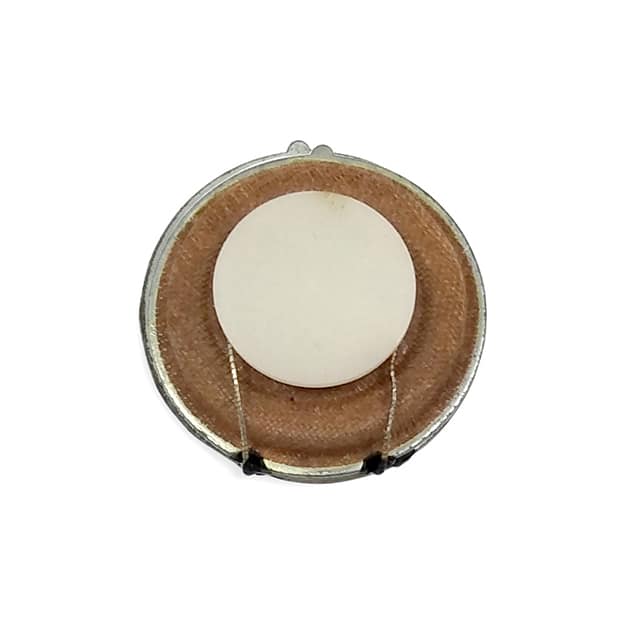

E-2702SPEAKER 2 OHM 1W TOP PORT 92DB |
355 | - |
|
Datasheet | - | Tray | Active | Magnetic | Exciter | 400 Hz ~ 20 kHz | 400Hz | 2 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | - | - | Solder Pads | 1.035" Dia (26.30mm) |
|

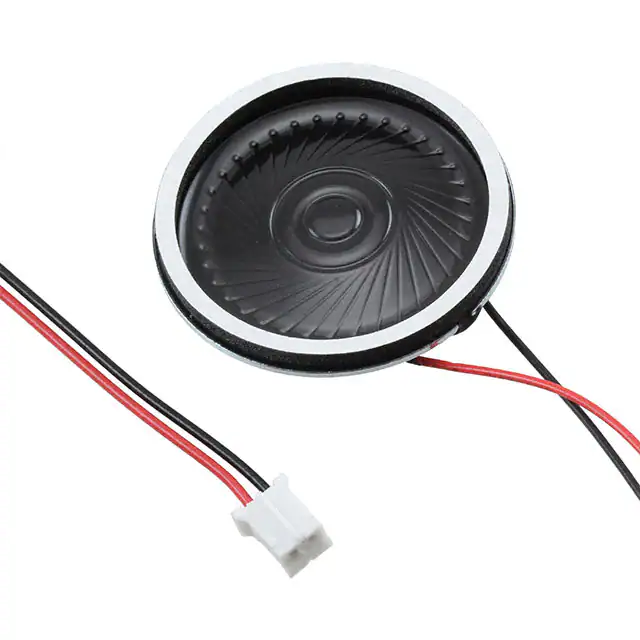

SP-4005-1SPEAKER 8OHM 1W TOP PORT 93DB |
339 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 430Hz | 8 Ohms | 93.00 | 100mW/50mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
AS01208MS-SP12-WP-RSPEAKER 8OHM 300MW TOP PORT 88DB |
232 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 850 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
CLS0281-L152SPEAKER 8OHM 1W TOP PORT 82DB |
19,979 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-40504N-L152ASPEAKER 4OHM 2W TOP PORT 100DB |
1,219 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|
SMS-1504MS-2-RSPEAKER 4OHM 500MW TOP PORT 87DB |
954 | - |
|
Datasheet | SMS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 87.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
CMS-30205-124L40-67SPEAKER 4OHM 1.2W TOP PORT 95DB |
931 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
GF0401MSPEAKER 8OHM 40MW TOP PORT 99DB |
14,036 | - |
|
Datasheet | GF | Tray | Active | Magnetic | General Purpose | 144 Hz ~ 20 kHz | 180Hz | 8 Ohms | 99.00 | 100mW/100mm | Sound Pressure Level (SPL) | 40 mW | 100 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
AS05008PR-A-RSPEAKER 8OHM 1W TOP PORT 84DB |
368 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 5 kHz | 550Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
AS04004PO-2-LW152-RSPEAKER 4OHM 3W TOP PORT 82DB |
1,604 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 420Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | Paper | Rare Earth | - | - | Wire Leads | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
PSR40N08AKSPEAKER 8OHM 1W TOP PORT 83DB |
345 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 560 Hz ~ 6 kHz | 560Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SW221408-1SPEAKER 8OHM 1W TOP PORT 92DB |
235 | - |
|
Datasheet | Agile 67 | Bulk | Active | Magnetic | General Purpose | 1.4 kHz ~ 10 kHz | 1.4kHz | 8 Ohms | 92.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.866" L x 0.512" W (22.00mm x 13.00mm) |
|

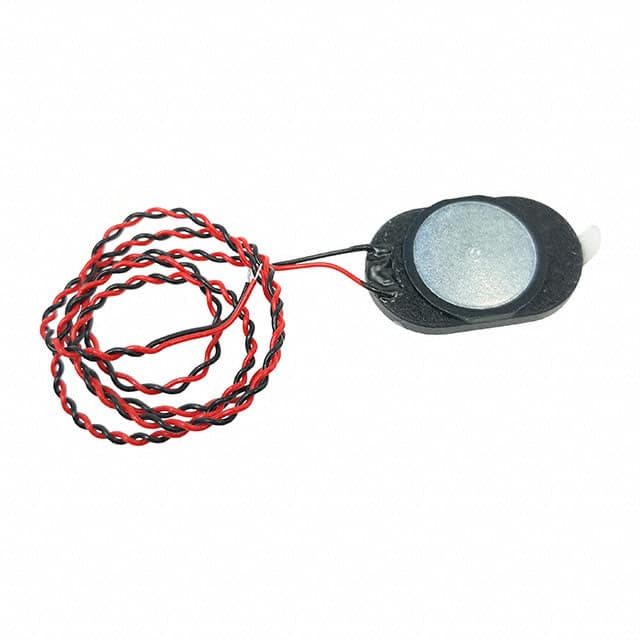

WSPH-2415SPEAKER 8OHM 1W TOP PORT 89DB |
210 | - |
|
Datasheet | WSP | Tray | Active | Magnetic | General Purpose | 1 kHz ~ 10 kHz | 1kHz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
AS05708MR-RSPEAKER 8OHM 500MW TOP PORT 90DB |
103 | - |
|
Datasheet | AS | Bulk | Active | Magnetic | General Purpose | 450 Hz ~ 4.5 kHz | 450Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
|
CMS-23558N-L152BSPEAKER 8OHM 1W TOP PORT 80DB |
131 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) |
|
WSP-7708SPEAKER 8OHM 3W TOP PORT 106DB |
800 | - |
|
Datasheet | WSP | Bulk | Active | Magnetic | General Purpose | 0 Hz ~ 7 kHz | 430Hz | 8 Ohms | 106.00 | 1W/10cm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | - | - | IP65 - Dust Tight, Waterproof Face | - | Solder Eyelet(s) | 3.039" L x 3.039" W (77.20mm x 77.20mm) |
|
AST-01532MR-RSPEAKR 32OHM 300MW TOP PORT 87DB |
603 | - |
|
Datasheet | AST | Tray | Active | Magnetic | General Purpose | 2.1 kHz ~ 20 kHz | 2100Hz | 32 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.591" Dia (15.00mm) |
|
WSP-5708SPEAKER 8OHM 3W TOP PORT 100DB |
9,881 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 710 Hz ~ 9 kHz | 710Hz | 8 Ohms | 100.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 2.236" Dia (56.80mm) |
|
WSP-4508-7SPEAKER 8OHM 3W TOP PORT 101DB |
295 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 5 kHz | 900Hz | 8 Ohms | 101.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) |
|
AS04008CO-WR-RSPEAKER 8OHM 2W TOP PORT 83DB |
10,287 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 400Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
