Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CES-24208-18PM-X7ENCLOSED SPEAKER, 1W, 8OHM |
458 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 90.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.945" L x 0.787" W (24.00mm x 20.00mm) |
|
CMS-15118D-L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,025 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

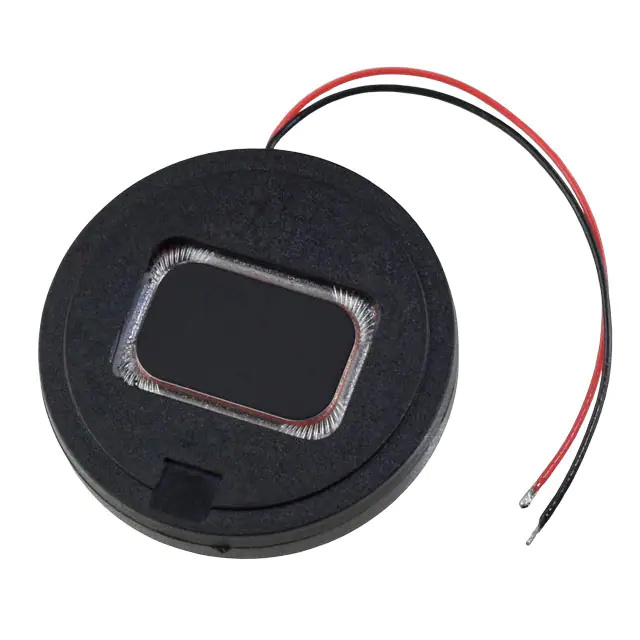

CES-2704-088L050SPEAKER 8OHM 800MW TOP PORT 90DB |
564 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 50 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Plastic | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) |
|
CES-26138-16L030SPEAKER 6OHM 1.2W TOP PORT 95DB |
377 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 1kHz | 6 Ohms | 95.00 | 1.2W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 1.024" L x 0.512" W (26.00mm x 13.00mm) |
|
|
CMS-201437-24SP-X8SPEAKER, 20 X 14 MM, 3.7 MM DEEP |
623 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1.05kHz | 4 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|

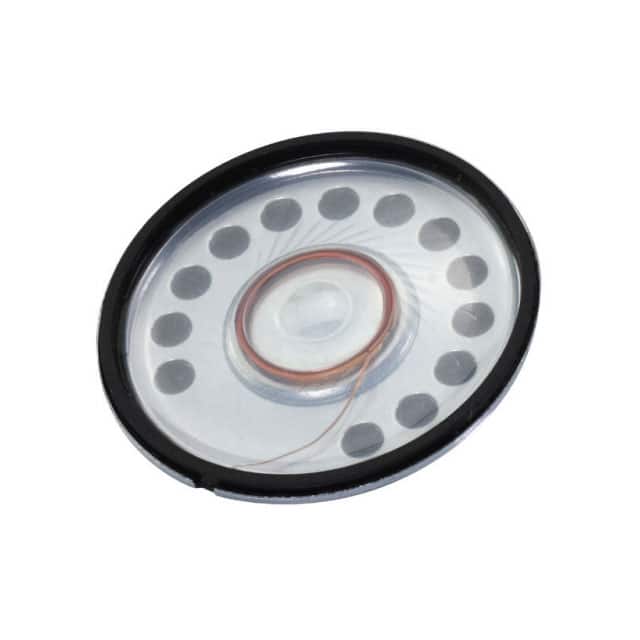

CMS-405-158N-67SPEAKER 8OHM 1.5W TOP PORT 103DB |
1,247 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 103.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) |
|
CDS-27204-L1006SPEAKER 4OHM 2W TOP PORT 93DB |
1,618 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
|
CDS-5715-254SP-X5SPEAKER, 57 X 15.5 MM DEEP, PEEK |
713 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 384 Hz ~ 4.5 kHz | 480Hz | 4 Ohms | 107.00 | 2W/100mm | Sound Pressure Level (SPL) | 2.5 W | 3 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | IPX5 | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|

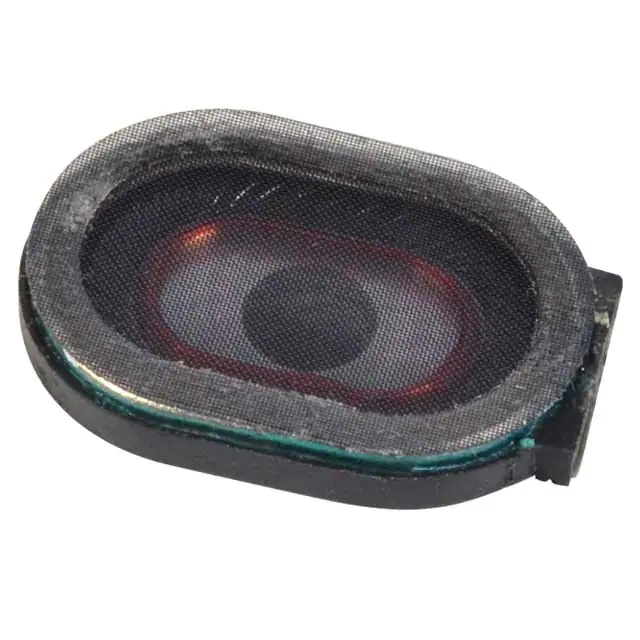

CDS-20144SPEAKER 4OHM 1W TOP PORT 92DB |
1,188 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 4 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
CDS-27208-L100SPEAKER 8OHM 2W TOP PORT 95DB |
2,913 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
