Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS0361-L152SPEAKER 8OHM 2W TOP PORT 88DB |
494 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 360 Hz ~ 20 kHz | 450Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) |
|

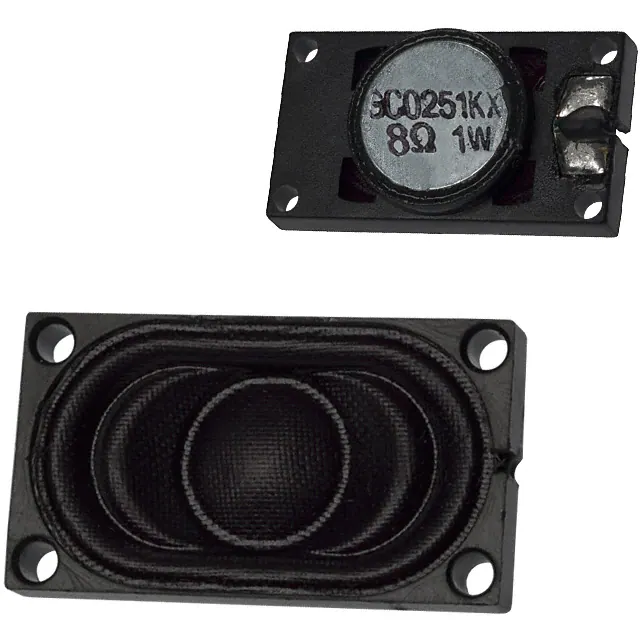

GC0251KSPEAKER 8OHM 1W TOP PORT 81DB |
3,209 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 592 Hz ~ 20 kHz | 740Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CDS-15158-SMT-TRSPEAKER 8OHM 300MW TOP PORT 87DB |
6,590 | - |
|
Datasheet | CDS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Sm2Co17 | - | Washable | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
CDS-40304-L1003SPEAKER 4OHM 2W TOP PORT 79DB |
29,682 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-803118-28PMSPEAKER 8OHM 2W TOP PORT 100DB |
549 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 200 Hz ~ 20 kHz | 650Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 3.150" L x 1.224" W (80.00mm x 31.10mm) |
|
CES-303206-240L40-67SPEAKER 4OHM 2W TOP PORT 101DB |
501 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.28 kHz ~ 20 kHz | 1.6kHz | 4 Ohms | 101.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
CES-703116-28PMSPEAKER 8OHM 2W TOP PORT 102DB |
347 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 710 Hz ~ 20 kHz | 710Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.220" W (70.00mm x 31.00mm) |
|
CES-361811-18PM-67SPEAKER 8OHM 1W TOP PORT 89DB |
297 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 89.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.213" L x 0.622" W (30.80mm x 15.80mm) |
|

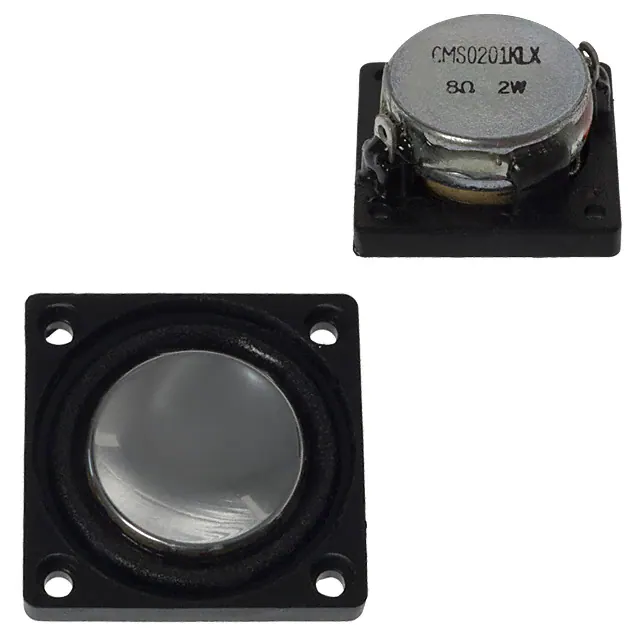

CMS0201KLXSPEAKER 8OHM 2W TOP PORT 80DB |
285 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 424 Hz ~ 20 kHz | 530Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
CES-403015-24PM-67ENCLOSED SPEAKER, 2W, 4OHM |
369 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 1kHz | 4 Ohms | 108.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Polyethylenimine (PEI) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
