Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS0271M-L152SPEAKER 8OHM 100MW TOP PORT 89DB |
1,097 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 530 Hz ~ 20 kHz | 530Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.063" Dia (27.00mm) |
|
CMS-30205-158L120-67SPEAKER 8OHM 1.5W TOP PORT 96DB |
655 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 720 Hz ~ 20 kHz | 900Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
CES-24156-18PM-67ENCLOSED SPEAKER, 1W, 8OHM |
407 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 960 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
CLS0281-L152SPEAKER 8OHM 1W TOP PORT 82DB |
19,979 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-40504N-L152ASPEAKER 4OHM 2W TOP PORT 100DB |
1,219 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|
CMS-30205-124L40-67SPEAKER 4OHM 1.2W TOP PORT 95DB |
931 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|

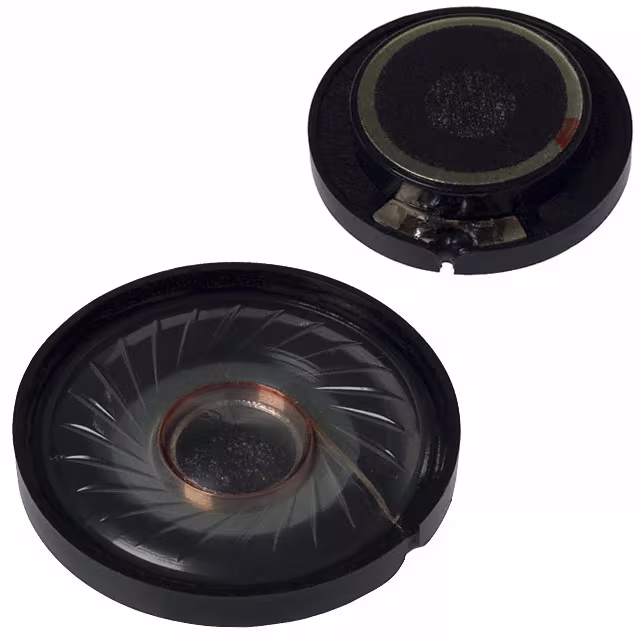

GF0401MSPEAKER 8OHM 40MW TOP PORT 99DB |
14,036 | - |
|
Datasheet | GF | Tray | Active | Magnetic | General Purpose | 144 Hz ~ 20 kHz | 180Hz | 8 Ohms | 99.00 | 100mW/100mm | Sound Pressure Level (SPL) | 40 mW | 100 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
|
CMS-23558N-L152BSPEAKER 8OHM 1W TOP PORT 80DB |
131 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) |
|

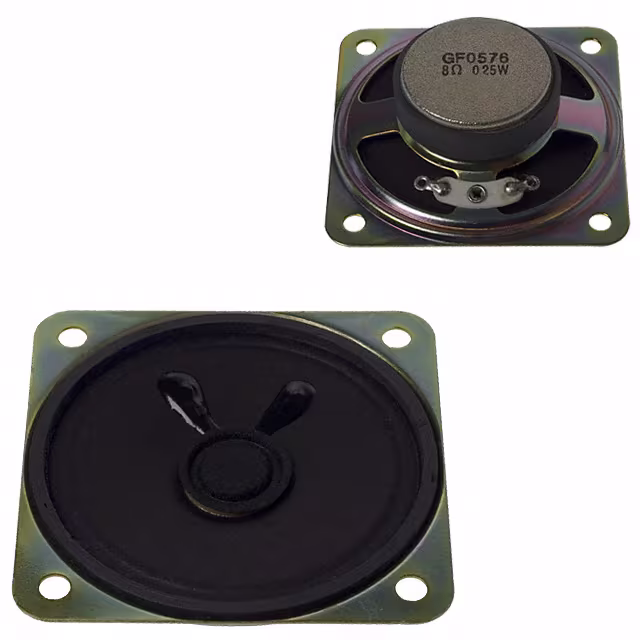

GF0576SPEAKER 8OHM 250MW TOP PORT 86DB |
1,719 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 380 Hz ~ 8.1 kHz | 380Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) |
|
GF0501SPEAKER 8OHM 250MW TOP PORT 87DB |
1,146 | - |
|
Datasheet | GF | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5.9 kHz | 450Hz | 8 Ohms | 87.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
