Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

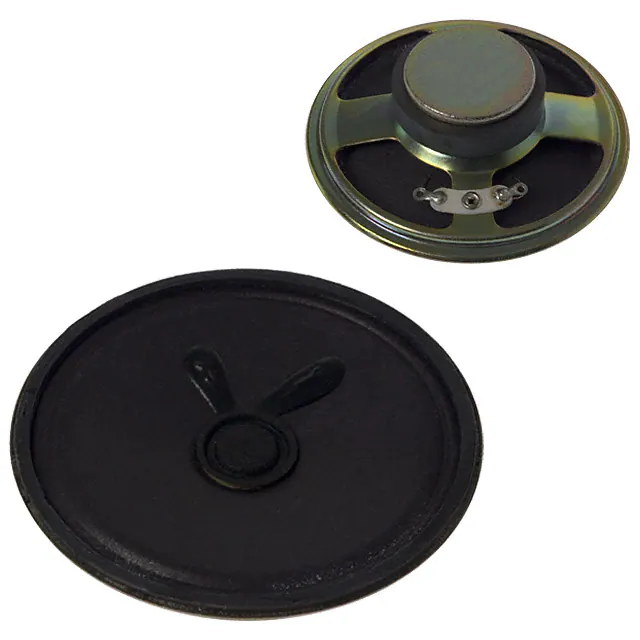

GF0771SPEAKER 8OHM 1W TOP PORT 92DB |
193 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 180 Hz ~ 10 kHz | 180Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.032" Dia (77.00mm) |
|
CES-32166-18PM-X7ENCLOSED SPEAKER, 1W, 8OHM |
521 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 1.024 kHz ~ 20 kHz | 1.28kHz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.260" L x 0.630" W (32.00mm x 16.00mm) |
|
CLS0362MA-1-L152SPEAKER 8OHM 500MW TOP PORT 89DB |
505 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 6 kHz | 550Hz | 8 Ohms | 89.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) |
|
GA0776SPEAKER 8OHM 1W TOP PORT 92DB |
845 | - |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 192 Hz ~ 7 kHz | 270Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
|
|
CMS-2511-34SPSPEAKER, 25 MM, 11 MM DEEP, ALUM |
310 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Tabs | 0.984" Dia (25.00mm) |
|
CLS0231-L152SPEAKER 8OHM 1W TOP PORT 89DB |
1,713 | - |
|
Datasheet | CLS | Tray | Active | Magnetic | Low Profile | 520 Hz ~ 18 kHz | 650Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CES-3990-158PM-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
499 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.08 kHz ~ 20 kHz | 1.35kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.535" Dia (39.00mm) |
|
CES-30207-158L120-67SPEAKER 8OHM 1.5W TOP PORT 100DB |
152 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.36 kHz ~ 20 kHz | 1.7kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|
|
CMS-323214-34SPSPEAKER, 32 X 32 MM, 14.7 MM DEE |
499 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 11 kHz | 230Hz | 4 Ohms | 79.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Foam | Nd-Fe-B | - | - | Solder Tabs | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|
CES-434313-28PM-67SPEAKER 8OHM 2W TOP PORT 106DB |
355 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 1.12 kHz ~ 8 kHz | 1.4kHz | 8 Ohms | 106.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Square | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.713" L x 1.713" W (43.50mm x 43.50mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
