Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
WT252512-8F2-SM TX 1 COIL 1 LYR 2.76UH TDK Corporation	1,645	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	2.76µH	±5%	70mOhm	-	-	-	-	-	0.98" Dia x 0.08" H (25.0mm x 2.1mm)
WT242490-30F2-G TX 1 COIL 2 LYR 12.9UH TDK Corporation	275	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	12.9µH	±10%	165mOhm	-	-	-	-	-	0.97" Dia x 0.09" H (24.5mm x 2.4mm)
WR282840-37K2-LR3 RX 1 COIL 1 LYR 46UH TDK Corporation	608	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	46µH	-	1.25Ohm	-	-	-	-	-	-

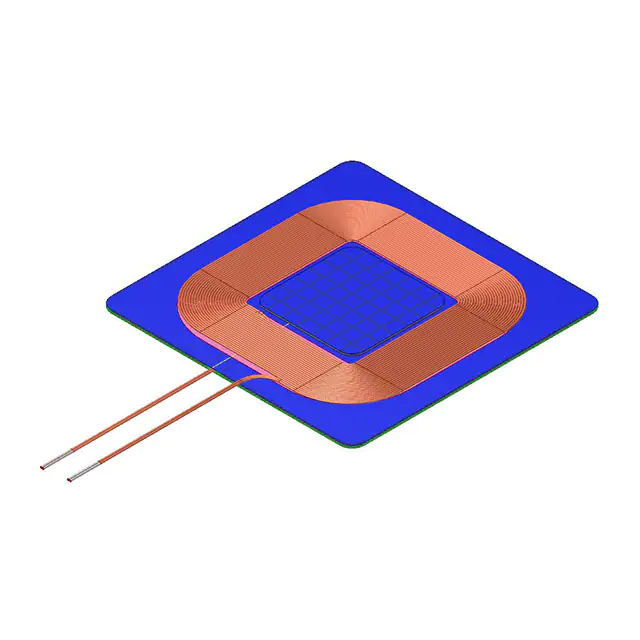

WR424245-13K2-G RX 1 COIL, 1 LYR 11.9UH TDK Corporation	10,269	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	11.9µH	-	220mOhm	-	-	-	-	-	1.65" L x 1.65" W x 0.04" H (42.0mm x 42.0mm x 0.9mm)
WRSC-13R0K-26 WIRELESS CHARGE COIL 13.0UH 2.0A Signal Transformer	114	-	RFQ	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 4 Layer	13µH	±10%	500mOhm	17 @ 125kHz	800mA	2A	-	-25°C ~ 105°C	0.41" Dia x 0.07" H (10.3mm x 1.9mm)
WRSC-7R2K-32 WIRELESS CHARGE COIL 7.2UH 0.80A Signal Transformer	121	-	RFQ	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 4 Layer	7.2µH	±10%	440mOhm Max	10 @ 125kHz	500mA	1A	-	-25°C ~ 105°C	0.24" Dia x 0.08" H (6.0mm x 2.0mm)
WT505090-10F2-A11-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	133	-	RFQ	Datasheet	WT	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-	2.02" Dia x 0.13" H (51.4mm x 3.4mm)

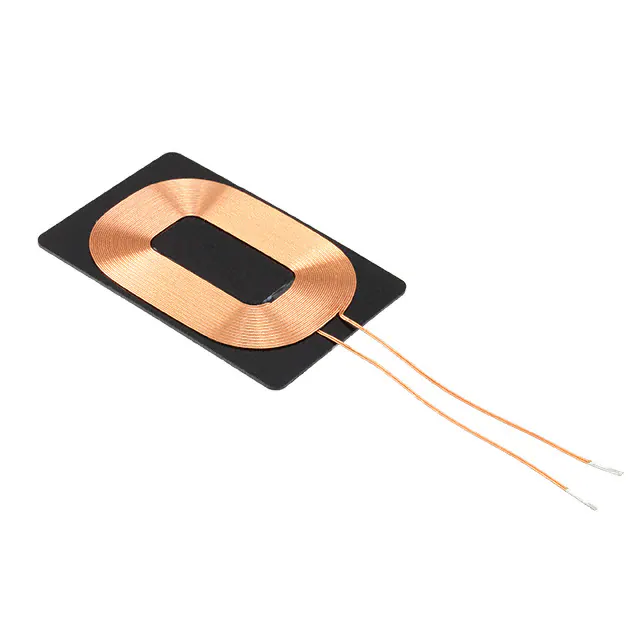

WR483265-15F5-G RX 1 COIL 1 LYR 13.3UH TDK Corporation	664	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	13.3µH	-	200mOhm	-	1.87A	-	-	-	1.89" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.2mm)
760308103204 RX 1 COIL 1 LAYER 16.7UH 1A Würth Elektronik	201	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	16.7µH	±10%	430mOhm	32 @ 125kHz	1A	4A	11MHz	-20°C ~ 105°C	1.52" L x 1.20" W x 0.03" H (38.5mm x 30.5mm x 0.83mm)
WRSC-26R0K-11 WIRELESS CHARGE COIL 26.0UH 2.0A Signal Transformer	126	-	RFQ	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 3 Layer	26µH	±10%	520mOhm	25 @ 125kHz	1.1A	2A	-	-25°C ~ 105°C	0.75" Dia x 0.03" H (19.0mm x 0.8mm)
760308101219 RX 1 COIL 1 LAYER 11.8UH 700MA Würth Elektronik	139	-	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer	11.8µH	±10%	750mOhm Max	13 @ 125kHz	700mA	1.5A	22MHz	-20°C ~ 105°C	0.59" Dia x 0.02" H (15.0mm x 0.6mm)

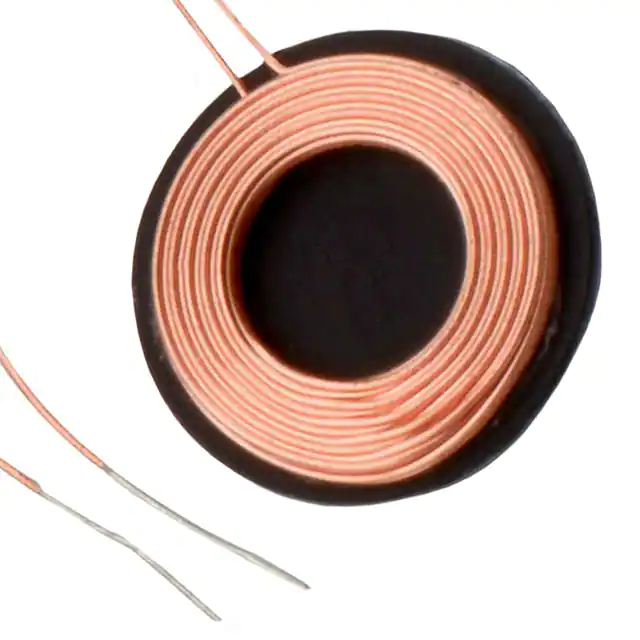

760308101208A RX 1 COIL 3 LAYER 18UH 700MA Würth Elektronik	158	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 3 Layer	18µH	±10%	650mOhm Max	18 @ 125kHz	700mA	2A	24MHz	-20°C ~ 105°C	0.39" Dia x 0.07" H (10.0mm x 1.7mm)
WRSC-47R0K-08 WIRELESS CHARGE COIL 47.0UH 3.0A Signal Transformer	205	-	RFQ	Datasheet	WRSC	Bulk	Active	Transmitter	1 Coil, 3 Layer	47µH	±10%	500mOhm	25 @ 125kHz	1.5A	3A	-	-25°C ~ 105°C	1.02" Dia x 0.05" H (26.0mm x 1.3mm)

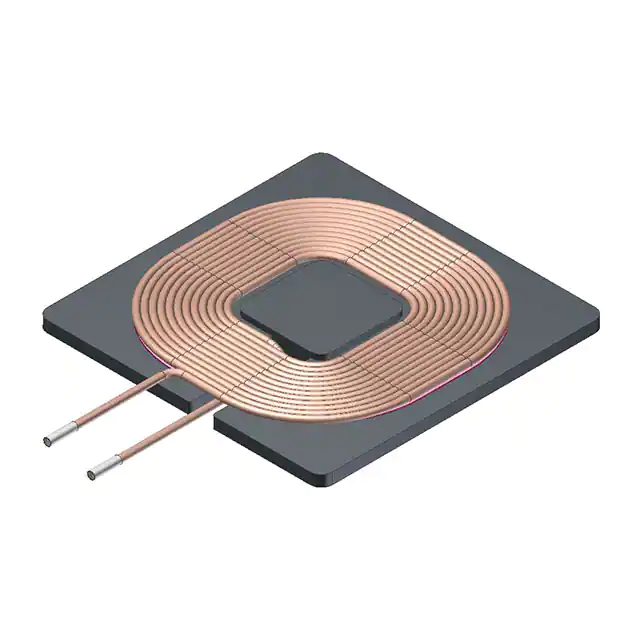

WT525225-12F2-MA2-G TX 1 COIL, 1 LYR 10.5UH TDK Corporation	349	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	10.5µH	-	60mOhm	-	-	-	-	-	2.05" L x 2.05" W x 0.15" H (52.0mm x 52.0mm x 3.7mm)
760308101309 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	339	-	RFQ	Datasheet	WE-WPCC	Bulk	Active	Receiver	1 Coil, 1 Layer	10µH	±10%	450mOhm	20 @ 125kHz	1.5A	5A	19MHz	-20°C ~ 105°C	1.035" Dia x 0.019" H (26.30mm x 0.49mm)
760308102207 RX 1 COIL 1 LYR BIFILAR 8UH 5A Würth Elektronik	342	-	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 1 Layer, Bifilar	8µH	±10%	60mOhm	30 @ 125kHz	5A	10A	16MHz	-20°C ~ 105°C	1.57" L x 1.57" W x 0.13" H (40.0mm x 40.0mm x 3.3mm)
760308101208 RX 1 COIL 3 LAYER 13UH 0.8A Würth Elektronik	154	-	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer	13µH	±10%	400mOhm	17 @ 125kHz	0.8A	2A	26MHz	-20°C ~ 105°C	0.39" Dia x 0.07" H (10.0mm x 1.7mm)
760308101103 TX 1 COIL 1 LAYER 6.5UH 3A Würth Elektronik	1,858	-	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	180mOhm Max	35 @ 125kHz	3A	8A	20MHz	-20°C ~ 105°C	1.18" L x 1.18" W x 0.07" H (30.0mm x 30.0mm x 1.9mm)
760308101303 RX 1 COIL 3 LYR BIFILAR 47UH Würth Elektronik	1,286	-	RFQ	Datasheet	WE-WPCC	Box	Active	Receiver	1 Coil, 3 Layer, Bifilar	47µH	±10%	460mOhm	25 @ 125kHz	1.5A	3A	8MHz	-20°C ~ 105°C	1.02" L x 1.02" W x 0.05" H (26.0mm x 26.0mm x 1.3mm)

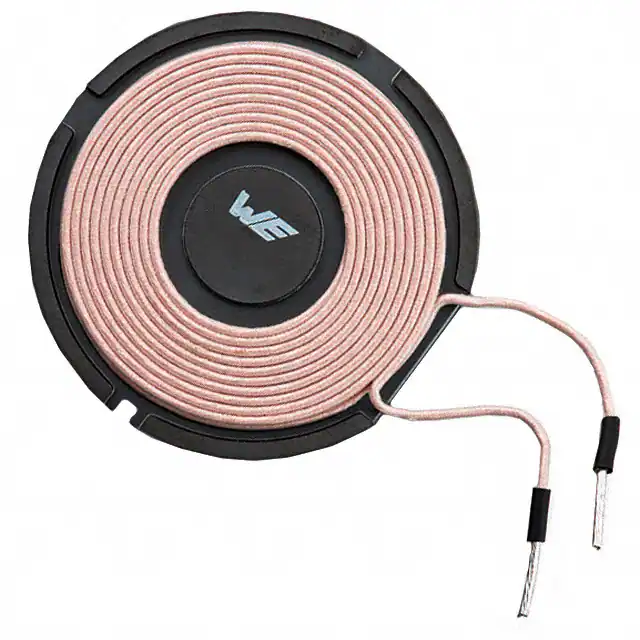

760308100110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	554	-	RFQ	Datasheet	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	70mOhm	180 @ 125kHz	6A	10A	5MHz	-20°C ~ 105°C	1.97" Dia x 0.24" H (50.0mm x 6.0mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
