Wireless Charging Coils
Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCC-2020-RX-NLINDUCTOR |
3,722 | - |
|
Datasheet | - | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 275mOhm | - | - | - | - | -25°C ~ 85°C | 0.79" L x 0.79" W x 0.04" H (20.0mm x 20.0mm x 1.0mm) |
|
AWCCA-18R18H10-C01-BRX 1 COIL 1 LAYER 10.5UH |
4,591 | - |
|
Datasheet | AWCCA | Bulk | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 330mOhm | 17 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.72" Dia x 0.04" H (18.3mm x 1.0mm) |
|
SCR35018R3KBRX 1 COIL 2 LAYER 8.3UH 2000MA |
380 | - |
|
Datasheet | SCR | Bag | Active | Receiver | 1 Coil, 1 Layer | 8.3µH | ±10% | 160mOhm Max | - | 2A | - | - | -40°C ~ 85°C | 1.38" Dia x 0.05" H (35.0mm x 1.2mm) |
|
|
IWTX55R0DZEB8R9KF1WIRELESS CHARGING TRANSMIT COIL |
552 | - |
|
Datasheet | - | Tray | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | 98.5 @ 100kHz | 6A | - | - | -40°C ~ 125°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|
|
IWTX5555DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
216 | - |
|
Datasheet | - | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | 99 @ 100kHz | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|

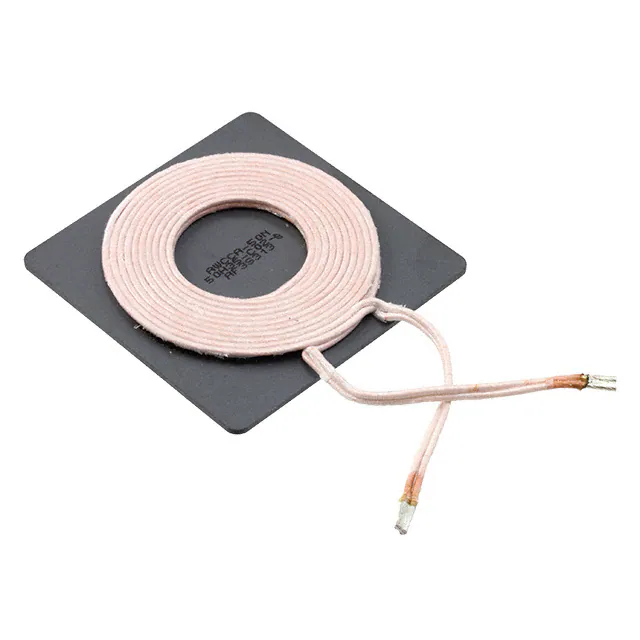

AWCCA-50N50H35-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
4,232 | - |
|
Datasheet | AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 10.6A | 36A | 6.4MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|

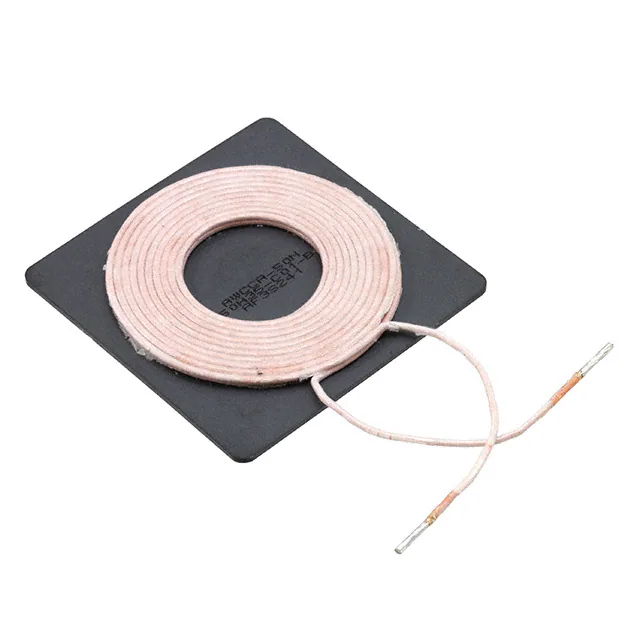

AWCCA-50N50H35-C01-BRX TX 1 COIL 1 LAYER 24UH 5.4A |
2,390 | - |
|
Datasheet | AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 160 @ 100kHz | 5.4A | 21A | 3MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|
|
IWTX5050DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
427 | - |
|
Datasheet | - | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.18" H (50.0mm x 4.5mm) |
|
|
IWAS3222CZEB190JF1IWAS-3222CZ-F1 19 5% EB E2 |
1,512 | - |
|
Datasheet | - | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 29 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.26" L x 0.87" W (32.0mm x 22.0mm) |
|

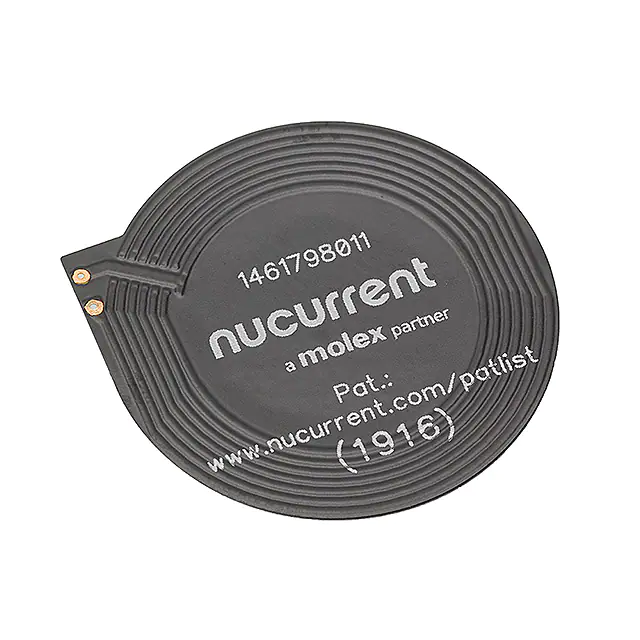

1461798011RX 1 COIL 1 LAYER 2.6UH |
3,849 | - |
|
Datasheet | NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 2.6µH | ±2% | 245mOhm | 90 @ 6.78MHz | - | - | - | - | 1.04" Dia x 0.02" H (26.5mm x 0.5mm) |
|
|
IWTX4646DCEB240JF1IWTX-4646DC-F1 24 5% EB E2 |
1,036 | - |
|
Datasheet | - | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) |
|
|
IWTX9955DEEB110KF3WIRELESS CHARGING TRANSMIT COIL |
219 | - |
|
Datasheet | - | Tray | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH, 11.3µH, 11.3µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 6.5A | - | - | -40°C ~ 125°C | 3.90" L x 2.19" W x 0.16" H (99.0mm x 55.6mm x 4.0mm) |
|

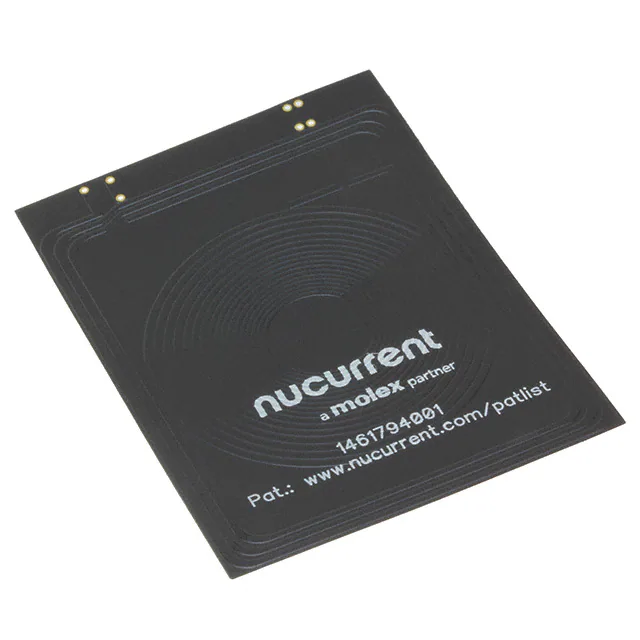

1461794001RX 2 COIL, 1 LYR 8.9UH |
5,492 | - |
|
Datasheet | NuCurrent, PowerLife, 146179 | Box | Active | Receiver | 2 Coil, 1 Layer | 8.9µH | ±2% | 350mOhm | 25 @ 200kHz | - | - | - | - | 2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm) |
|
|
IWTXA148DGEB9R8KF3WIRELESS CHARGING TRANSMIT COIL |
129 | - |
|
Datasheet | - | Tray | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 7A | - | - | -40°C ~ 125°C | 4.01" L x 2.26" W x 0.19" H (101.8mm x 57.3mm x 4.7mm) |
|
|
IWTXA653FZEB120KF3WIRELESS CHARGING TRANSMIT COIL |
230 | - |
|
Datasheet | - | Tray | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz | 6.5A | - | - | -40°C ~ 85°C | 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) |
|
|
IWTX5547EEEB8R5KF1INDUCT WW SNGL COIL MISC |
1,265 | - |
|
Datasheet | - | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 8.5µH | ±10% | 56mOhm | 140 @ 125kHz | 6A | 10A | 11MHz | -40°C ~ 105°C | 2.17" L x 1.85" W x 0.22" H (55.0mm x 47.0mm x 5.5mm) |
|
SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 | - |
|
Datasheet | SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|
WR222230-26M8-GRX 1 COIL 2 LYR 27UH |
4,471 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27µH | - | 1.1Ohm Max | - | - | - | - | - | 0.87" Dia x 0.03" H (22.0mm x 0.9mm) |
|
760308101141WE-WPCC WIRELESS POWER CHARGING |
1,167 | - |
|
Datasheet | WE-WPCC | Bulk | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 220 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C | 1.97" Dia x 0.20" H (50.0mm x 5.0mm) |
|

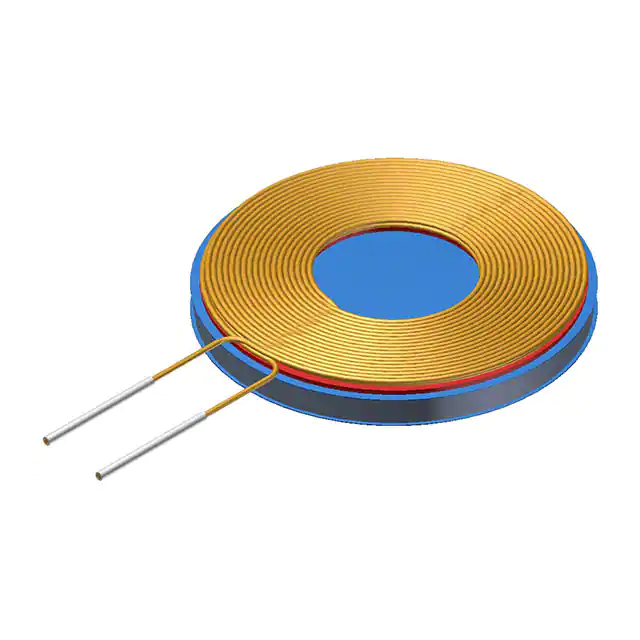

WR111180-36F5-B1RX 1 COIL 2 LYR 16.6UH |
3,226 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 16.6µH | - | 1Ohm | - | - | - | - | - | 0.43" Dia x 0.06" H (11.0mm x 1.5mm) |
Wireless Charging Coils FAQ
What Wireless Charging Coils components can I source from EGOO?
You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
