Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension
IWAS4532AGEB140KF1 WIRELESS CHARGING RECEIVE COIL Vishay Dale	990	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm Max	24 @ 100kHz	1.2A	-	-	-40°C ~ 85°C	1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)
WRSR-12R0K-13 WIRELESE CHARGE COIL 12.0UH 6.0A Signal Transformer	452	-	RFQ	Datasheet	WRSR	Bulk	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	200mOhm Max	33 @ 125kHz	3A	6A	-	-25°C ~ 105°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)

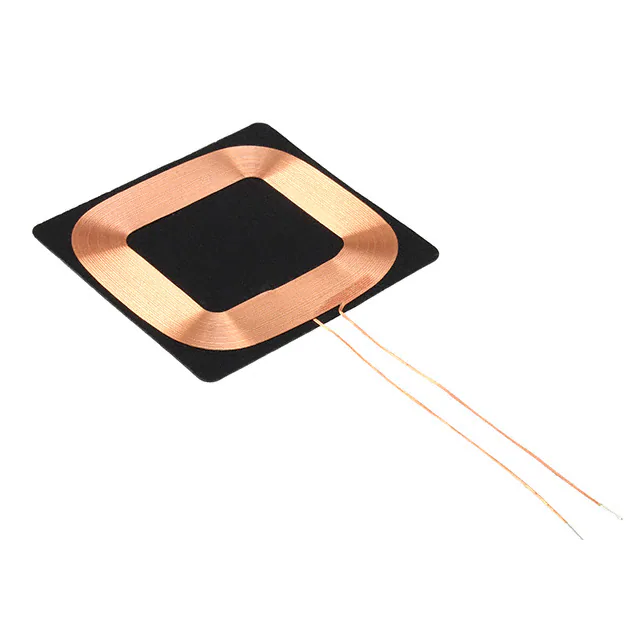

WR444030-16F3-G RX 1 COIL 1 LYR 19UH TDK Corporation	518	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	19µH	-	700mOhm	-	-	-	-	-	1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.6mm)
WRSR-16R7K-11 WIRELESE CHARGE COIL 16.7UH 4.0A Signal Transformer	405	-	RFQ	Datasheet	WRSR	Bulk	Active	Receiver	1 Coil, 1 Layer	16.7µH	±10%	430mOhm Max	32 @ 125kHz	2.5A	4A	-	-25°C ~ 105°C	1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm)
WR555540-16K2-FS2 RX 1 COIL 2 LYR 15.8UH TDK Corporation	544	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 2 Layer	15.8µH	-	100mOhm	98 @ 100kHz	-	-	-	-	2.13" L x 2.13" W x 0.09" H (54.0mm x 54.0mm x 2.4mm)
WT505090-10F2-LP-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	115	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-	2.02" Dia x 0.13" H (51.4mm x 3.4mm)

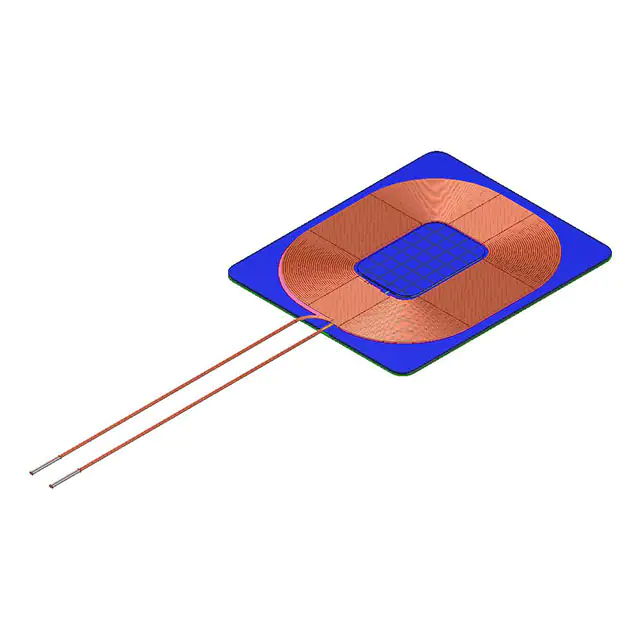

WR383245-17F5-G RX 1 COIL, 1 LYR 13.9UH TDK Corporation	286	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	13.9µH	-	310mOhm	28 @ 100kHz	-	-	-	-	1.51" L x 1.27" W x 0.03" H (38.4mm x 32.3mm x 0.9mm)
WT545490-11K2-FS TX 1 COIL 2 LYR 8.9UH TDK Corporation	136	-	RFQ	Datasheet	WT	Tray	Not For New Designs	Transmitter	1 Coil, 2 Layer	8.9µH	-	60mOhm	104 @ 100kHz	-	-	-	-	2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm)
WT282890-16F2-G TX 1 COIL 2 LYR 7.4UH TDK Corporation	139	-	RFQ	Datasheet	WT	Tray	Active	Transmitter	1 Coil, 2 Layer	7.4µH	-	110mOhm	-	-	-	-	-	1.12" Dia x 0.10" H (28.4mm x 2.4mm)

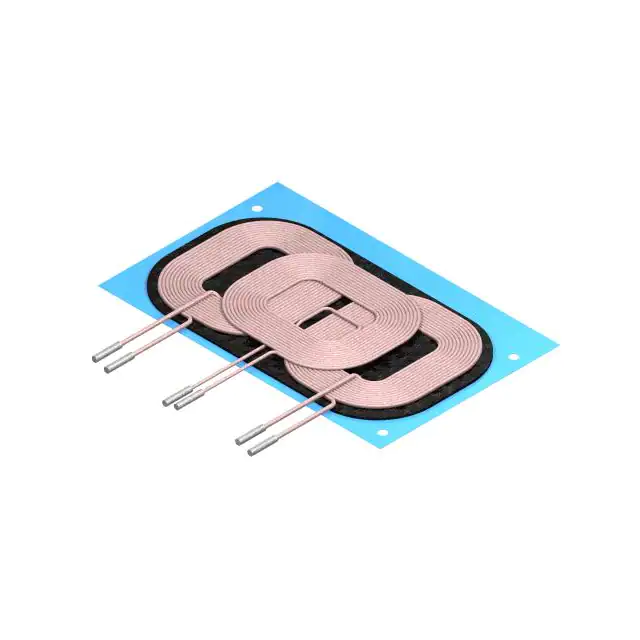

WT1005690-12F2-A6-G1 TX COIL UNIT TDK Corporation	148	-	RFQ	Datasheet	WT	Box	Active	-	-	-	-	-	-	-	-	-	-	-
760308110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	103	-	RFQ	Datasheet	WE-WPCC	Bulk	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	180 @ 125kHz	6A	10A	5MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)

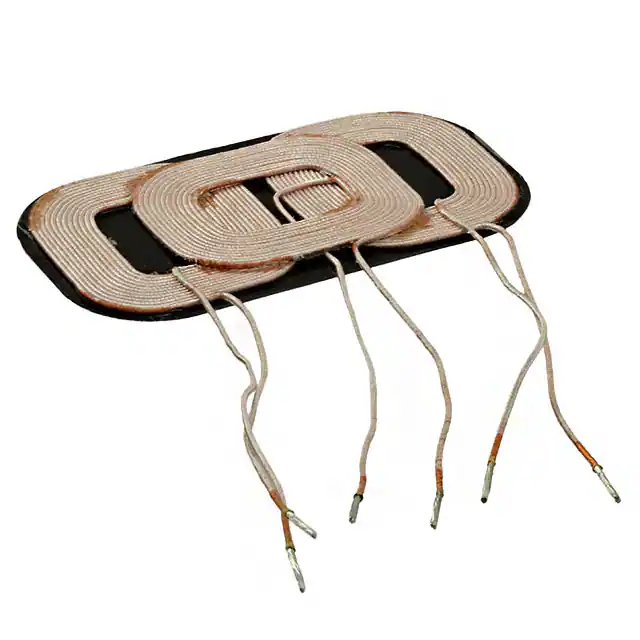

WT1005690-12K2-A6-G TX 3 COIL 1 LAYER 11.5 - 12.5UH TDK Corporation	103	-	RFQ	Datasheet	WT	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	11.5 ~ 12.5µH	-	80mOhm	-	-	-	-	-	3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)
IWTX5050DZEB6R3KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	232	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	90 @ 100kHz	10A	-	-	-40°C ~ 85°C	1.97" Dia x 0.16" H (50.0mm x 4.0mm)
WR464650-10K2-FS3 RX 1 COIL, 1 LYR 7.3UH TDK Corporation	133	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	7.3µH	-	70mOhm	-	-	-	-	-	1.81" L x 1.81" W x 0.12" H (46.0mm x 46.0mm x 3.0mm)
WR444025-17M6-G RX 1 COIL, 1 LYR 16.7UH TDK Corporation	237	-	RFQ	Datasheet	WR	Tray	Active	Receiver	1 Coil, 1 Layer	16.7µH	-	650mOhm	-	-	-	-	-	1.71" L x 1.56" W x 0.02" H (43.5mm x 39.5mm x 0.5mm)
IWTX5050FEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	1,300	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C	1.97" Dia x 0.26" H (50.0mm x 6.5mm)
IWAS3222CZEB190JR1 WIRELESS CHARGE RX RECT 19.6UH 1 Vishay Dale	425	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	19.6µH	±5%	357mOhm	28.5 @ 200kHz	1.2A	2.4A	-	-40°C ~ 105°C	1.26" L x 0.87" W x 0.12" H (32.0mm x 22.0mm x 3.0mm)
IWTX47R0DAEB6R3JR1 WIRELESS CHARGE TX ROUND 6.3UH 7 Vishay Dale	231	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C	1.85" Dia x 0.17" H (47.0mm x 4.2mm)
IWTX47R0EBEB240JR1 WIRELESS CHARGE TX ROUND 24UH 6A Vishay Dale	229	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.85" Dia x 0.21" H (47.0mm x 5.3mm)
IWTX4646DCEB240JR1 WIRELESS CHARGE TX SQUARE 24UH 6 Vishay Dale	219	-	RFQ	Datasheet	-	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±5%	75mOhm	185 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
