Wireless Charging Coils
Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

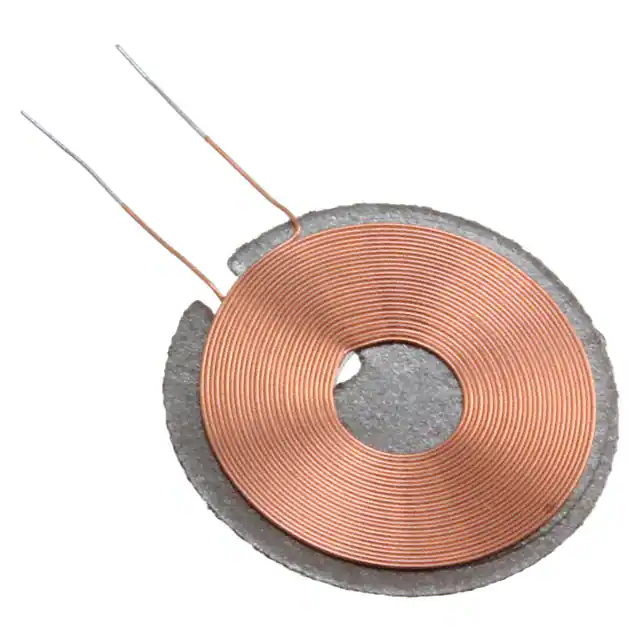

WR121210-27M8-IDRX 1 COIL 1 LYR 8.32UH |
3,181 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 8.32µH | ±5% | 950mOhm | - | - | - | - | - | 0.47" Dia x 0.01" H (12.0mm x 0.3mm) |
|
IWAS4832ABEB110JF1IWAS-4832AB-F1 11 5% EB E2 |
1,021 | - |
|
Datasheet | - | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.8µH | ±5% | 187mOhm | 60 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.7mm) |
|
760308101221WE-WPCC WIRELESS POWER CHARGING |
3,119 | - |
|
Datasheet | WE-WPCC | Bulk | Active | Receiver | 1 Coil, 6 Layer | 24µH | ±10% | 1.15Ohm Max | 16 @ 125kHz | 400mA | 1A | 10MHz | -20°C ~ 105°C | 0.24" Dia x 0.16" H (6.0mm x 4.0mm) |
|
760308101217RX 1 COIL 6 LAYER 24.2UH 400MA |
1,439 | - |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 24.2µH | ±10% | 1.4Ohm Max | 13 @ 125kHz | 400mA | 1A | 14.5MHz | -20°C ~ 105°C | 0.41" Dia x 0.07" H (10.3mm x 1.9mm) |
|
760308101216RX 1 COIL 6 LAYER 7.2UH 500MA |
2,241 | - |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 7.2µH | ±10% | 440mOhm Max | 10 @ 125kHz | 500mA | 1A | 32MHz | -20°C ~ 105°C | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) |
|
760308105309WE-WPCC WIRELESS POWER CHARGING |
3,639 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 450mOhm | 19 @ 125kHz | 1.5A | 3A | 18.5MHz | -20°C ~ 105°C | 1.035" Dia x 0.019" H (26.30mm x 0.49mm) |
|
760308101106WE-WPCC WIRELESS POWER CHARGING |
3,025 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 2.5µH | ±10% | 90mOhm | 30 @ 125kHz | 2.5A | 8A | 38MHz | -20°C ~ 105°C | 0.807" Dia x 0.110" H (20.50mm x 2.80mm) |
|

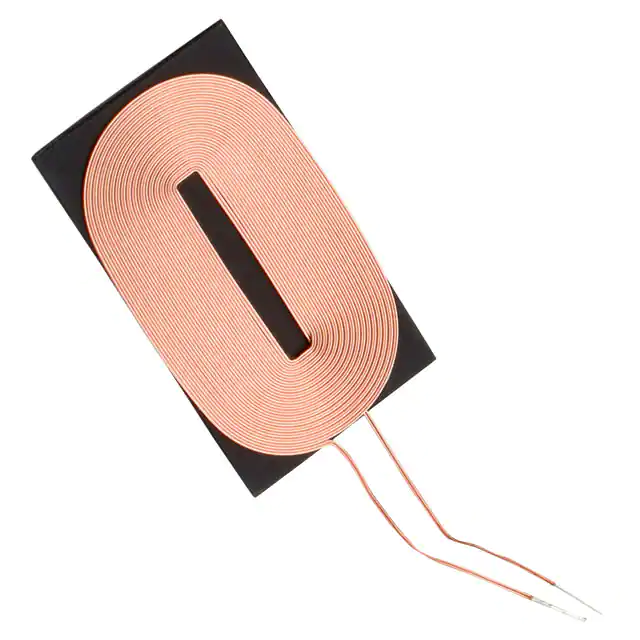

760308103206RX 1 COIL 1 LAYER 7.5UH 1.55A |
3,194 | - |
|
Datasheet | WE-WPCC | Box | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 340mOhm | 16 @ 125kHz | 1.55A | 3A | 23MHz | -20°C ~ 105°C | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm) |
|
760308102210RX 1 COIL 1 LAYER 7.5UH 3A |
4,523 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 180mOhm Max | 45 @ 125kHz | 3A | 6A | 22MHz | -20°C ~ 105°C | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
|
760308101107WE-WPCC WIRELESS POWER CHARGING |
3,974 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 315mOhm | 55 @ 125kHz | 2A | 8A | 7.5MHz | -20°C ~ 105°C | 1.220" Dia x 0.098" H (31.00mm x 2.50mm) |
|

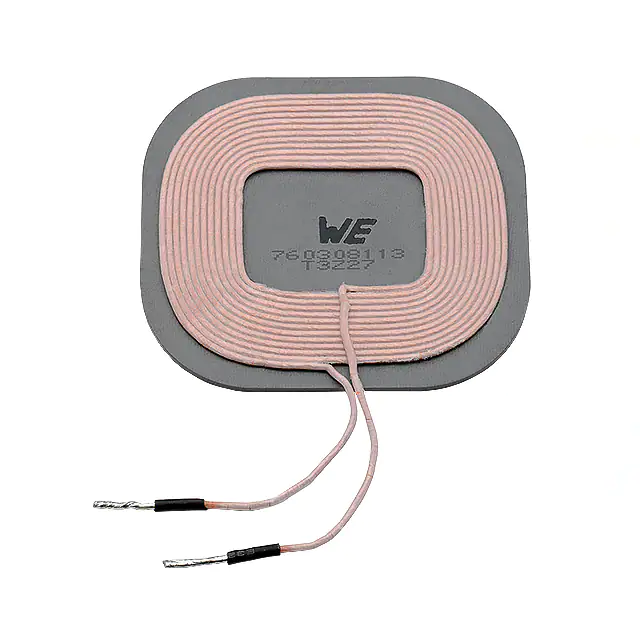

760308104113TX 1 COIL 1 LAYER 12UH 7A |
4,622 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 12µH | ±10% | 72mOhm Max | 120 @ 125kHz | 7A | 12A | 16MHz | -20°C ~ 105°C | 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm) |
|
760308102142TX 1 COIL 1 LYR BIFIL 5.8UH 18A |
1,957 | - |
|
Datasheet | WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 5.8µH | ±10% | 12mOhm Max | 100 @ 125kHz | 18A | 30A | 12MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
|
760308101311WE-WPCC WIRELESS POWER CHARGING |
4,532 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 5.8µH | ±10% | 14mOhm | 220 @ 125kHz | 21A | - | 13MHz | -20°C ~ 105°C | 2.76" Dia x 0.33" H (70.0mm x 8.5mm) |
|
WTSC-24R0K-A10SINGLE-COIL WIRELESS CHARGING CO |
1,152 | - |
|
Datasheet | WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 85mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|

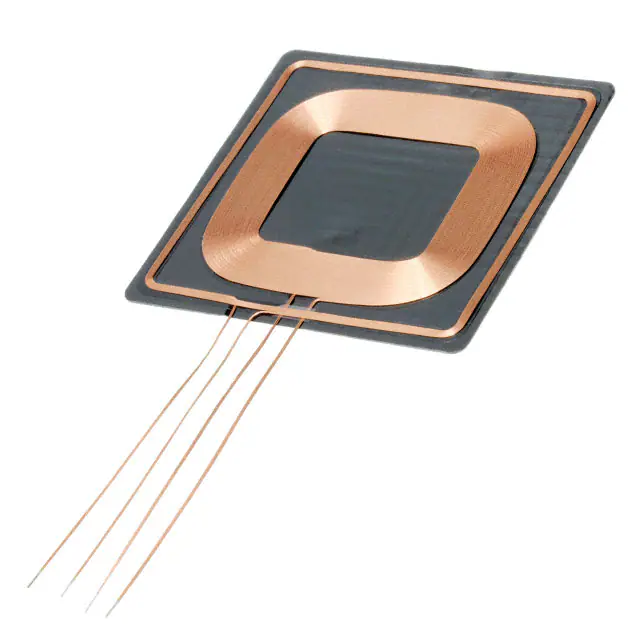

WR524830-16F3-NF-GRX 1 COIL, 1 LYR 19.5UH |
4,559 | - |
|
Datasheet | WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.5µH | - | 800mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm) |
|

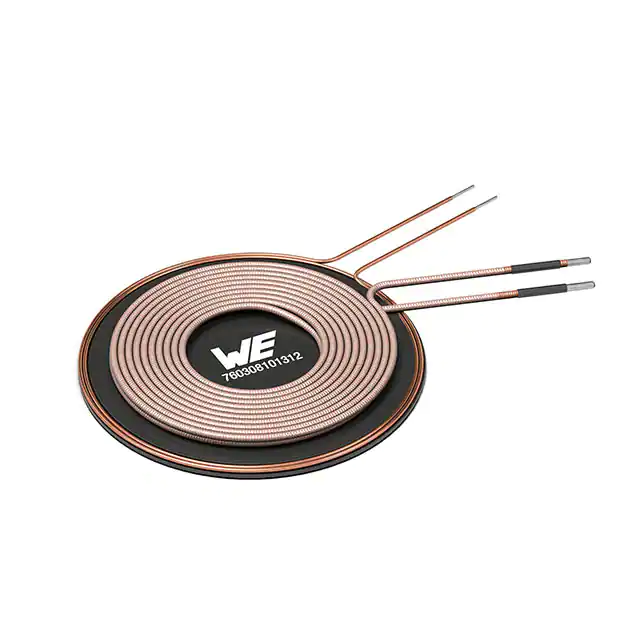

760308101312WE-WPCC WIRELESS POWER CHARGING |
2,259 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 24µH, 700nH | ±10% | 90mOhm, 30mOhm | 125 @ 125kHz, 30 @ 125kHz | 6A, 13A | - | 7MHz, 63MHz | -20°C ~ 105°C | 2.13" Dia x 0.16" H (54.0mm x 4.0mm) |
|
760308103307WE-WPCC WIRELESS POWER CHARGING |
1,580 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 7.8µH, 1.6µH | ±10% | 340mOhm Max, 90mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 1.5A, 4A | 3A, 7A | 22MHz, 24MHz | -20°C ~ 105°C | 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) |
|

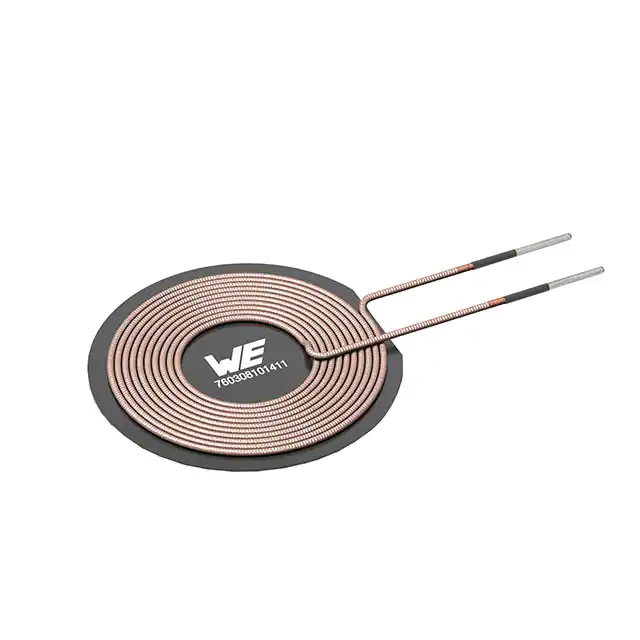

760308101411WE-WPCC WIRELESS POWER CHARGING |
1,612 | - |
|
Datasheet | WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm | 110 @ 125kHz | 7.5A | 10A | 20MHz | -20°C ~ 105°C | 1.97" Dia x 0.11" H (50.0mm x 2.8mm) |
|

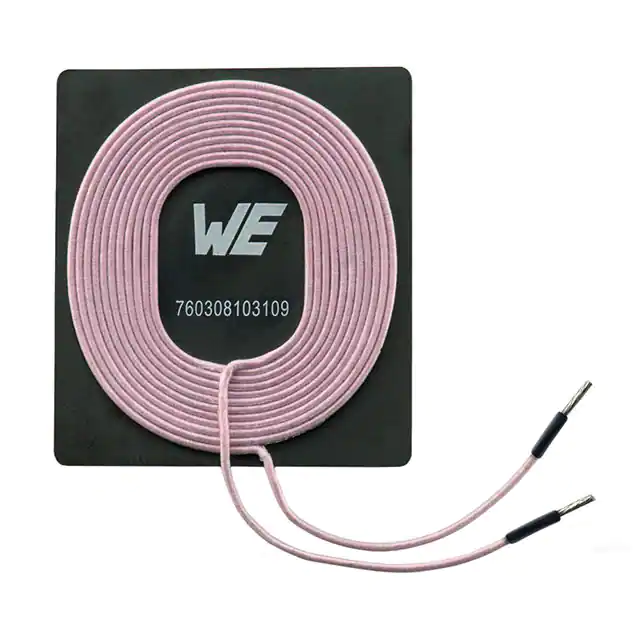

760308103109WE-WPCC WIRELESS POWER CHARGING |
3,403 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.2µH | ±10% | 50mOhm | 130 @ 125kHz | 9A | 18A | 11MHz | -20°C ~ 105°C | 2.244" L x 2.008" W x 0.165" H (57.00mm x 51.00mm x 4.20mm) |
|
760308102306WE-WPCC WIRELESS POWER CHARGING |
2,100 | - |
|
Datasheet | WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 8µH, 1.4µH | ±10% | 400mOhm Max, 100mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 2A, 5A | 5A, 5A | 17.5MHz, 19MHz | -20°C ~ 105°C | 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm) |
