DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

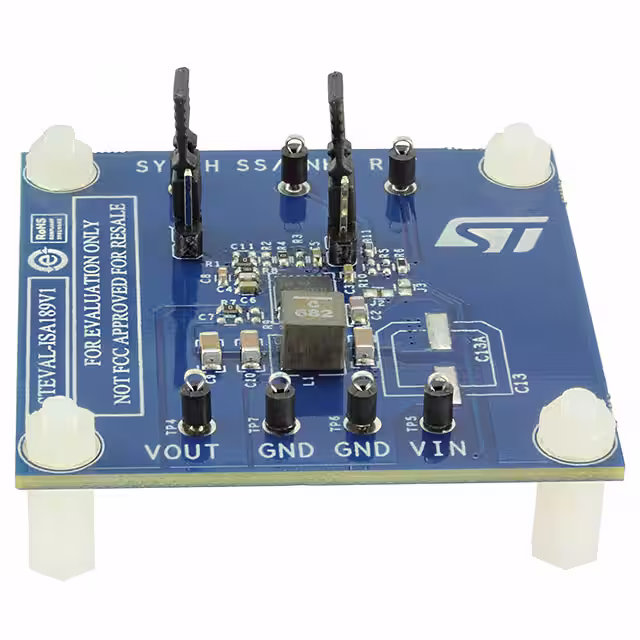

STEVAL-ISA189V1EVAL BOARD FOR A6986F5V |
1,915 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 4V ~ 38V | Buck | 500kHz | Board(s) | A6986F5V |
|

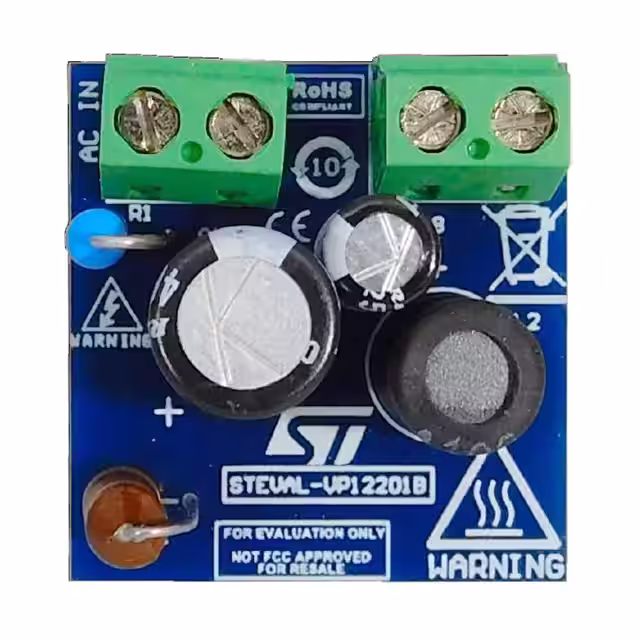

STEVAL-VP12201BEVAL BOARD FOR VIPER122 |
2,710 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 30 mW | 15V | 200mA | 85 ~ 265 VAC | Buck, Flyback | 60kHz | Board(s) | VIPER122 |
|

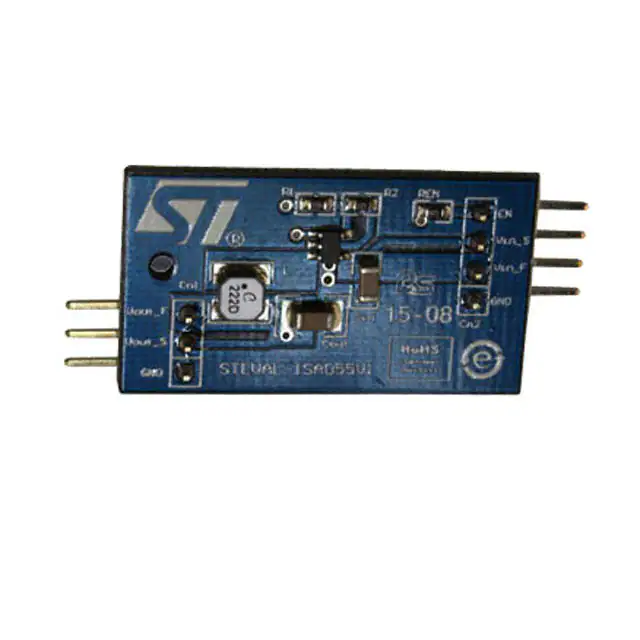

STEVAL-ISA055V1EVAL BOARD FOR ST1S12 |
3,585 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 700mA | 2.5V ~ 5.5V | Buck | 1.7MHz | Board(s) | ST1S12 |
|

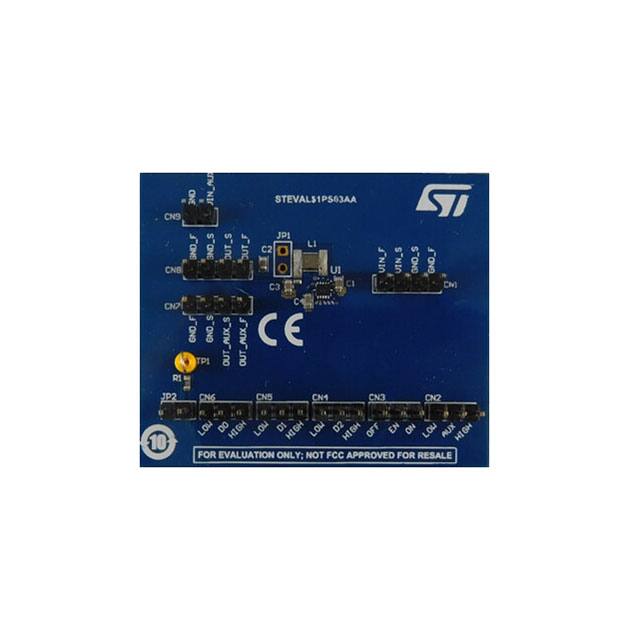

STEVAL-1PS03AEVAL BOARD FOR ST1PS03 |
2,109 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V ~ 3.3V | 400mA | 1.8V ~ 5.5V | Buck | 2MHz | Board(s) | ST1PS03 |
|
STEVAL-ISA100V1EVAL BOARD FOR L7986A |
2,110 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.5V ~ 38V | Buck | 250kHz | Board(s) | L7986A |
|

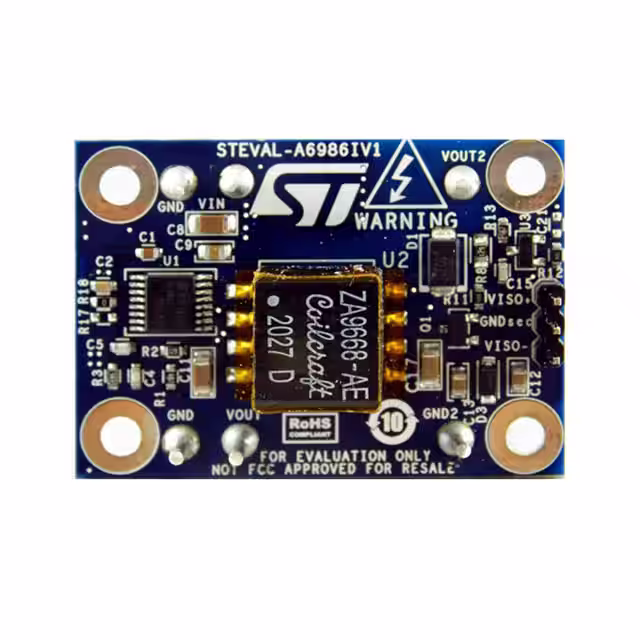

STEVAL-A6986IV1EVAL BOARD FOR A6986I |
4,630 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Isolated Outputs | 5 W | 2.9V ~ 3.6V | - | 4V ~ 38V | Buck | - | Board(s) | A6986I |
|

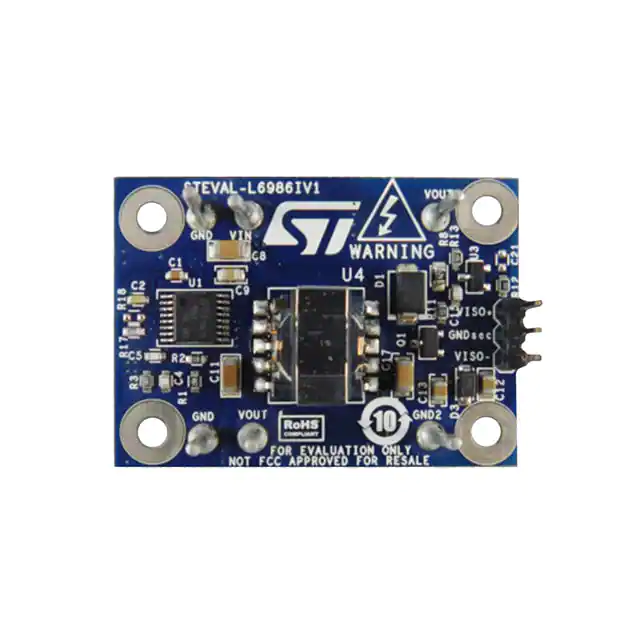

STEVAL-L6986IV1EVAL BOARD FOR A6986I |
4,460 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Isolated Outputs | 5 W | 2.9V ~ 3.6V | - | 4V ~ 38V | Buck | - | Board(s) | A6986I |
|
STEVAL-L6982CDREVAL BOARD FOR L6982CDR |
4,490 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V ~ 38V | 2A | 3.5V ~ 38V | Buck | 400kHz | Board(s) | L6982CDR |
|
STEVAL-L6981NDREVAL BOARD FOR L6981NDR |
1,139 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 1.5A | 3.5V ~ 38V | Buck | 400kHz | Board(s) | L6981NDR |
|

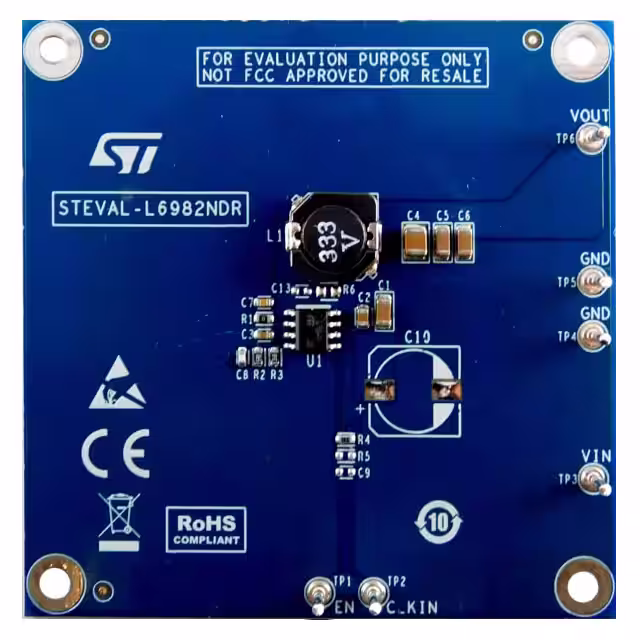

STEVAL-L6982NDREVAL BOARD FOR L6982NDR |
1,196 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V ~ 38V | 2A | 3.5V ~ 38V | Buck | 400kHz | Board(s) | L6982NDR |
DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards FAQ
How can I narrow the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
