DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Compare the current DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards Evaluation Boards selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STEVAL-ISA106V1EVAL BOARD FOR L5973A |
4,022 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 36V | Buck | 500kHz | Board(s) | L5973A |
|

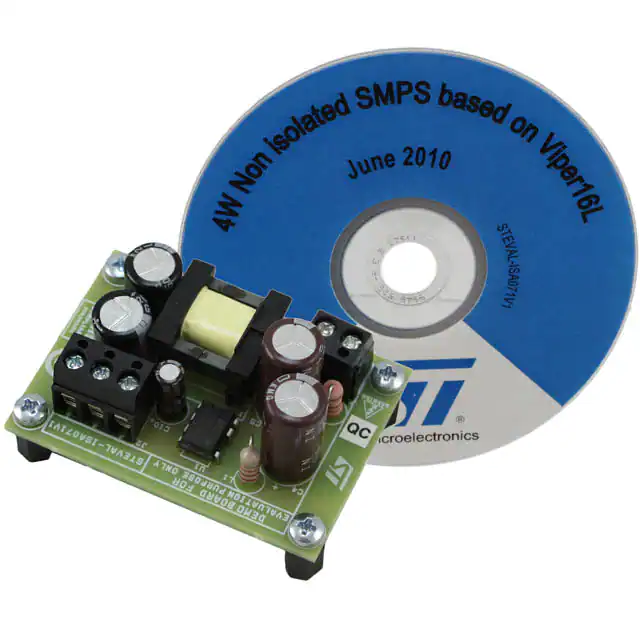

STEVAL-ISA071V2EVAL BOARD FOR VIPER16 |
3,237 | - |
|
Datasheet | VIPer™ plus | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | 4 W | -5V, 7V or 5V, 12V | 400mA, 160mA | 85 ~ 264 VAC | - | - | Board(s) | VIPer16 |
|

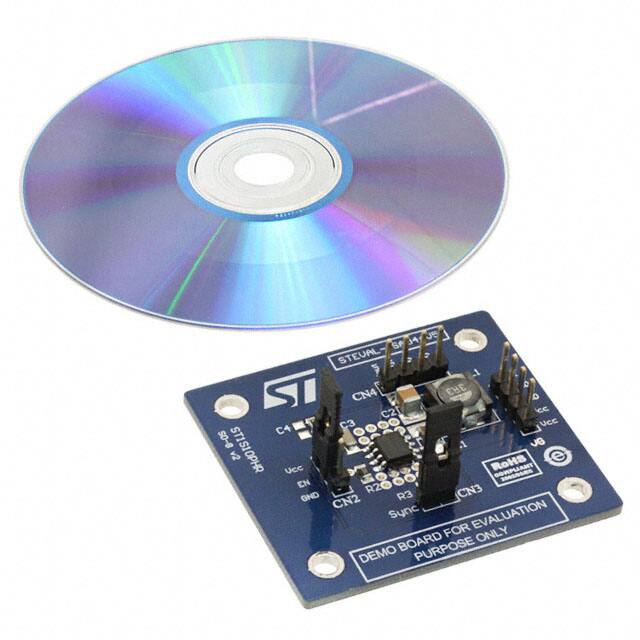

STEVAL-ISA044V5EVAL BOARD FOR ST1S10 |
4,632 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 2.5V ~ 18V | Buck | 900kHz | Board(s) | ST1S10 |
|

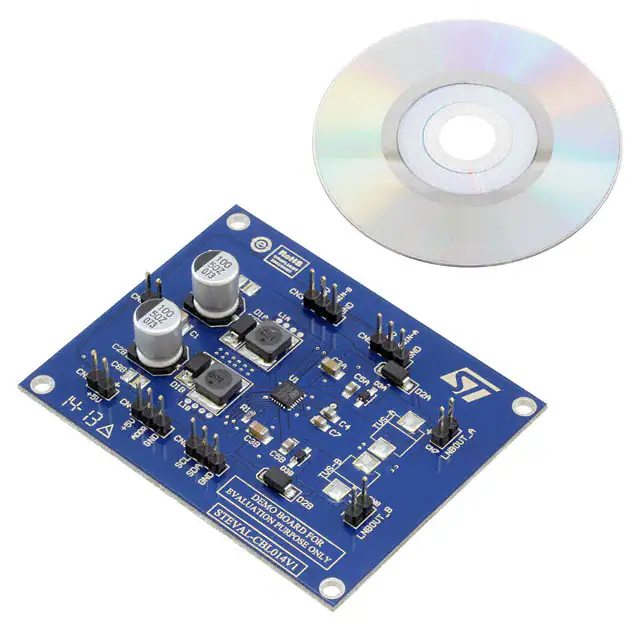

STEVAL-CBL014V1EVAL BOARD FOR LNBH26L |
4,556 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LNB | 2 Non-Isolated Outputs | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH26L |
|
STEVAL-ISA196V1EVAL BOARD FOR VIPER114LS |
3,183 | - |
|
Datasheet | VIPer™ plus | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 6 W | 5V | 1.2A | 85 ~ 265 VAC | Flyback | - | Board(s) | VIPer114LS |
|
STEVAL-ISA158V1EVAL BOARD FOR A6986 |
3,004 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 38V | Buck | - | Board(s) | A6986 |
|

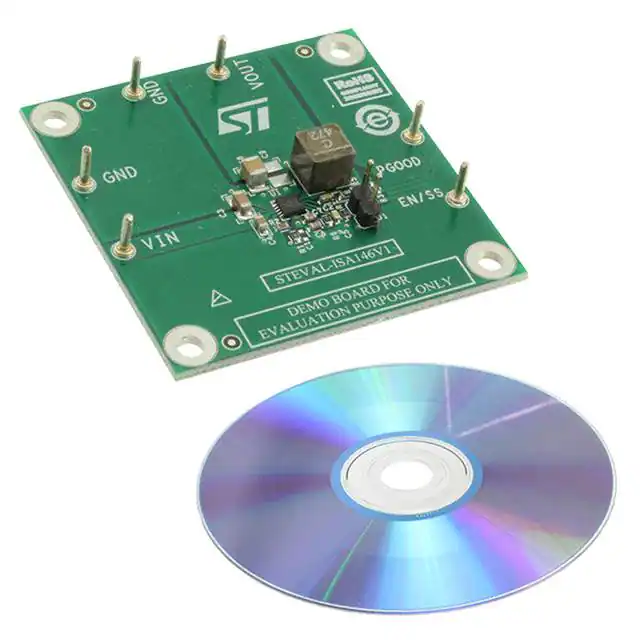

STEVAL-ISA146V1EVAL BOARD FOR ST1S50 |
1,459 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4V ~ 18V | Buck | 500kHz | Board(s) | ST1S50 |
|
STEVAL-ISA088V1EVAL BOARD FOR L5970D |
2,527 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.4V ~ 25V | Buck | 250kHz | Board(s) | L5970D |
|
STEVAL-ISA141V1EVAL BOARD FOR STBB3J |
1,946 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 2A, 800mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | STBB3J |
|
|
STEVAL-ISA141V2EVAL BOARD FOR STBB3JCC |
1,148 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.5V | 2A, 800mA | 1.8V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | STBB3JCC |
