Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension

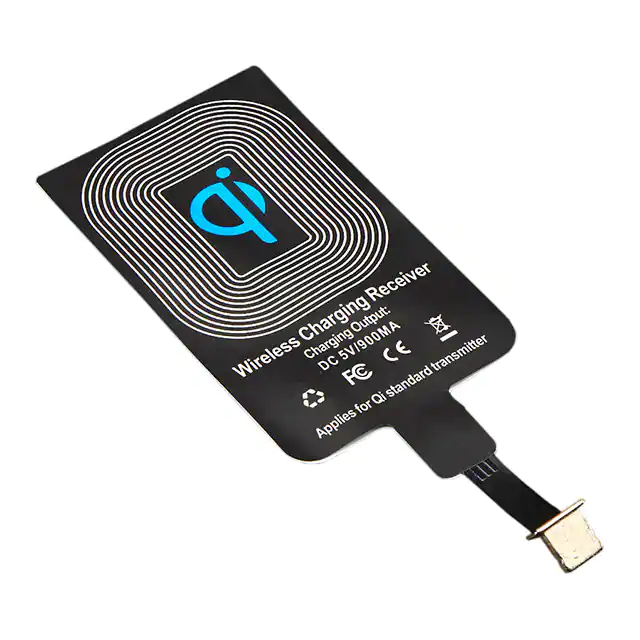

2677 QI WIRELESS CHARGING RECEIVER Adafruit Industries LLC	1,883	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	-	-	-	-	3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm)
QPT-0003 Transmitter QST	3,453	-	RFQ	Datasheet	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	100 @ 100kHz	-	-	-	0°C ~ 40°C	2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm)
QPT-0039A Transmitter QST	2,614	-	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	35mOhm	65 @ 100kHz	-	-	-	0°C ~ 40°C	1.97" Dia x 0.09" H (50.0mm x 2.3mm)

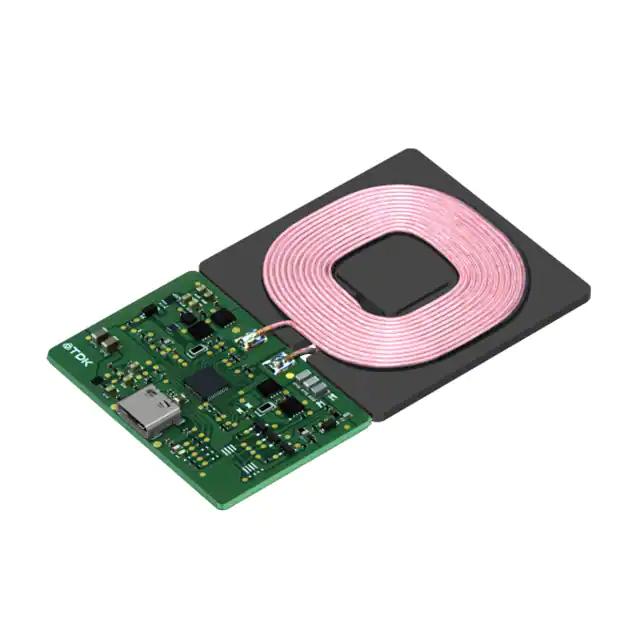

WTM905525-12F2-12V-G WIRELESS POWER TRANSFER TX COIL TDK Corporation	1,713	-	RFQ	Datasheet	WTM	Box	Obsolete	Transmitter	1 Coil, 1 Layer	-	-	-	-	-	-	-	-	3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm)

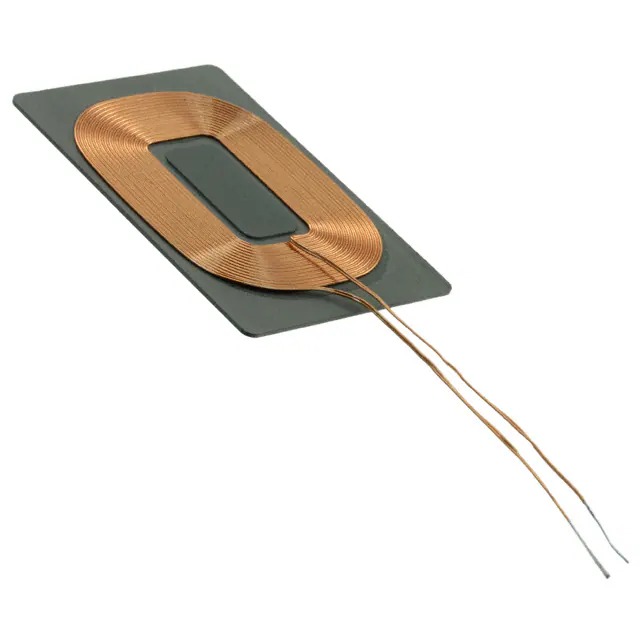

IWAS4832FFEB9R7J50 RX 1 COIL 1 LAYER BIFILAR 9.7UH Vishay Dale	3,723	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	9.7µH	±5%	200mOhm	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
IWAS3827ECEB100J50 RX 1 COIL 1 LAYER 10.7UH Vishay Dale	4,475	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	10.7µH	±5%	183mOhm	30 @ 200kHz	-	-	-	-	1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm)

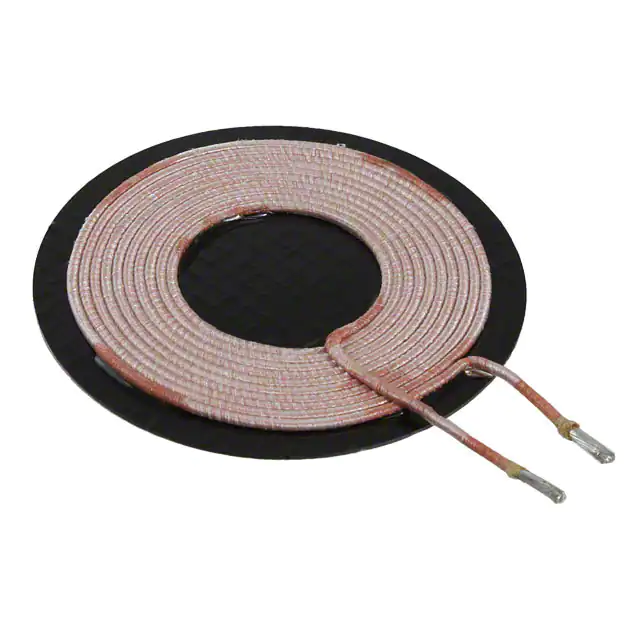

WT-505060-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	2,210	-	RFQ	Datasheet	WT	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	60mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C	1.97" Dia x 0.13" H (50.0mm x 3.4mm)

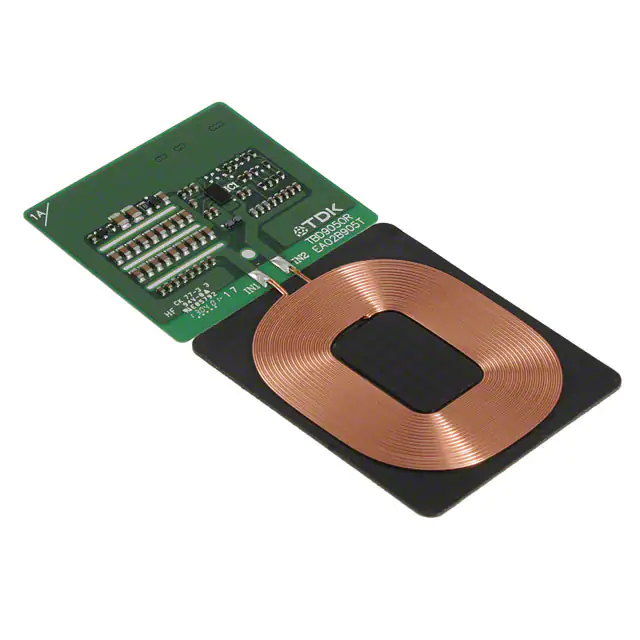

TMX-66-2M7 RX 1 COIL 1 LYR TDK Corporation	4,622	-	RFQ	Datasheet	-	Tray	Obsolete	Receiver	1 Coil, 1 Layer	-	-	-	24 @ 100kHz	-	-	-	-	1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm)
WR-483250-15M2-G RX 1 COIL 1 LYR BIFILAR 10.5UH TDK Corporation	3,483	-	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	10.5µH	±5%	200mOhm Max	-	-	-	-	-30°C ~ 70°C	1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm)

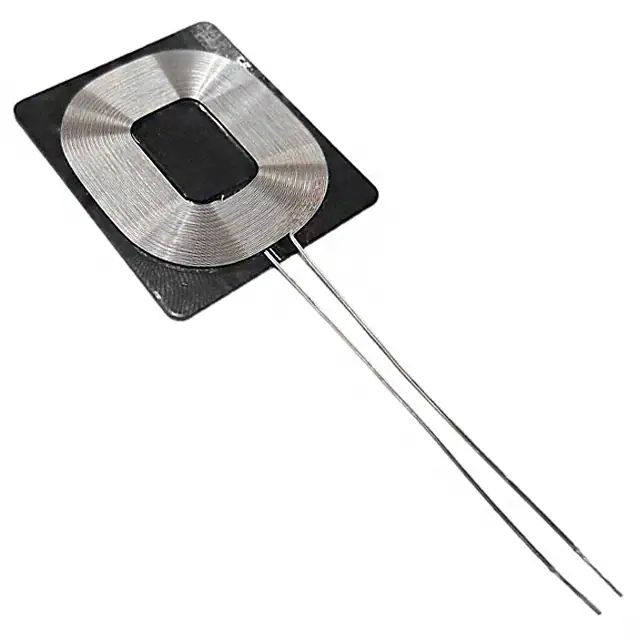

WR-383250-17M2-G RX 1 COIL 1 LYR BIFILAR 11.1UH TDK Corporation	2,546	-	RFQ	Datasheet	WR	Tray	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	11.1µH	±5%	270mOhm Max	-	-	-	-	-30°C ~ 70°C	1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm)
AWCCA-48R32H11-C01-B RX 1 COIL 1 LAYER 10.5UH 2.6A Abracon LLC	1,285	-	RFQ	Datasheet	AWCCA-48R32	Box	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	190mOhm	28 @ 100kHz	2.6A	15A	11MHz	-25°C ~ 85°C	1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm)

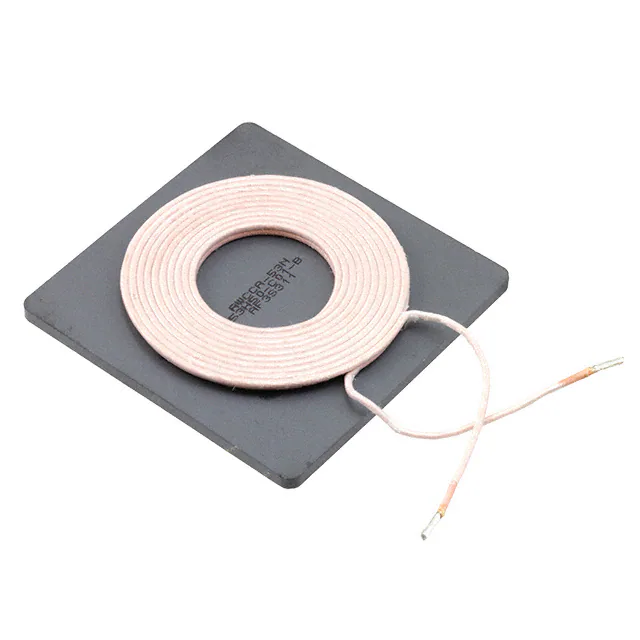

AWCCA-53N53H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	1,788	-	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	170 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)

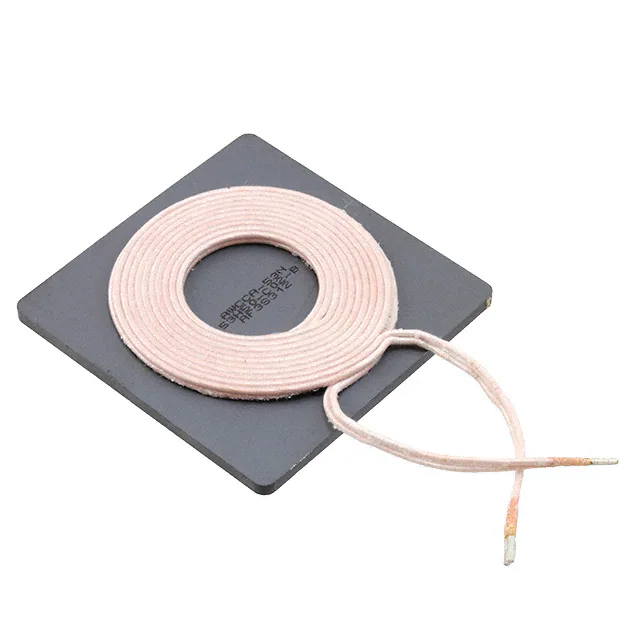

AWCCA-53N53H50-C02-B RX TX 1 COIL 1 LAYER 6.3UH 11A Abracon LLC	4,086	-	RFQ	Datasheet	AWCCA-53N53	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	66 @ 100kHz	11A	40A	6.4MHz	-25°C ~ 85°C	2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)

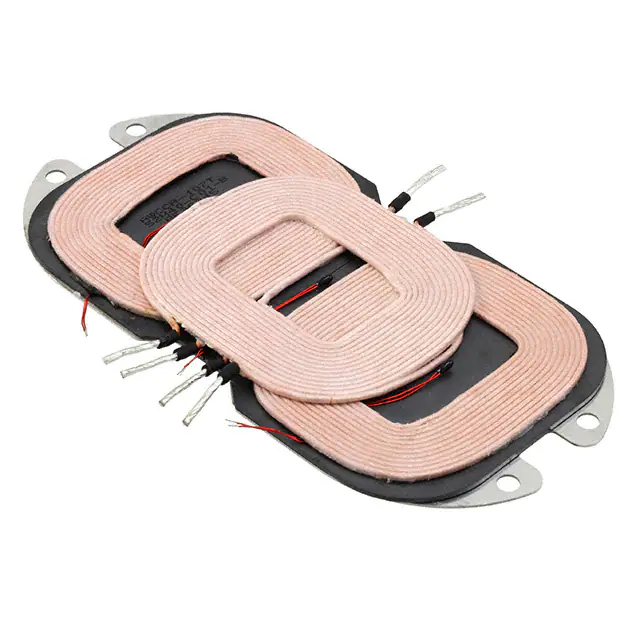

AWCCA-107T52H40-C01-B TX 3 COIL 1 LAYER 11.5UH 12UH Abracon LLC	2,065	-	RFQ	Datasheet	AWCCA-107T52	Box	Discontinued at Digi-Key	Transmitter	3 Coil, 1 Layer	11.5µH, 12µH	±10%	56mOhm	80 @ 100kHz	7.5A	18A	7MHz	-25°C ~ 85°C	4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm)
IWAS4832ECEB160J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	1,069	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm Max	30 @ 200kHz	-	-	-	-	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm)
IWAS4832FEEB150J50 RX 1 COIL 1 LAYER 16.2UH Vishay Dale	2,148	-	RFQ	Datasheet	-	Bag	Obsolete	Receiver	1 Coil, 1 Layer	16.2µH	±5%	366mOhm	30 @ 200kHz	-	-	-	-	-
SWC4242KB120-100 RX 1 COIL 1 LAYER 12.5UH Laird-Signal Integrity Products	2,536	-	RFQ	Datasheet	SWC	Box	Active	Receiver	1 Coil, 1 Layer	12.5µH	±10%	240mOhm Max	20 @ 100kHz	-	-	-	-40°C ~ 85°C	1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm)
WRM483245-15F5-5V-G1 RX 1 COIL 1 LYR 13UH TDK Corporation	1,236	-	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-

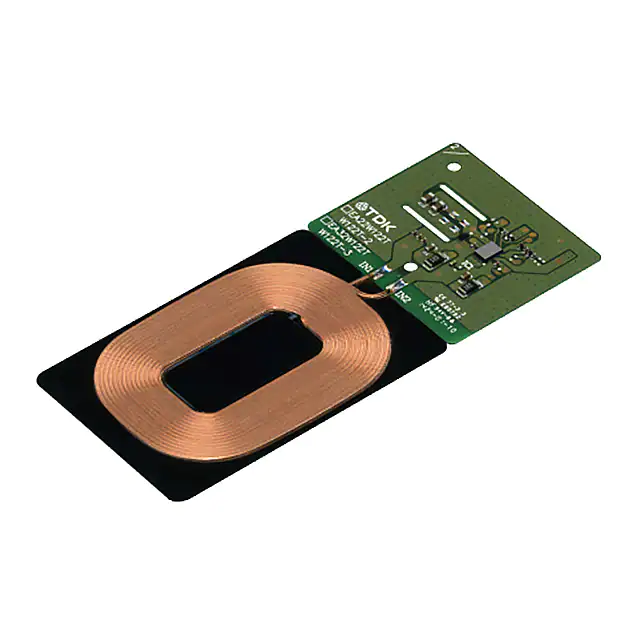

WRM483245-15F5-5V-G2 RX 1 COIL 1 LYR 13UH TDK Corporation	1,573	-	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm Max	-	-	-	-	-	-

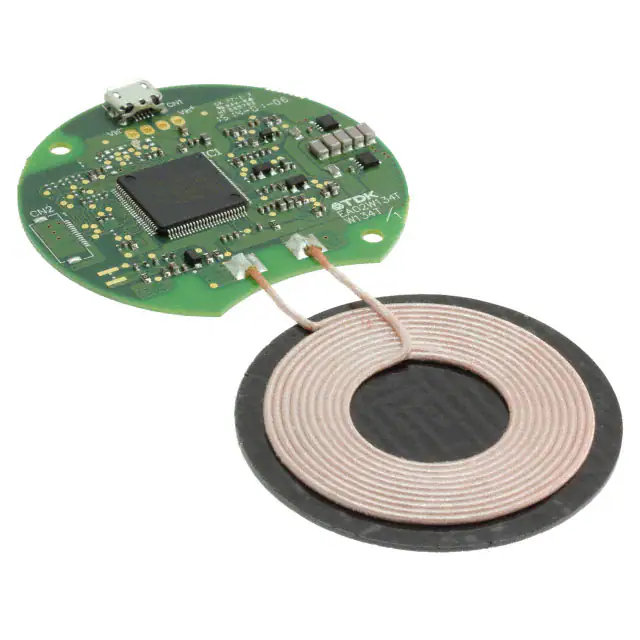

WTM505090-10K2-5V-G1 TX 1 COIL 1 LYR 6.3UH TDK Corporation	3,155	-	RFQ	Datasheet	WTM	Tray	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm Max	-	-	-	-	-	-

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
