Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension

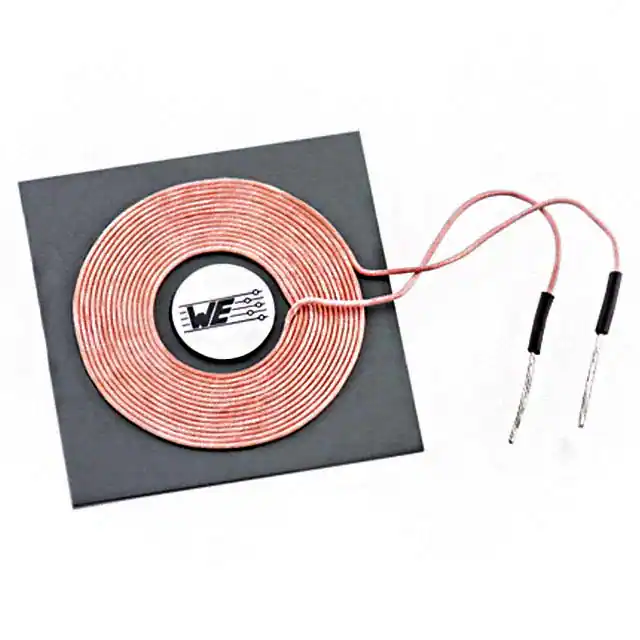

760308201 RX 1 COIL 1 LAYER 10UH 4.5A Würth Elektronik	3,284	-	RFQ	Datasheet	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	10µH	±5%	200mOhm Max	50 @ 125kHz	3.5A	8A	15MHz	-20°C ~ 105°C	1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm)
AWCCA-TX1005545-F002 WIRELESS CHARGING COIL Abracon LLC	2,121	-	RFQ	Datasheet	AWCCA	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	75mOhm	90 @ 100kHz	-	-	-	-25°C ~ 85°C	3.94" L x 2.17" W x 0.18" H (100.0mm x 55.0mm x 4.5mm)
1461794011 RX TX 2 COIL 1 LAYER 9.6UH 5.6UH Molex	3,754	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Tray	Active	Receiver, Transmitter	2 Coil, 1 Layer	9.6µH, 5.6µH	±2%	550mOhm, 38mOhm	18 @ 200kHz, 160 @ 200kHz	-	-	-	-	1.06" Dia x 0.15" H (27.0mm x 3.7mm)
1461798021 RX 1 COIL 1 LAYER 4UH Molex	3,408	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	4µH	±2%	235mOhm	115 @ 6.78MHz	-	-	-	-	1.38" Dia x 0.02" H (35.0mm x 0.6mm)
1461794001 RX 2 COIL, 1 LYR 8.9UH Molex	4,776	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	2 Coil, 1 Layer	8.9µH	±2%	350mOhm	25 @ 200kHz	-	-	-	-	2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm)

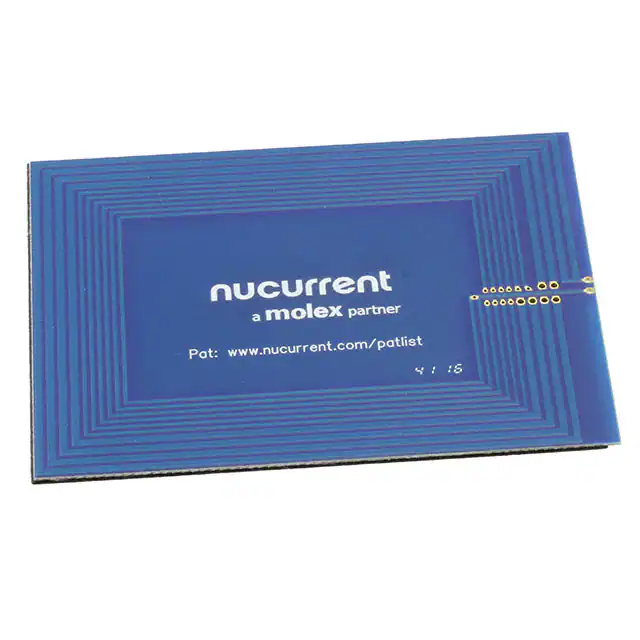

1461798001 RX 1 COIL 1 LAYER 2.9UH Molex	4,660	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	2.9µH	±2%	120mOhm	160 @ 6.78MHz	-	-	-	-	2.24" L x 2.86" W x 0.04" H (56.8mm x 72.8mm x 1.0mm)
RWC5353EJ240-500 TX 1 COIL 2 LAYER 24UH 5.5A Laird-Signal Integrity Products	3,971	-	RFQ	Datasheet	RWC	Box	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	75mOhm Max	90 @ 100kHz	5.5A	10A	-	-40°C ~ 125°C	2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm)
1461790001 RX 1 COIL 1 LAYER 17.3UH Molex	4,874	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	17.3µH	±2%	450mOhm	-	-	-	-	-	1.69" L x 1.97" W x 0.02" H (43.0mm x 50.0mm x 0.5mm)
CTTX505035BF-6R3K WIRELESS TRANSMITTER COIL Central Technologies	3,665	-	RFQ	Datasheet	CTTX505035BF	Bulk	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	25mOhm	-	10A	-	-	-40°C ~ 85°C	1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm)

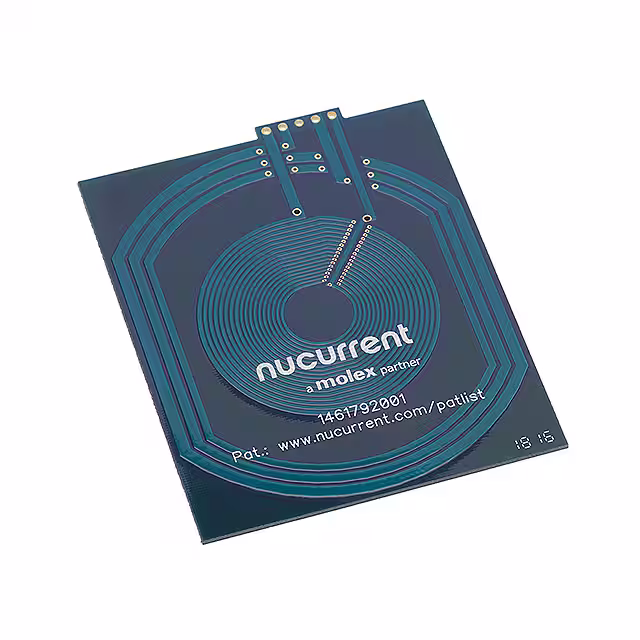

1461792001 RX 2 COIL 1 LAYER 10.6UH Molex	3,458	-	RFQ	Datasheet	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	2 Coil, 1 Layer	10.6µH	±2%	190mOhm	24 @ 200kHz	-	-	-	-	2.55" L x 2.11" W x 0.06" H (64.7mm x 53.6mm x 1.4mm)
WT1005690-11F2-M9-G TX COIL UNIT TDK Corporation	1,668	-	RFQ	Datasheet	WT	Box	Active	-	-	-	-	-	-	-	-	-	-	-
STX106530612R5KT 3 COIL 1 LAYER 12.5UH, 11.5UH, 1 Superworld Electronics (S) Pte. Ltd.	4,947	-	RFQ	Datasheet	STX	Bulk	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	80mOhm Max	-	6.5A	-	-	-40°C ~ 85°C	4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)
WRM483245-15F5-5V-G RX 1 COIL 1 LYR 13UH TDK Corporation	4,966	-	RFQ	Datasheet	WRM	Tray	Obsolete	Receiver	1 Coil, 1 Layer	13µH	-	270mOhm	-	-	-	-	-	2.99" L x 1.26" W x 0.04" H (76.0mm x 32.0mm x 1.0mm)

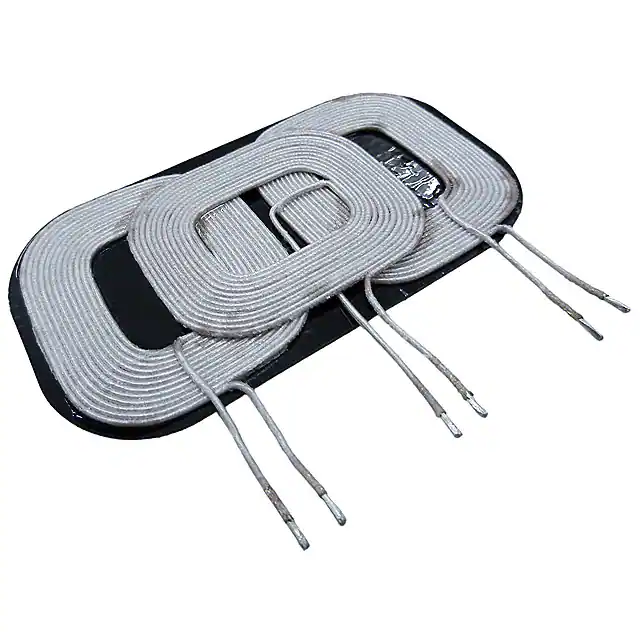

WT-1005660-12K2-A6-G TX 3 COIL 1 LYR 12.5UH/11.5UH TDK Corporation	2,826	-	RFQ	Datasheet	WT	Tray	Not For New Designs	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	80mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C	3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm)

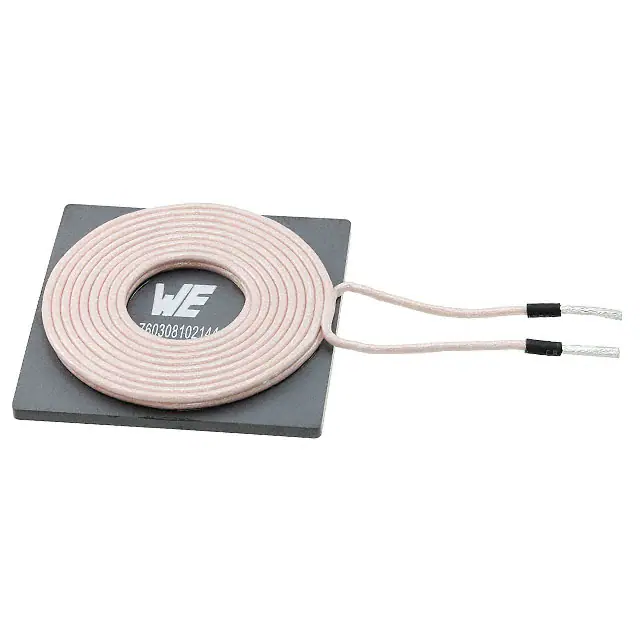

760308102144 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,235	-	RFQ	Datasheet	WE-WPCC	Box	Obsolete	Transmitter	1 Coil, 2 Layer	19.5µH	±10%	45mOhm Max	220 @ 125kHz	9.5A	20A	5MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm)
QPT-6071A TRANSMITTER QST	3,939	-	RFQ	Datasheet	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	380mOhm Max	65 @ 100kHz	-	-	-	0°C ~ 40°C	1.97" Dia x 0.09" H (50.0mm x 2.3mm)
2114 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,696	-	RFQ	Datasheet	-	Bulk	Active	Receiver	-	-	-	-	-	600mA	-	-	-	-
2115 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	4,777	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-
2116 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,797	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-
2117 UNIVERSAL QI WIRELESS CHARGING M Adafruit Industries LLC	1,655	-	RFQ	Datasheet	-	Bulk	Obsolete	Receiver	-	-	-	-	-	600mA	-	-	-	-

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
