Wireless Charging Coils

Browse available Wireless Charging Coils components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Function	Type	Inductance	Tolerance	DC Resistance (DCR)	Q @ Freq	Current Rating (Amps)	Current - Saturation (Isat)	Frequency - Self Resonant	Operating Temperature	Size / Dimension

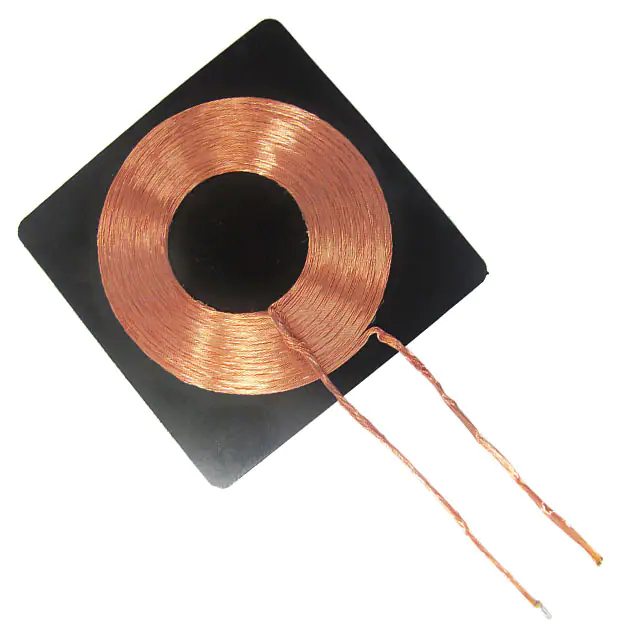

AWCCA-50N50H16-C51-B RX TX 1 COIL 1 LAYER 12.5UH Abracon LLC	2,059	-	RFQ	Datasheet	AWCCA	Box	Discontinued at Digi-Key	Receiver, Transmitter	1 Coil, 1 Layer	12.5µH	±10%	80mOhm	80 @ 100kHz	-	-	-	-25°C ~ 85°C	1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm)
AWCCA-47R38H08-C01-B RX 1 COIL 1 LAYER 11.5UH Abracon LLC	3,829	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	11.5µH	±5%	160mOhm	34 @ 100kHz	-	-	-	-25°C ~ 85°C	1.85" L x 1.50" W x 0.03" H (47.0mm x 38.0mm x 0.9mm)

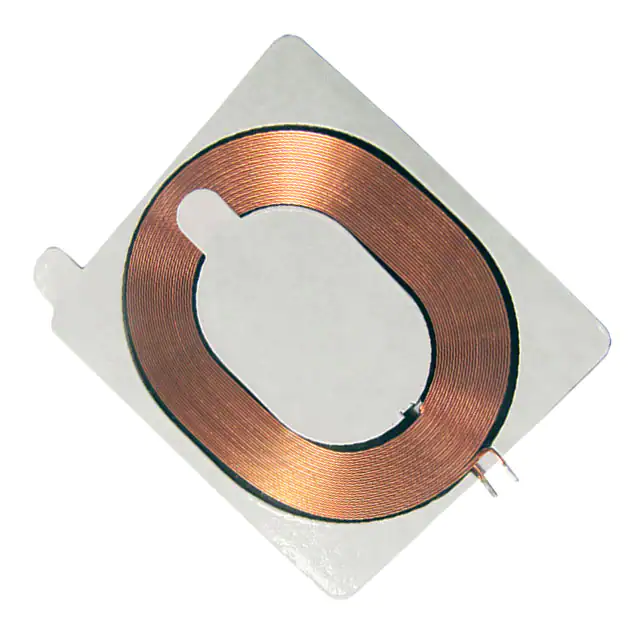

AWCCA-42R38H08-C03-B RX 1 COIL 1 LAYER 12UH Abracon LLC	3,970	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	12µH	±5%	350mOhm	28 @ 100kHz	-	-	-	-25°C ~ 85°C	1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm)

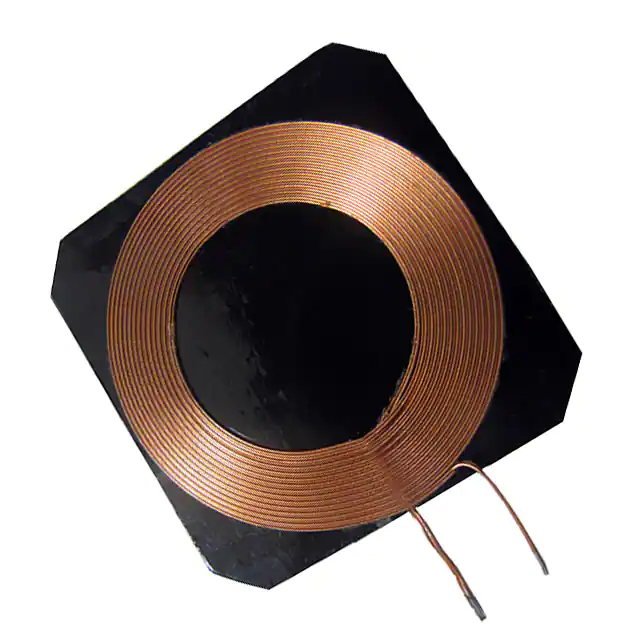

AWCCA-36R36H08-C51-B RX 1 COIL 1 LAYER 12UH Abracon LLC	3,362	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	350mOhm	27 @ 100kHz	-	-	-	-25°C ~ 85°C	1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm)
AWCCA-12R12H11-C01-B RX 1 COIL 1 LAYER 8UH Abracon LLC	3,902	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	8µH	±10%	520mOhm	10 @ 100kHz	-	-	-	-25°C ~ 85°C	0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm)
AWCCA-50N50H30-C21-B RX TX 1 COIL 1 LAYER 6.3UH Abracon LLC	4,425	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	38mOhm	90 @ 100kHz	-	-	-	-25°C ~ 85°C	1.97" Dia x 0.12" H (50.0mm x 3.0mm)
AWCCA-98T56H38-C01-B TRANSMITTER 3 COIL 1 LAYER Abracon LLC	1,421	-	RFQ	Datasheet	AWCCA	Box	Active	Transmitter	3 Coil, 1 Layer	12.0µH, 11.5µH, 12.0µH	±10%	56mOhm	120 @ 100kHZ, 110 @ 100kHZ	-	-	-	-25°C ~ 85°C	3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm)
IWTX47R0BEEB6R3J11 WIRELESS CHARGING COIL Vishay Dale	4,828	-	RFQ	Datasheet	-	Bulk	Obsolete	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	38mOhm	190 @ 200kHz	7A	22A	22MHz	-55°C ~ 105°C	1.85" Dia x 0.19" H (47.0mm x 4.9mm)
AWCCA-30R30H05-C01-B RECEIVER COIL, 1 COIL, 29.5UH Abracon LLC	2,879	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	29.5µH	±10%	1.8mOhm	10.4 @ 100kHz	-	-	-	-25°C ~ 85°C	1.18" Dia x 0.02" H (30.0mm x 0.5mm)
AWCCA-28R15H08-C01-B RECEIVER COIL, 1 COIL, 7.5UH Abracon LLC	2,910	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver	1 Coil, 1 Layer	7.5µH	±10%	500mOhm	15 @ 100kHz	-	-	-	-25°C ~ 85°C	1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm)
AWCCA-30N30H20-C01-B RECEIVER COIL, 1 COIL, 6.3UH Abracon LLC	4,913	-	RFQ	Datasheet	AWCCA	Box	Active	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	140mOhm	26 @ 100kHz	-	-	-	-25°C ~ 85°C	1.18" Dia x 0.08" H (30.0mm x 2.0mm)
WRM483265-10F5-12V-G WIRELESS POWER TRANSFER RX COIL TDK Corporation	2,836	-	RFQ	Datasheet	WRM	Box	Obsolete	Receiver	1 Coil, 1 Layer, Bifilar	-	-	-	-	1.25A	-	-	-30°C ~ 70°C	3.02" L x 1.29" W x 0.07" H (76.7mm x 32.7mm x 1.8mm)
QPT-0035 15W TRANSMITTER MODULE QST	2,440	-	RFQ	Datasheet	-	Box	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	50mOhm	40 @ 100kHz	-	-	-	-	2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm)
L41200R02 48UH Q = 19 TYPICAL AT 125KHZ WI ITG Electronics, Inc.	2,694	-	RFQ	Datasheet	-	Tray	Active	Receiver	1 Coil, 1 Layer	48µH	-	-	19 @ 125kHz	-	-	-	-40°C ~ 105°C	1.20" L x 1.40" W x 0.08" H (30.5mm x 35.5mm x 2.0mm)
WMRR126F-0 WIRELESS CHARGE COIL Pulse Electronics	1,152	-	RFQ	Datasheet	-	Bag	Active	Receiver	1 Coil, 1 Layer	11.5µH	±10%	1.1mOhm	-	-	-	-	-	1.02" L x 0.75" W x 0.02" H (26.0mm x 19.0mm x 0.4mm)
CTRX103010BF-12R8K WIRELESS RECEIVER COIL Central Technologies	4,678	-	RFQ	Datasheet	CTRX103010BF	Bulk	Active	Receiver	1 Coil, 2 Layer	12.8µH	±10%	780mOhm Max	-	800mA	-	-	-40°C ~ 85°C	1.18" L x 0.39" W x 0.04" H (30.0mm x 10.0mm x 1.0mm)
CTTX504424SF-6R3K WIRELESS TRANSMITTER COIL Central Technologies	2,933	-	RFQ	Datasheet	CTTX504424SF	Bulk	Active	Transmitter	1 Coil, 1 Layer, Bifilar	6.3µH	±10%	45mOhm	-	5A	-	-	-40°C ~ 85°C	1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm)
QPT-0014 Transmitter QST	3,632	-	RFQ	Datasheet	-	Tape & Box (TB)	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	30mOhm	40 @ 100kHz	-	-	-	-	1.97" Dia x 0.09" H (50.0mm x 2.3mm)
CTTX505024SF-6R3K WIRELESS TRANSMITTER COIL Central Technologies	3,084	-	RFQ	Datasheet	CTTX505024SF	Bulk	Active	Transmitter	1 Coil, 1 Layer, Bifilar	6.3µH	±10%	45mOhm	-	5A	-	-	-40°C ~ 85°C	1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm)
CTRX324517SF-140K WIRELESS RECEIVER COIL Central Technologies	2,185	-	RFQ	Datasheet	CTRX324517SF	Bulk	Active	Receiver	1 Coil, 1 Layer	14µH	±10%	355mOhm	-	1.2A	-	-	-40°C ~ 85°C	1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm)

Wireless Charging Coils FAQ

What Wireless Charging Coils components can I source from EGOO?

You can browse available Wireless Charging Coils product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Wireless Charging Coils parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
